Baron CONNECT Conveyor 6m long 240v

Baron 6000 CONNECT Conveyor (6m Unit) – Part No. 35007

The Baron 6000 CONNECT Conveyor (Part No. 35007) is a heavy-duty, portable conveying solution engineered for professional construction, demolition, landscaping, and excavation work. Operating on a single-phase 240V power supply, it incorporates an internal frequency converter that powers a robust 0.55 kW motor, delivering high torque and smooth operation.

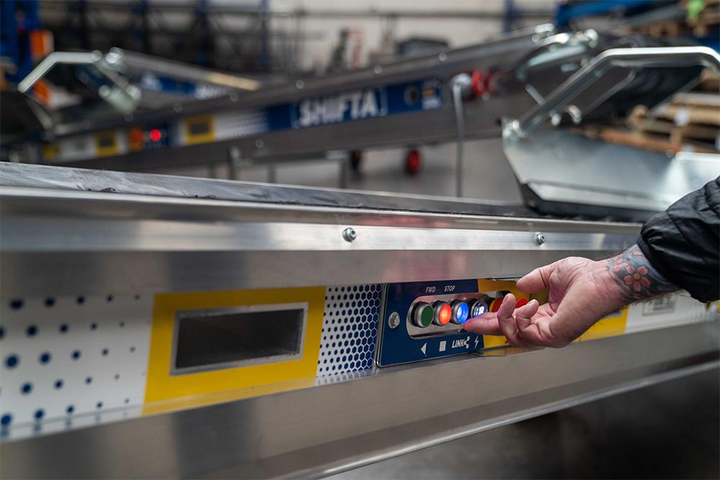

Equipped with an intelligent control box, the CONNECT series can operate as a standalone unit or seamlessly link in series with up to four conveyors using a single CONNECT cable to daisy-chain power and control across the line.

Key Features & Benefits

• Series Connectivity (Master/Slave Mode): Easily connect up to 4 units in series. A single operator can manage the start, stop, and speed of the entire line from the master unit.

• Variable Speed Control: Speed can be fine-tuned between 20 cm/s and 80 cm/s via an onboard potentiometer to match the pace of your loading equipment or team.
• Bi-Directional Running: Features a forward/reverse switch on the control box, allowing you to move materials in either direction without repositioning the conveyor.
• High Durability & Safety: Built with an enclosed side profile that delivers high load capacity (up to 200 kg maximum pulling power) while shielding internal components from debris and ensuring job site safety.
• Lightweight & Portable Design: Weighing 103 kg, the aluminum chassis makes it easy to transport, position in tight access areas, and set up in basements, trenches, or upper levels.

Technical Specifications
