Description
| Belt Width | 400mm |
| Noise Emissions | >75dB |
| Power Input Required | Single Shifta 240v 3kva |
| Power Input Required | Multiple Shiftas 240v 5kva |
| Throughput | 110 tonnes p/h |
| Max Working Angle | 55 degrees |
| Max Payload | 200kg |
| Weight | 138kg |
| Dimensions (less hopper) | 220mm H x 4100mm L x 600mm W |
| 1: Comms link INPUT | 9: Adjuster pivot bolt |
| 2: Power INPUT | 10: Conveyor trestle |
| 3: Bogey locking pin | 11: Forklift holes |
| 4: Emergency stop | 12: Forward/ Stop/ Link/ Voltage indicator |
| 5: Forward/ Stop/ Reverse/ Twin Speed | 13: Operator manual QR Code |
| 6: Comms link OUTPUT | 14: Wheels |
| 7: Power OUTPUT | 15: Drive drum |
| 8: Top adjuster | 16: Hopper |

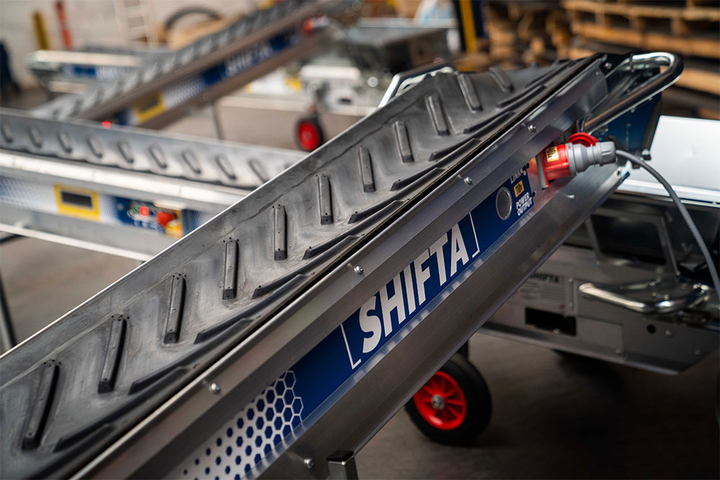

Shifta Conveyor 400mm wide 4m long 240v
$21,795.00
