Roo Attachments Mechanical Grab 30T – 36T

Roo Attachments 30 to 36T rated Solid Finger Grab Suits mini excavators of all makes and models from 30T –  36T tonnes. Solid Finger Grab for Mini Excavators The Roo Attachments Solid Finger...

$13,259.00 AUD
GST is included in price. Shipping calculated at checkout.
Description

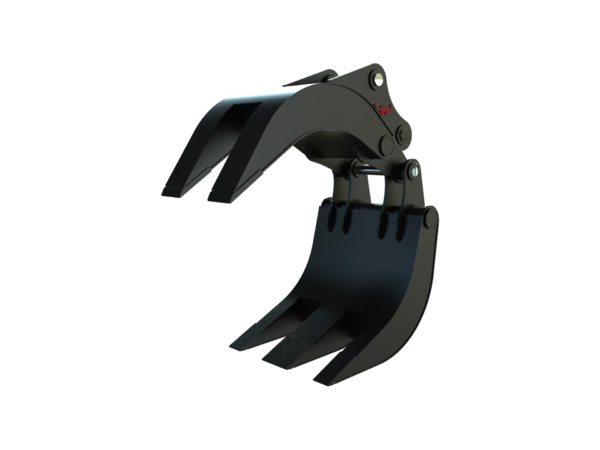

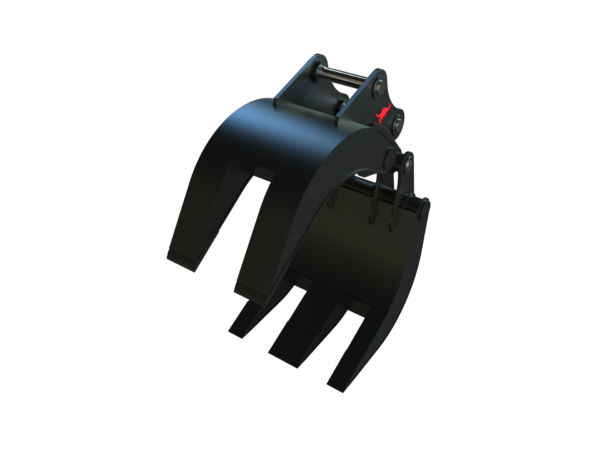

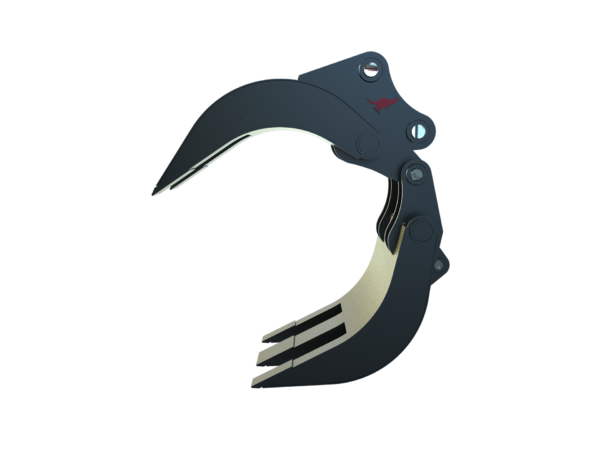

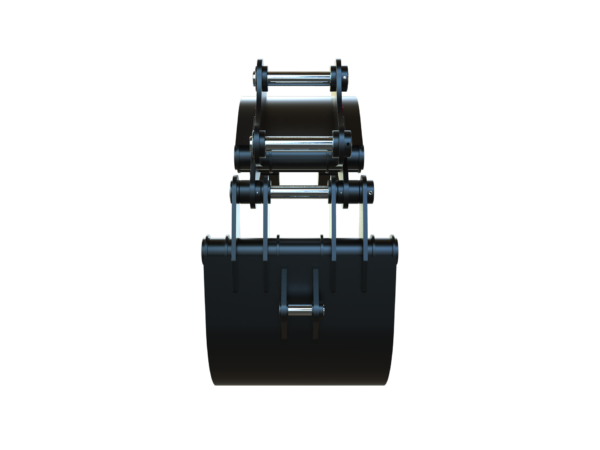

Roo Attachments 30 to 36T rated Solid Finger Grab

Suits mini excavators of all makes and models from 30T –  36T tonnes.

Solid Finger Grab for Mini Excavators

The Roo Attachments Solid Finger Grabs are the perfect choice for your mini excavator. The Solid Finger grabs are made with Bisalloy Steel making them lighter and tougher for the most demanding of tasks.

Put them to work lifting and placing rocks, pulling vegetation and log removal, removal of concrete and masonry products, and sorting and recycling waste and scrap metals.

Features:

  • All pivot points are greaseable.
  • Tyne edges are serrated optimising grip.
  • A wider opening of 900mm and a lighter 85kg makes them the perfect performer for your mini excavator.
  • Includes Weld-on Bracket and Quick Release Reaction Bar

Specifications:


Make: Roo Attachments

Weight: 1640 kg

Opening: 3200mm

Width: 1124mm

Warranty: 2 Years



Includes: Double Pin Hitch, Hoses and couplers of your choice.

Perfect for

Case CX250
Cat 336
Doosan DX340
Hitachi ZX270, ZX350, ZX360
Hyundai R290, R320
Kobelco SK300
Komatsu PC290, PC300
JCB 300, 330
Liebherr 936
Luigong 930
Sany SY305H, SY365H
Sumitomo SH330
Volvo EC300
Yuchai 310, 360


Checking your machine's hitch specifications.

The pin layout of your machine is crucial, especially for machines with Half Hitches (pull pin hitch).

Please choose the make your machine from the drop-down menu and compare its hitch specs.

  • Pin Diameter = P
  • Pin Centres = C
  • Ear Width/Boss Width = E

Note that some machine models are made by a different manufacturer (OEM).

Examples of this include the early model Case CX17B which at the time was manufactured by Kobelco and being the SK17SR-2. Both have the same hitch specs.

Recently Yanmar have produced the Kobelco SK17SR-5 and -6 and the Case CX17C is now produced by Hyundai being the R17Z-9A.

So please review all hitch specs from the drop-down menu and check and measure all pin specs of your machine before purchasing.

If your machine's hitch specs are not on the list please provide its specifications in the SPECIAL INSTRUCTIONS FOR SELLER on the first page of the checkout.

How to measure your hitch specs:

  1. Choose one of your attachments.
  2. Measure the Pin Diameters. Check both front and back pins.
  3. Measure the pin centres. From the centre of the front pin to the centre of the back pin.
  4. Measure the width where the hitch of the machine fits between the ears or bosses. Whichever is narrowest.

Other information required:

Please advise in the SPECIAL INSTRUCTIONS FOR SELLER section on the first page of the checkout;
1) Your machines hitch type: Half Hitch, Hydraulic Hitch or Tilting Hydraulic Hitch
This will help us determine what length of hose is required.
