Suits mini excavators of all makes and models from 2 to 2.7 tonnes
Suits all makes and models of 2 to 2.7 Mini Excavators with 35 or 38mm Pins
Make: Roo Attachments
Includes: Double Pin Hitch, Hoses and couplers of your choice.
Airman AX22U, AX26U
Cat 302, 302.7
Kubota U25, U27
New Holland E26C
Takeuchi TB225, TB23R
Wacker Neuson EZ26
Yanmar Vio20, Vio25
Checking your machines hitch specifications.
The pin layout of your machine is crucial especially for machines with Half Hitches (pull pin hitch).
Please choose the make your machine from the drop down menu and compare its hitch specs.
- Pin Diameter = P
- Pin Centres = C
- Ear Width/Boss Width = E
Note that some machine models are made by a different manufacturer (OEM).
Examples of this include the early model Case CX17B which at the time was manufactured by Kobelco and being the SK17SR-2. Both have the same hitch specs.
Recently Yanmar have produced the Kobelco SK17SR-5 and -6 and the Case CX17C is now produced by Hyundai being the R17Z-9A.
So please review all hitch specs from the drop down menu and check measure all pin specs of your machine prior to purchasing.
If your machines hitch specs are not on the list please provide its specifications in the SPECIAL INSTRUCTIONS FOR SELLER on the first page of the checkout.

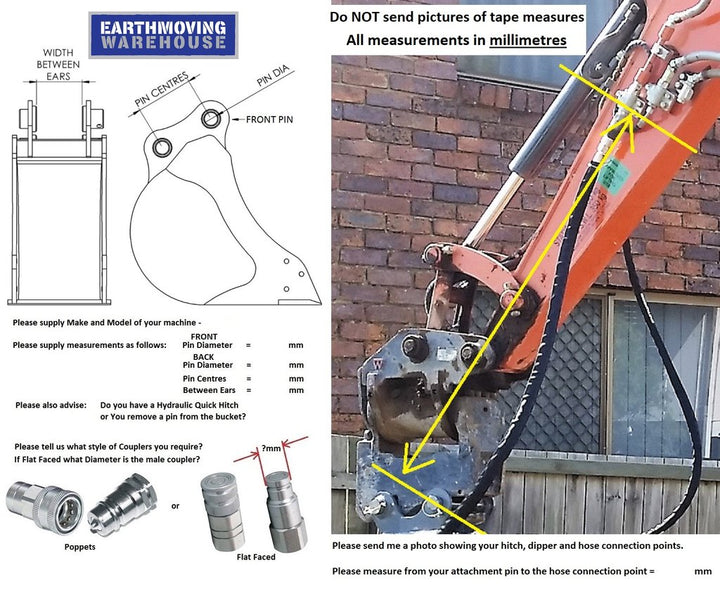

How to measure your hitch specs:
- Choose one of your attachments.
- Measure the Pin Diameters. Check both front and back pins.
- Measure the pin centres. From the centre of the front pin to the centre of the back pin.
- Measure the width where the hitch of the machine fits between the ears or bosses. Which ever is narrowest.
Other information required:
|Machine Make and Hitch Specs
Airman 35P/185C/124E, Bobcat 35P/200C/134E, Case 35P/180C/126C, Cat 35P/165C/138P, Hitachi 35P/185C/124E, Hyundai 35P/180C/138E, Kato 35P/187C/123E, Kobelco 35P/180C/126E, Komatsu 35P/200C/148E, Kubota 35P/139C/113E, New Holland 35P/180C/126E, Sunward 35P/180C/183E, Takeuchi 35P/180C/126C, Volvo 35P/180C/138E, Yanmar 35P/180C/126C, Yanmar 38P/213C/144E, XCMG 35P/139C/113E, OTHER
