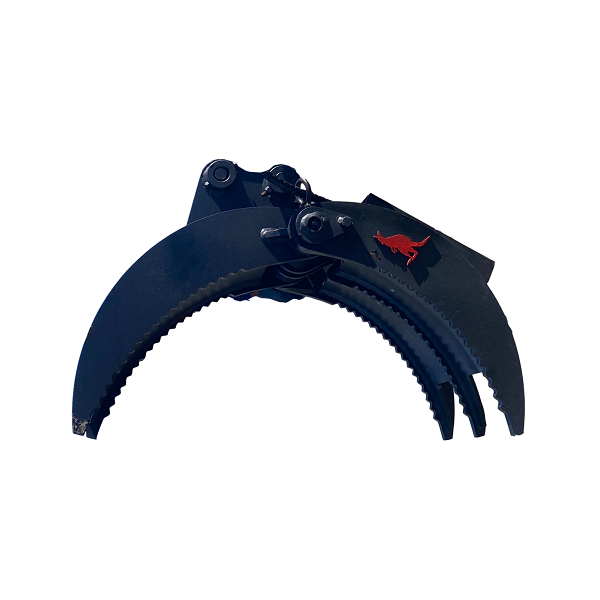

Roo Attachments Hydraulic Grab 1.5 - 2.4T with Single Ram
Roo Attachments 1.5 to 2.4T rated Hydraulic Grab with Single Ram
Suits mini excavators of all makes and models from 1.5 to 2.4 tonnes.
Hydraulic Rock Grabs for Mini Excavators
The Roo Attachments Hydraulic Rock Grabs are the perfect choice for your mini excavator. Also known as log grabs, demolition grabs or hydraulic grabs they are made with Bisalloy Steel making them lighter and tougher for the most demanding of tasks.

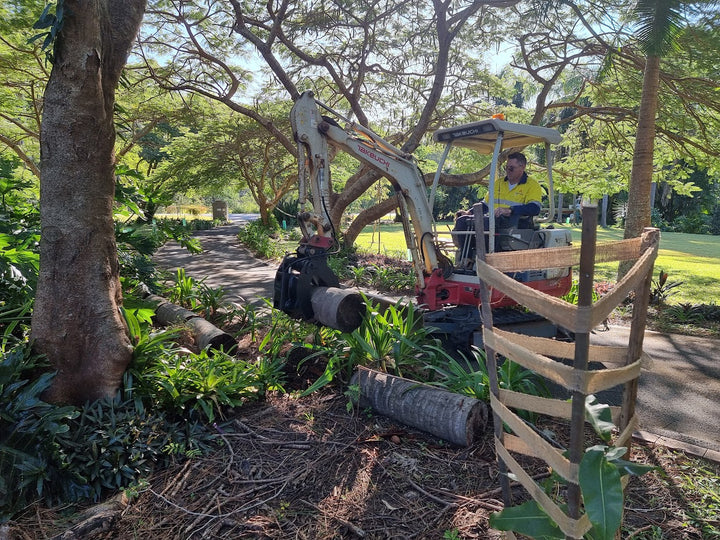

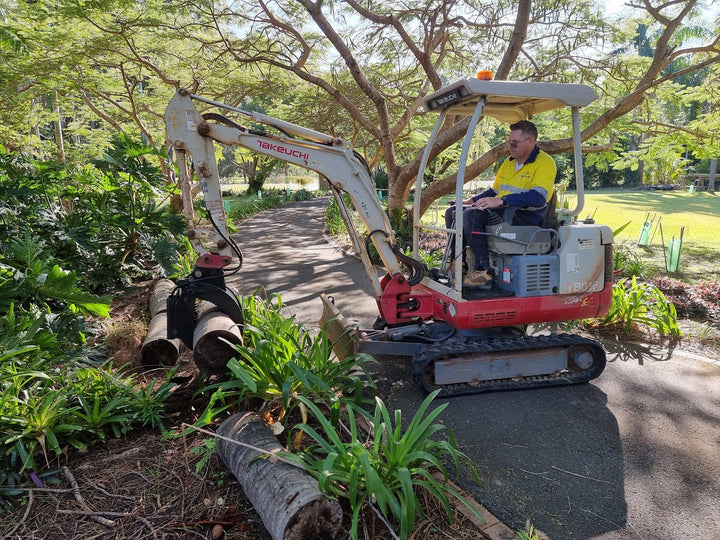

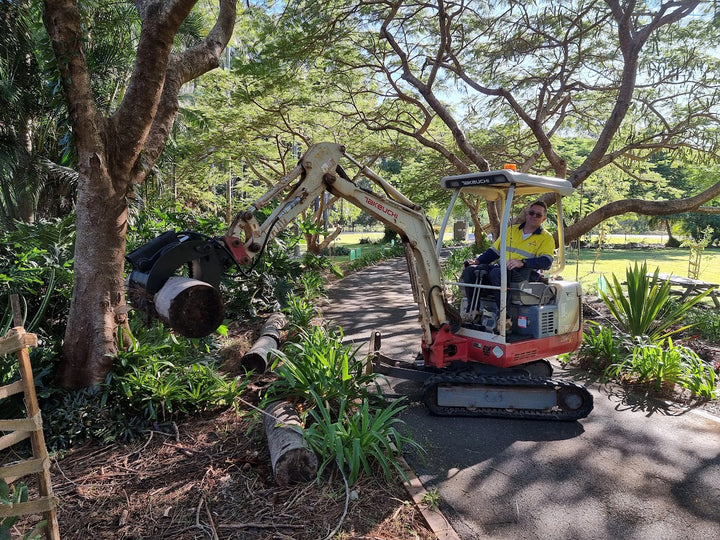

Put them to work lifting and placing rocks, pulling vegetation and log removal, removal of concrete and masonry products, sorting and recycling of waste and scrap metals.
Grabber Specifications:
Make: Roo Attachments
Weight: 99kg
Opening: 720mm
Width: 400mm
Warranty: 2 Years
Features:
- Bisalloy Steel construction - Stronger and Lighter
- The hydraulic hoses and cylinder are protected by the cylinder guard.
- All pivot points are greaseable.
- Tyne edges are serrated optimising grip.
- Wider opening 720mm and lighter 99kg makes them the perfect performer for your mini excavator.
Includes: Double Pin Hitch, Hoses and couplers of your choice.
Perfect for
Airman AX17U
Bobcat 324, E17, E20
Case CX17
Cat 301.5, 301.6, 301.7, 301.8, 302
Eurocomach ES18ZT
Hitachi ZX17U
Hyundai R16, R17
JCB 18Z
Kobelco SK17SR, SK20SR
Komatsu PC18MR
Kubota KX41, KX016, KX018, U17
New Holland E17C
Sany SY16
Takeuchi TB016, TB215, TB216
Volvo EC18
Wacker Neuson ET16, ET18, EZ17
UMI UME17
XCMG XE17
Yanmar Vio17, Vio20
Yuchai YC15, YC18
Checking your machines hitch specifications.
The pin layout of your machine is crucial especially for machines with Half Hitches (pull pin hitch).
Please choose the make your machine from the drop down menu and compare its hitch specs.
- Pin Diameter = P
- Pin Centres = C
- Ear Width/Boss Width = E
Note that some machine models are made by a different manufacturer (OEM).
Examples of this include the early model Case CX17B which at the time was manufactured by Kobelco and being the SK17SR-2. Both have the same hitch specs.
Recently Yanmar have produced the Kobelco SK17SR-5 and -6 and the Case CX17C is now produced by Hyundai being the R17Z-9A.
So please review all hitch specs from the drop down menu and check measure all pin specs of your machine prior to purchasing.
If your machines hitch specs are not on the list please provide its specifications in the SPECIAL INSTRUCTIONS FOR SELLER on the first page of the checkout.
How to measure your hitch specs:
- Choose one of your attachments.
- Measure the Pin Diameters. Check both front and back pins.
- Measure the pin centres. From the centre of the front pin to the centre of the back pin.
- Measure the width where the hitch of the machine fits between the ears or bosses. Which ever is narrowest.
Other information required:
| Machine Make and Hich Specs |
Bobcat 30P/123C/110E, Kato 30P/105C/105E, Kobelco 30P/105C/108E, Yanmar 30P/105C/108E, Airman 30P/118C/118E, Case 30P/142C/110E, Cat 30P/126C/110E, Hitachi 30P/118C/118E, Hyundai 30P/140C/122E, John Deere 32P/130C/121E, Komatsu 30P/124C/122E, Kubota 30P/85C/96E, Nagano 30P/126C/110E, New Holland 30P/142C/110E, Takeuchi 30P/132C/113E, Wacker Neuson 32P/130C/121E, Wacker Neuson 30P/230C/180E, Sany 30P/135C/115E, UHI 30P/90C/95E, XCMG 30P/90C/95E |
|---|
