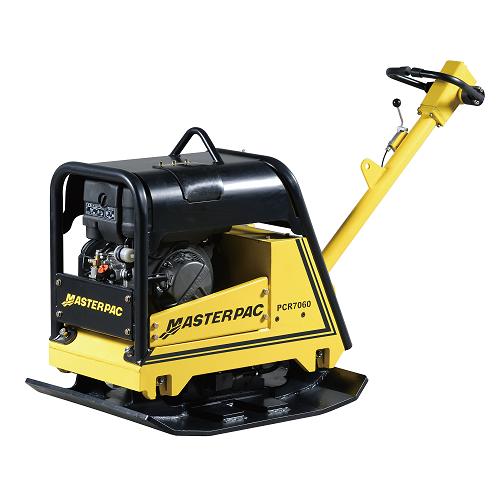

MasterPac PCR7060 Reversible Plate Compactor

Masterpac PCR7060K Hydraulic Reversible Plate Compactors are ideal and versatile for high production and efficient compaction for sand, gravel and cohesive soils. The reversible vibratory plates offer two eccentric weights which increase the compaction force while creating a smooth transition between forward and reverse travel.

Heavy-duty compactors are suitable for compaction of sand gravel, crushed aggregate as well as mixed soil with some cohesive content. Widely used in trench work, underground work (cable, water pipe, etc), backfilling along foundations and surface preparation.

Kholer: LD440 Diesel

Features:

• Hydraulic adjustment control lever for easy direction change.
• On the spot compaction for problem areas.
• Infinitely variable hydrostatic forward and reverse motion.
• Reverse travel safety protection ensures the plate automatically reverts to slow forward travel if the operator releases the travel control lever while reversing.
• User friendly isolated vibration handle.
• Fully sealed lubricated wear resistant cast iron vibrator assembly.
• Handle folds to 45 and 90 degree position for easy transportation and storage.
• Heavy-duty roll cage with lifting eye protects against dirt and damage for easy transportation.
• Impact-resistant and open self cleaning base plate.
• Unique built-in transport wheels provides easy transportation.
• Convenient Oil drain hose.
• Robust design sealed belt cover for clutch and belt protection.
• Electric starter is an option for diesel engine.
• The optional polyurethane pad for paving applications is available.
• Powered by Honda GX270 or Kholer LD440 or Yanmar L100N6

Specifications:

Engine Type:  Kholer LD440

Power Hp: 10.3

Weight kg: 378

Plate Size mm L x W: 900 x 700

Centrifugal Force kN: 60

Vibration Frequency VPM: 4140

Travel Speed m/min: 20-25
