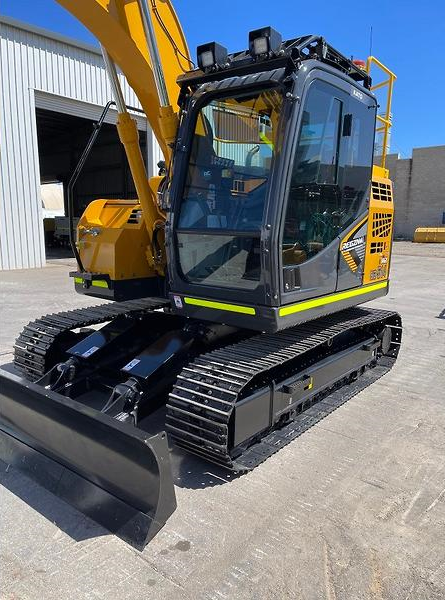

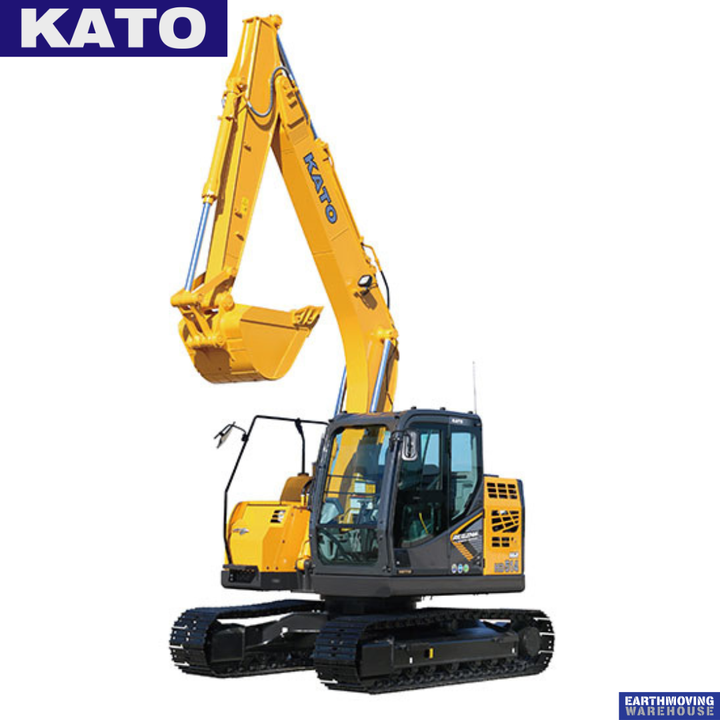

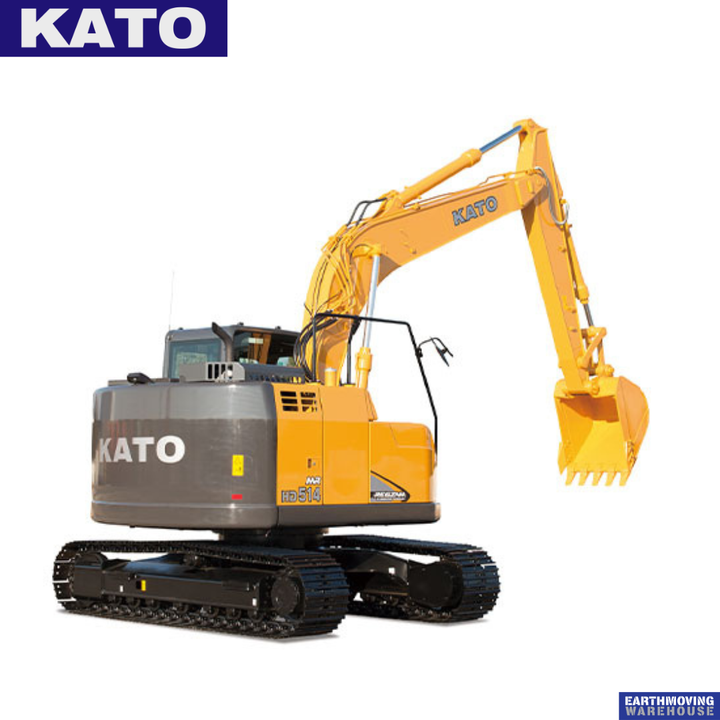

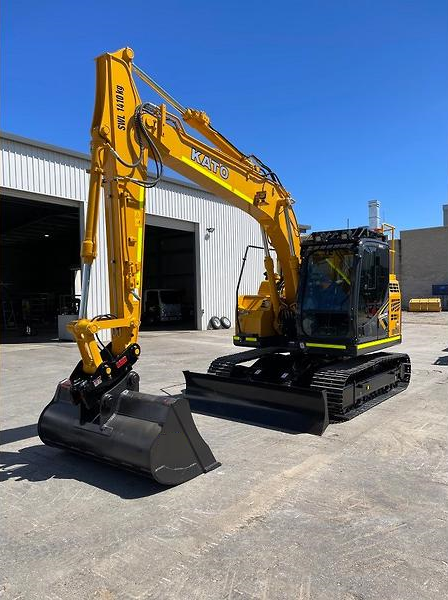

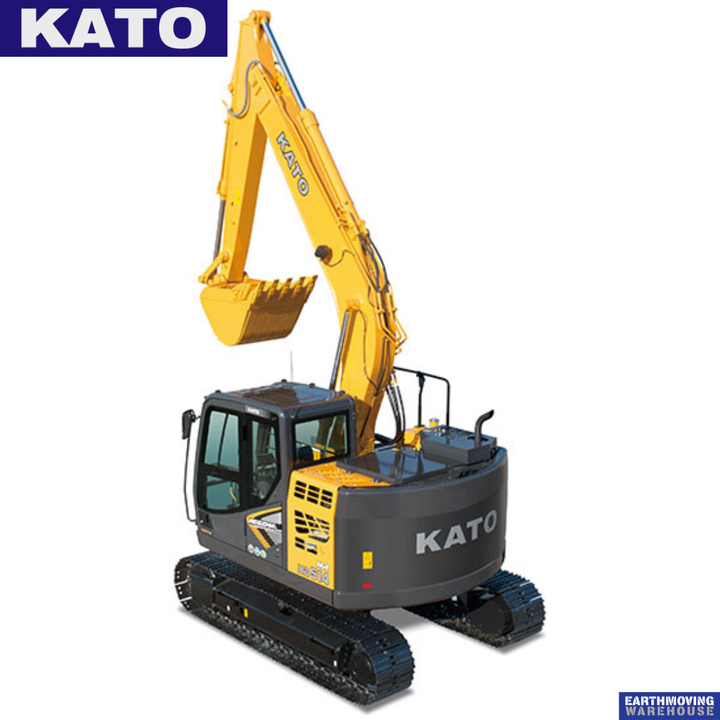

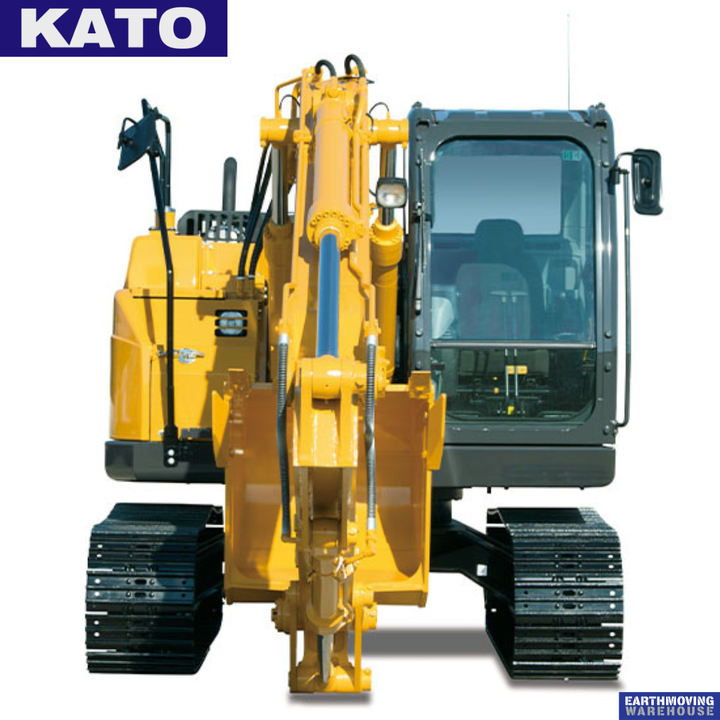

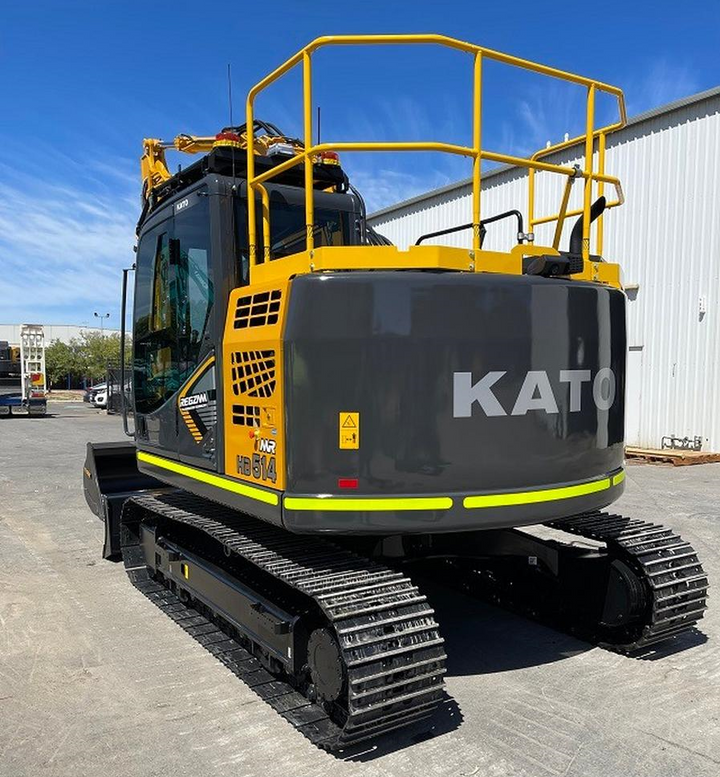

KATO HD514MR Excavator 14 Tonne Class

High Productivity and Operator Compfort

High Perfomance and Environment-Friendly Isuzu Engine

Selective Catalytic Reduction (SCR) system

The SCR system cuts the NOx (nitrogen oxides), PM (particulate matter) and NMHC (non-methane hydrocarbon). The emission control is compliant with Stage4 and Tire4

EGR (Exhaust Gas Recirculation) system

The large capacity water-cooled EGR cooler suppresses the NOx by 88%

Larger Cylinders, New Control Valve

Boom and Dipper Cylinders

Increased diameter boom and bucket cylinders reduce pressure loss and increases power.

New Control Valve

The new control valve enhances operability. The incorporation of an arm-semi-parallel circuit and an arm spool has improved accuracy of leveling operations.

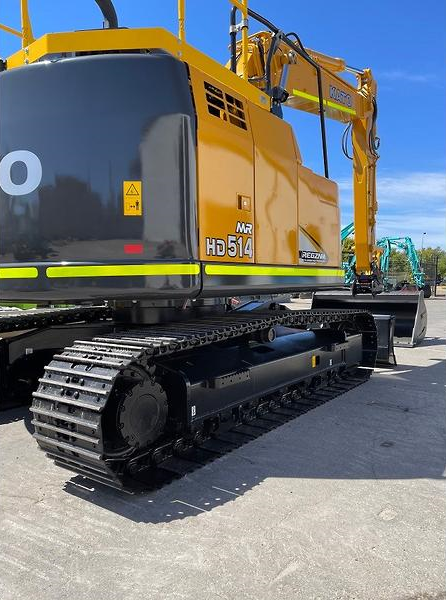

New X-Frame and Under-Carriage

New X-Shape Rear Frame

The travel motor pipes are stored within the frame. Cross section has been increased to increase rigidity.

Idler Frame Enhancement

Redesigned idler wheel bracket increases durability.

Shock Absorber

The adjustable idler cylinder is integrated into the shock absorber

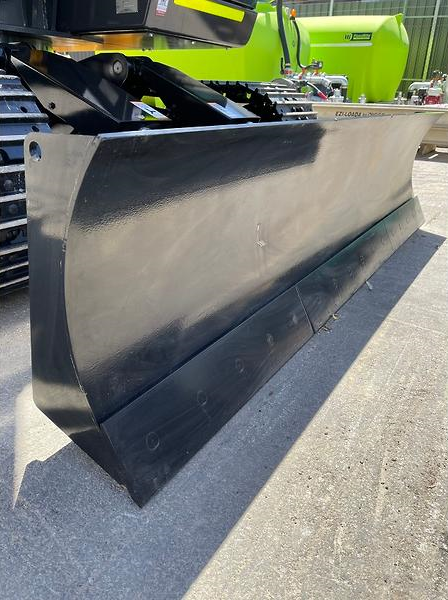

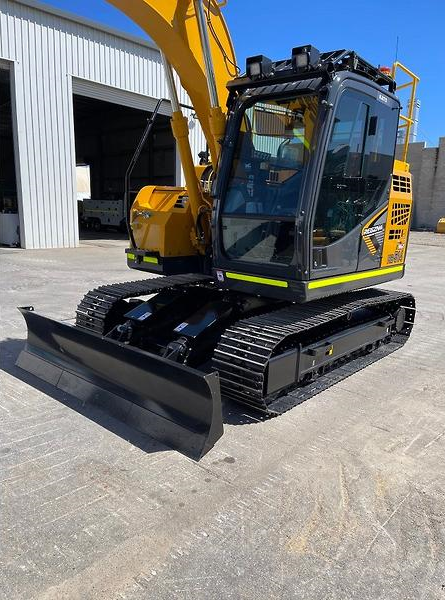

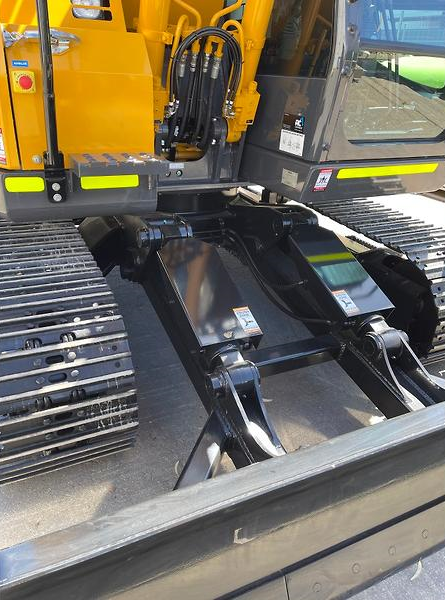

Bolt-on Cutting Edge

The Dozer Blade is available with Bolt-on Cutting Edge

Digging Force

Max. Arm Digging Force 69kN

at High Power 72kN

Max. Bucket Digging Force 94kN

at High Power 98kN

Adjustable Boom Swing Position

Adjust boom cylinder position to increase lift height and decrease swing radius.

Standard or Long

Choose from Standard, or the Long Carriage option for increased stability.

New APC for Smart Operation

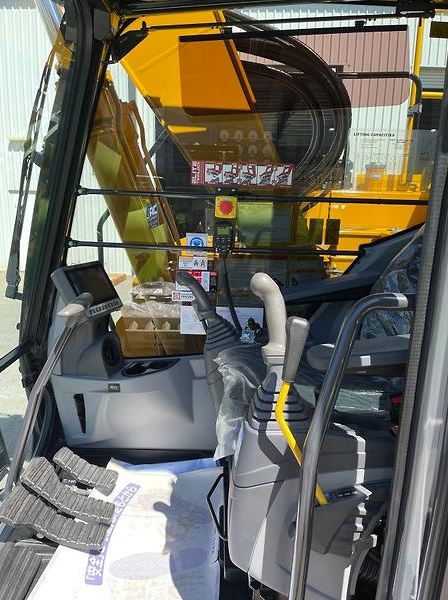

Visibility, Safety and Operability

Large and high resolution display

The display is 7 inch size and IPS liquid crystal display provides high quality image.

Rear view camera a standard feature

Operator is able to confirm rear and side view through dual view display (side view camera is optional).

Touch screen control for all operations

Mode selection
It indicates rear and side view at the same time. Pull-down menu enables operator to confirm all mode on the display at once.

Air conditioner
The air conditioner operation is controlled on the display.

Alarms and Maintenance

The display indicates various alarms. Operator is able to set up to display various information such as maintenance information.

Creature Compforts
