KATO HD35V5 Mini Excavator and CL35 Track Loader Combo

$0.00 AUD
GST is included in price. Shipping calculated at checkout.

The Ultimate 3.5T Contractor Combo Package

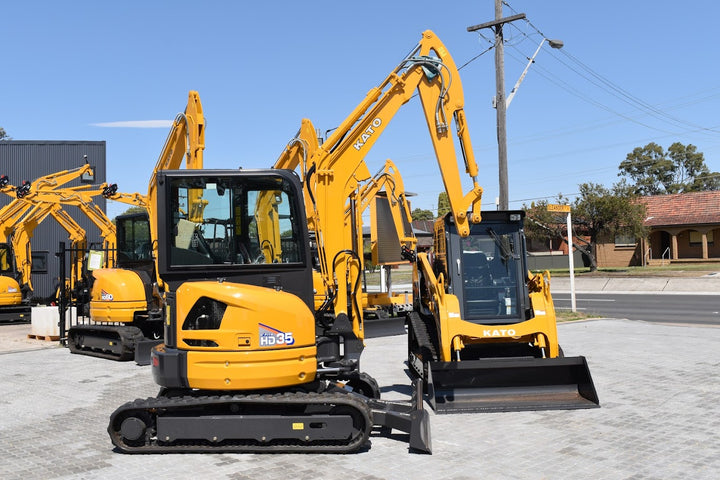

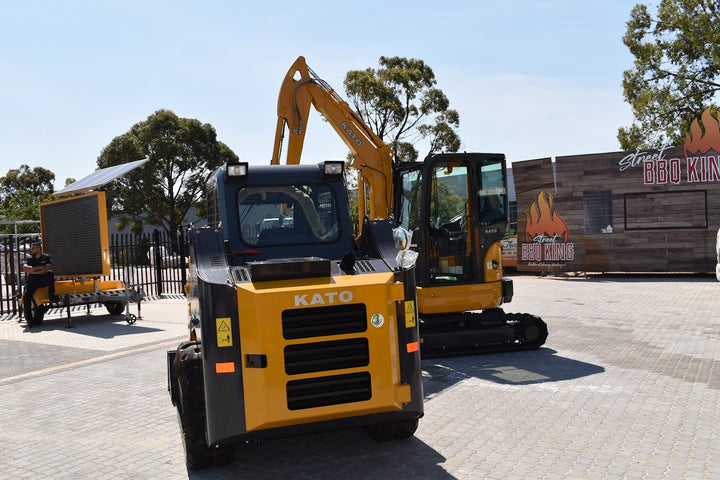

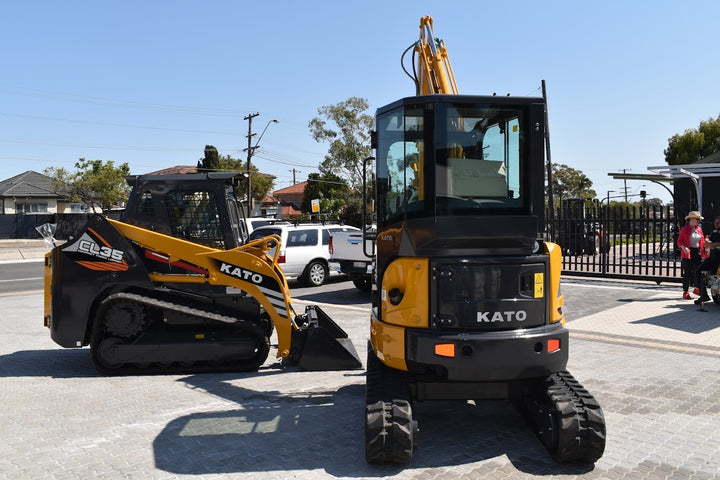

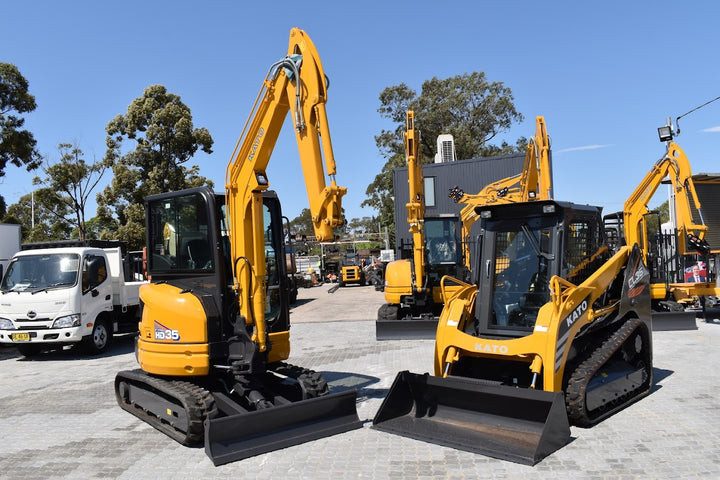

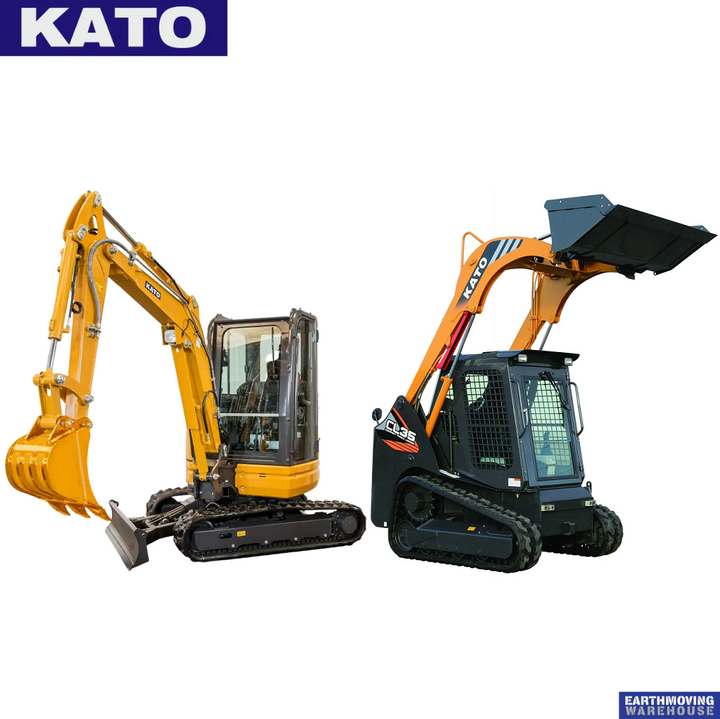

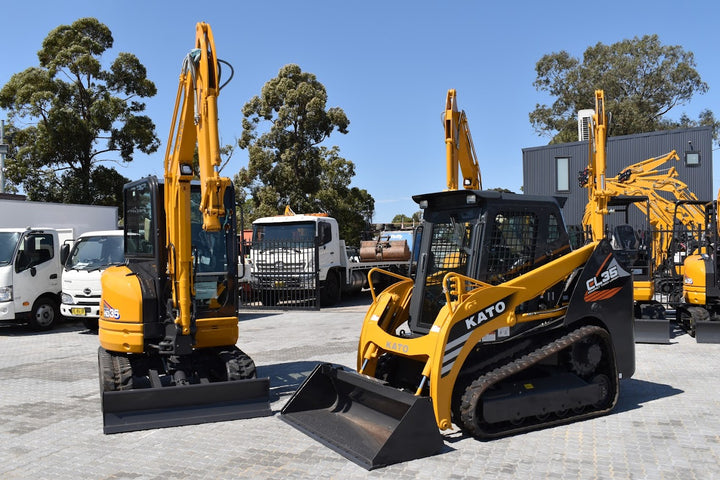

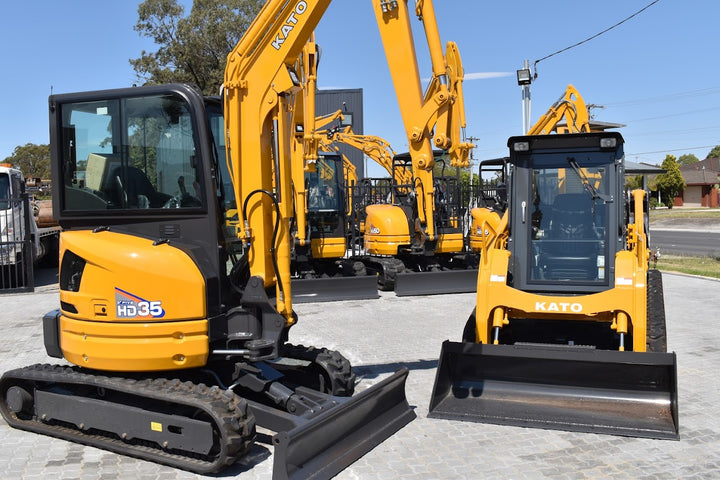

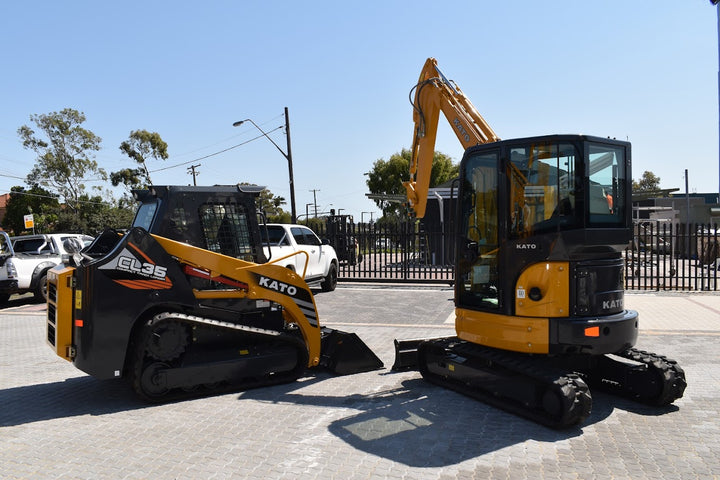

KATO HD35V5 Mini Excavator & Kato CL35-4F Track Loader

All New V5 Generation Zero Tail Swing Mini Excavator with Expanding Track Frame plus a 4th Generation CL35 Compact Track loader

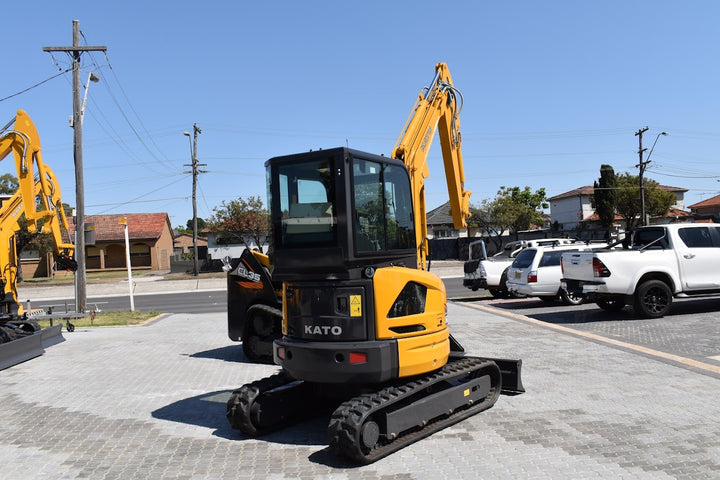

HD35V5 Mini Excavator

Kato mini excavators made in Japan since 1977.


  • Operating Weight - 4 Post Canopy 3515 kg/ Air Cab 3665kg
  • Yanmar 3TNV88F Engine
  • Expanding Track Frame 1550-1800mm
  • 42L Fuel tank capacity
  • Swinging Boom (L/R) 80 degree / 50 degree
  • Long Dipper
  • 3300mm - Max. Digging depth (3900mm with Slide Arm option)
  • 5490mm - Max. Digging radius (6090mm with Slide Arm option)
  • 5180mm - Max. Digging height (5780mm with Slide Arm option)
  • 3650mm - Max. Dumping height (3950mm with Slide Arm option)
  • Powerful digging force 29.1kN (2970kgf)
  • Three pumps hydraulic system
  • Corrosion-free resin fuel tank
  • 4 posts ROPS canopy as standard (Cabin option)
  • Easy maintenance with wide-opening engine covers
  • Rubber tracks
  • Removable counterweight
  • Hammer/Auger piping standard
  • 3 Years/3000 Hours Warranty


  • Expanding Track Frame - Allows for better access to work sites 1550mm to 1800mm for better stability and larger breakout when working over the tracks.
  • Newly designed operator’s space
  • Zero tail swing
  • Easy maintenance
  • Low fuel consumption
  • Powerful digging & quick response
  • and loads more!

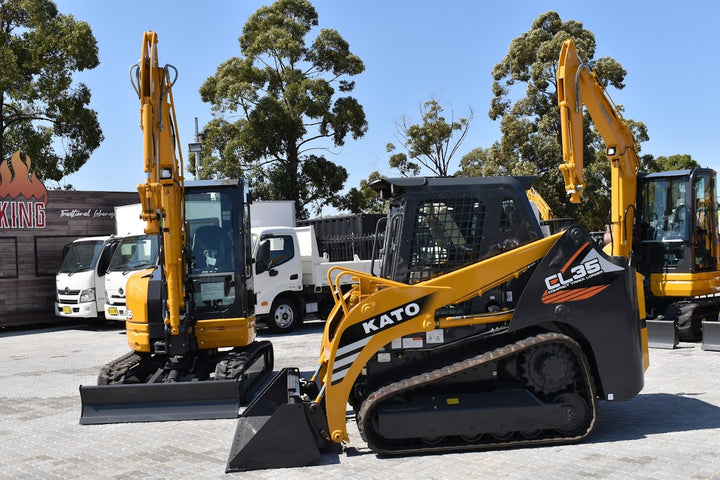

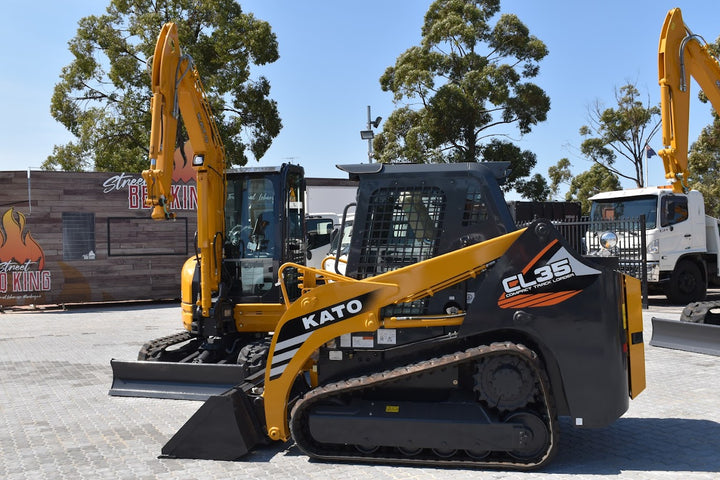

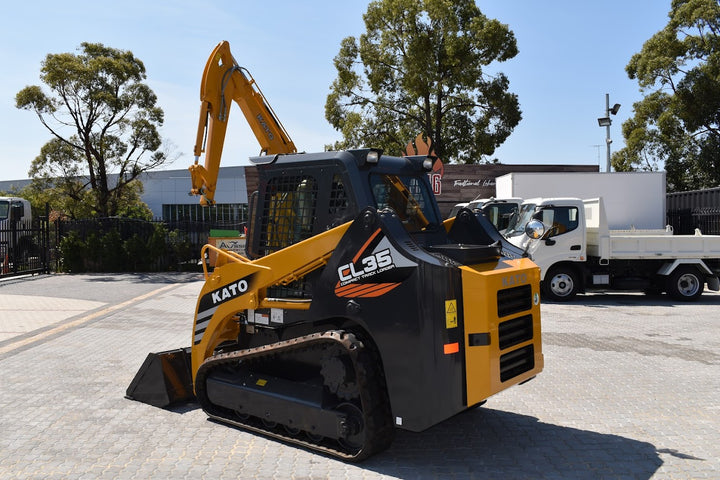

CL35-4F Compact Track Loader

Kato compact track loaders made in Japan since 2008.


  • 62hp Kubota V2403-CR Engine
  • 3540kg - Operating weight
  • 2135mm - Overall height
  • 3500mm - Overall length (with bucket)
  • Fuel tank capacity - 91L
  • 3 Years/3000 Hours Warranty


  • The CL35 features a comfortable operator's seat with joystick control, increasing productivity.
  • Air-conditioned cabin
  • Wide foot space
  • Auxiliary piping control switches are equipped on the left joystick lever
  • Our Operator-friendly design enables fuss-free maintenance and easy cleaning
  • The ROPS can be tilted for easy access to the Engine and other service ports
  • Side by side Radiator and Oil cooler enable easy cleaning
  • 2 Split Sprocket - this sprocket can be replaced without removing the rubber crawler
  • Large capacity fuel tank


For Pricing, complete the below form or Click Here to call our KATO specialists on 0459 WAREHOUSE. (That's 0459 927 346)
