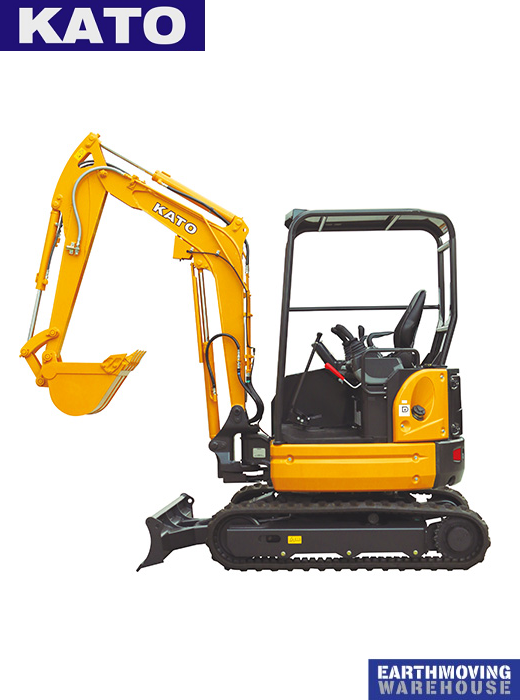

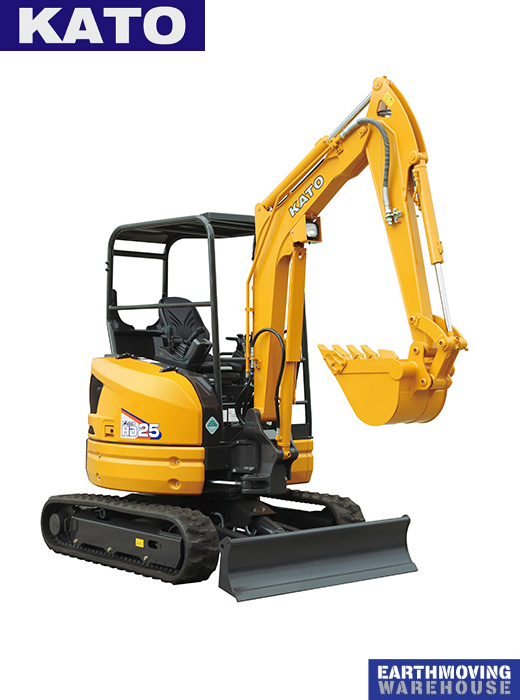

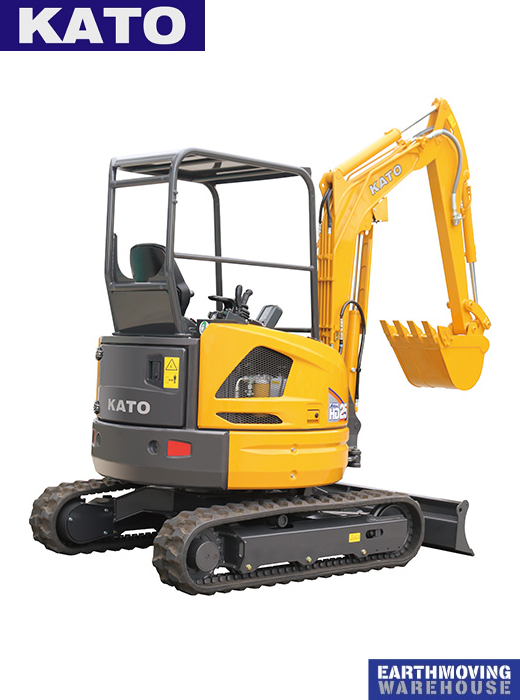

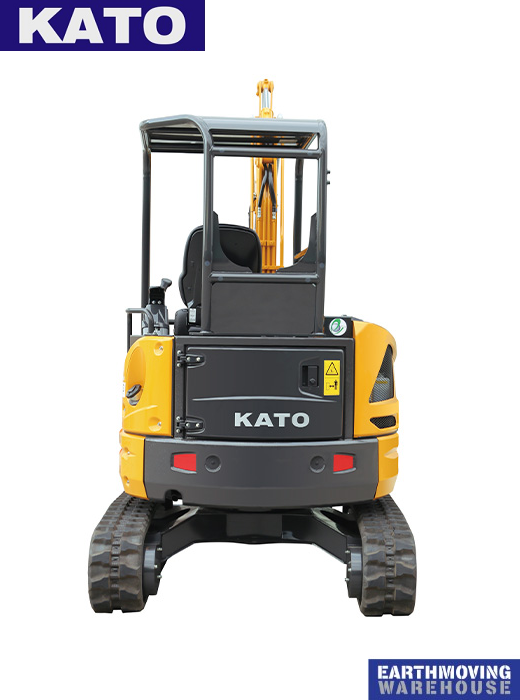

KATO HD25V5 Mini Excavator
All New V5 Generation Zero Tail Swing Mini Excavator KATO IHI Mini Excavators 2.5 Tonne Class Operating Weight - 2555kg (4 Post Canopy) Kubota D1305-E4B 17.6kW Engine 42L Fuel tank capacity Swinging...
All New V5 Generation Zero Tail Swing Mini Excavator
KATO IHI Mini Excavators 2.5 Tonne Class
Operating Weight - 2555kg (4 Post Canopy)
Kubota D1305-E4B 17.6kW Engine
42L Fuel tank capacity
Swinging Boom (L/R) 80 degree / 50 degree
2740mm - Max. Digging depth
4840mm - Max. Digging radius
4410mm - Max. Digging height
3130mm - Dump height
Note: Digging parameters are calculated with the bucket connected directly to the dipper.
Adding hitches, tilting hitches or tilt rotators increases these parameters.
Powerful bucket digging force 21.0kN (2140kgf)
4-Pump hydraulic system
Pump 1 & 2 (Variable Piston): These handle the heavy lifting—Boom, Arm, and Bucket.
Pump 3 (Gear): Dedicated to the Swing and Dozer Blade.
Pump 4 (Gear): Dedicated to the Pilot Control system.
Hydraulic Flow Breakdown: 28.8 x 2 + 19.2 +12 L/min
3-Circuit Hydraulic Auxiliaries
Aux. Circuit 1. Auger/Hammer with Proportional Thumb Control
Aux. Circuit 2. Quick Hitch
Aux. Circuit 3. Tilt/Grab with Proportional Thumb Control
Corrosion free resin fuel tank
Four Post ROPS Canopy
3 Years/3000 Hours Warranty
The Kato HD25V5 is a powerhouse in the 2.5-tonne class, engineered specifically for those who refuse to compromise on performance within a zero-tail swing footprint.
At its core sits a high-displacement engine delivering a punchy 17.6kW 23.6 hp, providing a significant power-to-weight ratio that translates into raw digging muscle.
This "power reserve" is particularly noticeable when the machine is equipped with the Long Arm configuration; even at maximum reach and depth,
the engine maintains its RPMs, ensuring that heavy-duty trenching or lifting never feels sluggish or underpowered.
The true hallmark of the V5’s responsiveness is its sophisticated 4-Pump Hydraulic System.
By dedicating a specific fourth pump purely to the pilot control circuit, Kato ensures that the joysticks remain crisp, light, and consistent regardless of the load on the main pumps.
This architectural choice eliminates the "spongy" feel often found in compact excavators. It allows for seamless multi-functioning,
meaning you can travel, swing the house, and operate the boom and bucket simultaneously without any one movement "robbing" speed from another.
It makes the machine feel like an extension of the operator’s own hands.
From the operator's seat, this power is harnessed through a highly refined interface featuring dual proportional joystick sliders as standard.
This allows for surgical precision when operating complex attachments, such as rotating grapples or tilting hitches, by providing feathered control right at the thumbs.
Combined with a rugged, all-steel construction and a cabin that offers a 25% increase in interior space over previous generations.
The HD25V5 strikes a rare balance: it is a "tank" on the outside that offers a high-tech, intuitive, and remarkably smooth experience on the inside.
All-lever lock
Neutral engine-start
Auto-parking brake in swing & traction motors
Kato's V5 Line features wide-opening access panels and large compartments for working around the engine, hydraulics etc.
V5 Excavators are built on the Industry's strongest and most stable track frames, maximising job-site safety and minimising equipment repairs.
Kato's V5 line features highly responsive pilot controls and easy-to-read instrument panels, all within the most comfortable cabs on the market.
The Kato 25V5 Excavator manoeuvres in the tightest spaces with a zero-tailswing design.
