KATO CL35-4F
Compact Track Loader
The Kato CL35-4F Compact Track Loader is a Japanese made, small but mighty machine, designed to tackle tough jobs with ease and precision.
Its compact size allows it to maneuver in tight spaces, while the powerful engine and robust tracks provide superior traction and stability on any terrain.
The Kato IHI CL35-4F is built for efficiency and comfort, featuring an ergonomic operator station, intuitive controls, and a high-visibility cabin that ensures a safe and productive work environment.
Whether you're digging, loading, or land shaping, this compact track loader is the perfect solution for all your construction and landscaping needs, delivering exceptional performance and reliability in a compact package.
Specifications
65hp Kubota V2403-CR Engine
Comes standard with Air Conditioned Cabin
ROPS Certified
Auxiliary Flow 83 L/pm
3600kg Air Cab Operating weight
2135mm - Overall height
3500mm - Overall length (with bucket)
Fuel tank capacity - 91L
6.7Km/10km Travel Speed (Low/High)
3 Years/3000 Hours Warranty
Hydraulic Features & Benefits
3-Pump Hydraulic System: Producing dedicated drive and attachment circuits ensuring positive drive and auxiliary hydraulics when operating any attachment.
Auxiliary Hydraulic Flow with Two-way or Single-way Flow Valve:
Two-way Flow: Perfect for 4in1 Buckets, auger drives, trenchers, grapples and attachments requiring forward and reverse rotation or movements.
Single-way Flow: Perfect for slashers, post rammers, rock breakers and attachments that do not require reverse operation.
Hydraulic HOLD Switch: For constant flow through "A" Port without need to hold down thumb control. Reduces operator fatigue.
ISO Configuration: The left joystick manages all machine travel and steering, while the right joystick exclusively operates the lift arms and bucket functions.
Attachment Control: Attachments are operated by the proportional thumb control
Case Drain: Standard.
Comfortable Operator room & easy manipulation
The CL35 features comfortable operators seat with joystick control, increasing productivity.
Air conditioned cabin
Wide foot space
Auxiliary piping control switches are equipped on the left joystick lever
Serviceability
Our Operator-friendly design enables fuss-free maintenance and easy cleaning.
The ROPS can be tilted for easy access to the Engine and other service ports.
Side by side Radiator and Oil cooler enable easy cleaning.
2 Split Sprocket - this sprocket can be replaced without removing the rubber crawler.
Large capacity fuel tank.
Safety
Safety equipment protects operator from dangerous situations - Safety bar, Lift arm support, Hammer for emergency evacuation (located behind the operators seat).
Ecological Features
Engine Throttle Control - one touch decelerating function gives less fuel consumption, optimising engine output.
Environmentally friendly Engine US EPA Tier 4 Final compliant
Price includes:
Kato CL35-4F Compact Track Loader with Air-Con Cab
Ex works Brisbane
Finance Available *TAP
Why not make it a Combo?
Simply tick the boxes just below the Add to Cart button at the top, to add the products you want to combine with the Kato CL35. Make it the perfect workhorse, raring to go on delivery!
Want to know more about the Kato CL35 Compact Track Loader? Download the PDF Specifications Brochure here.

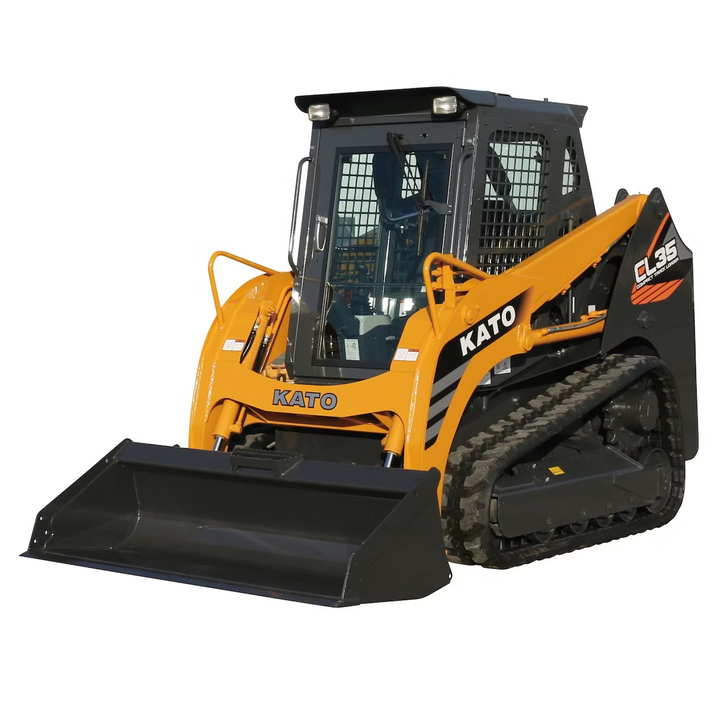

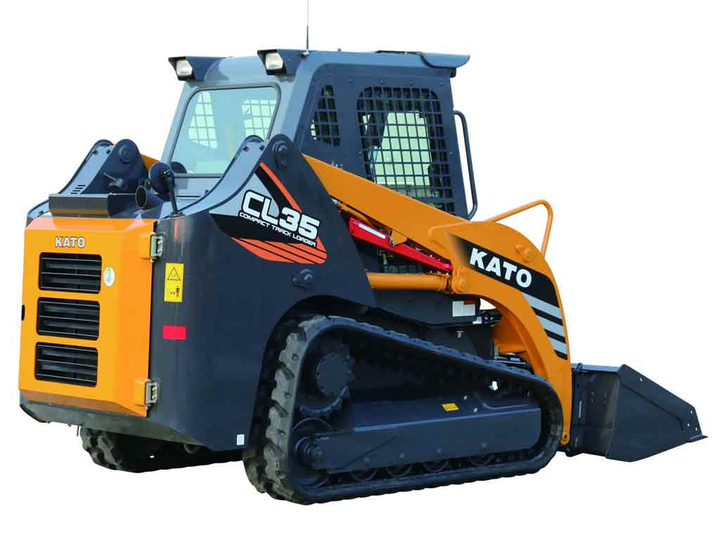

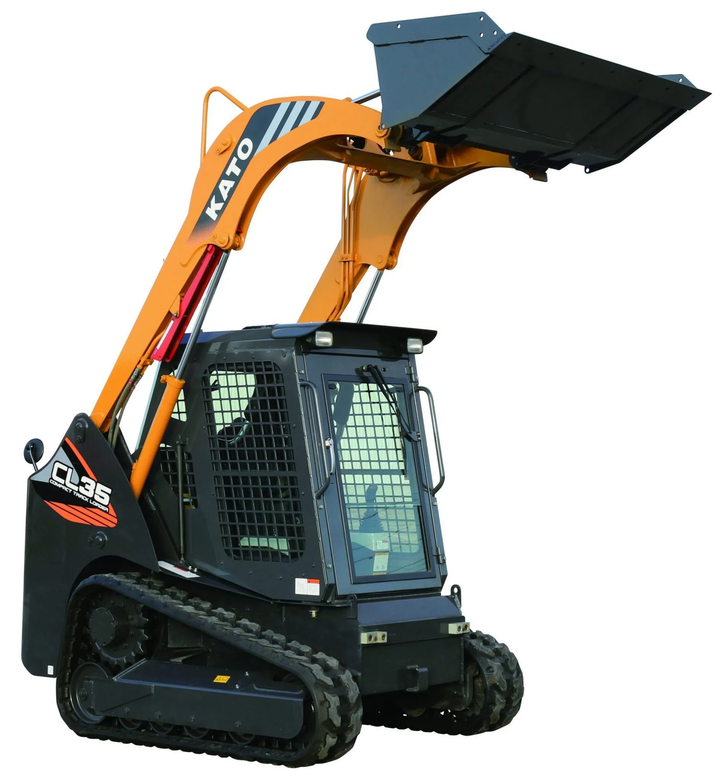

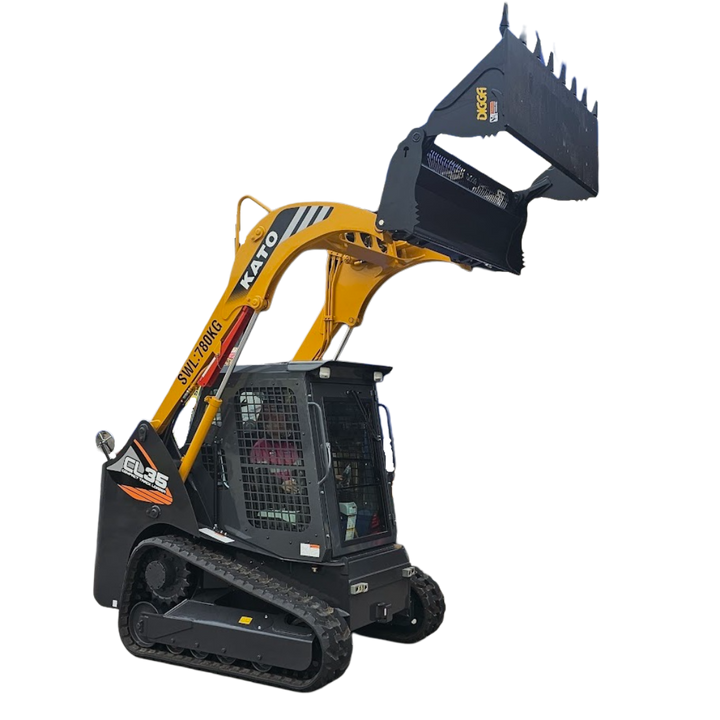

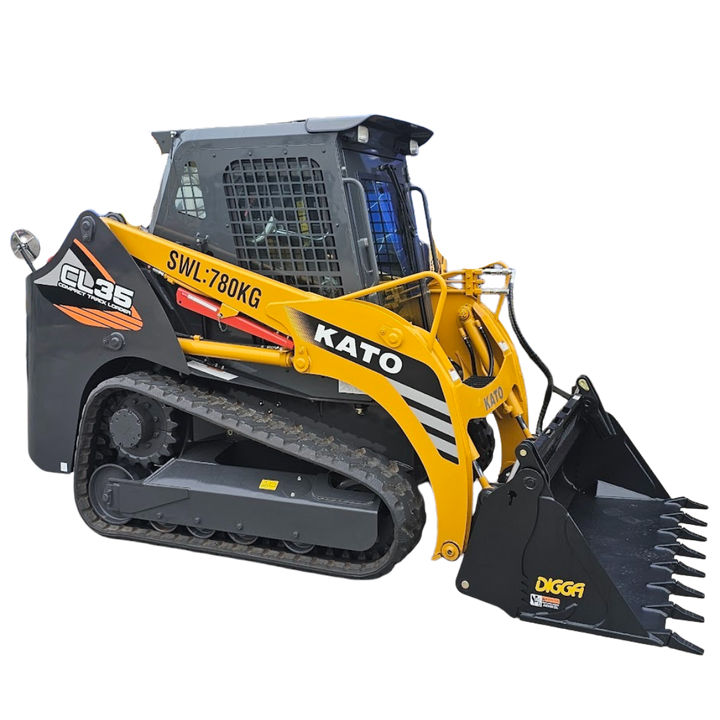

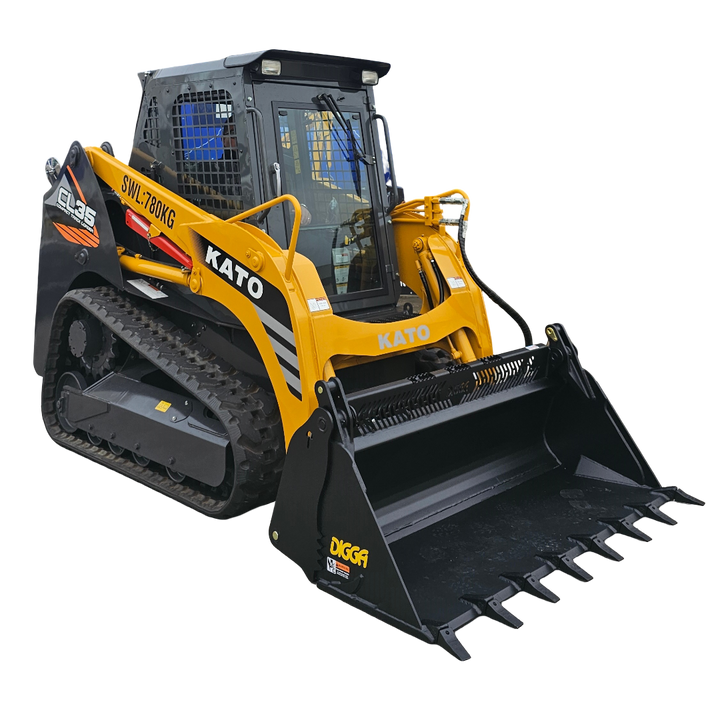

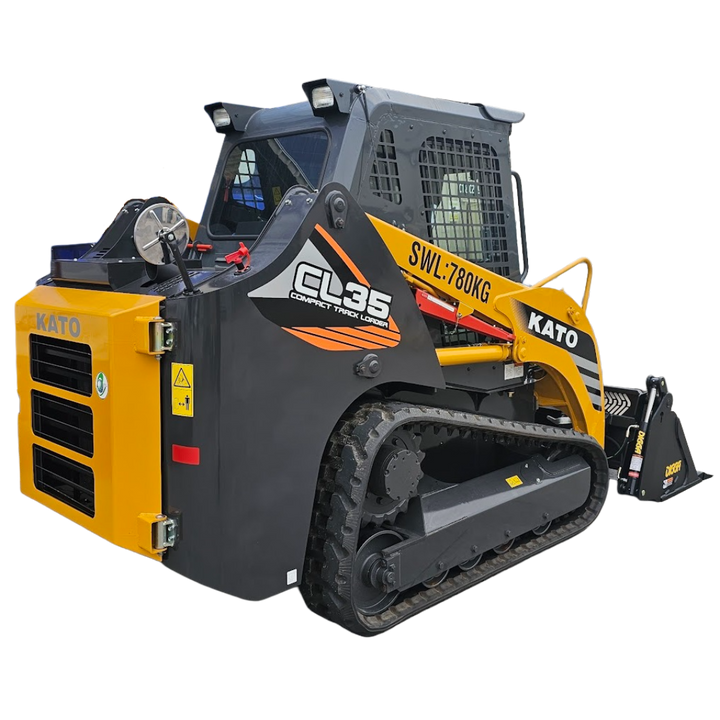

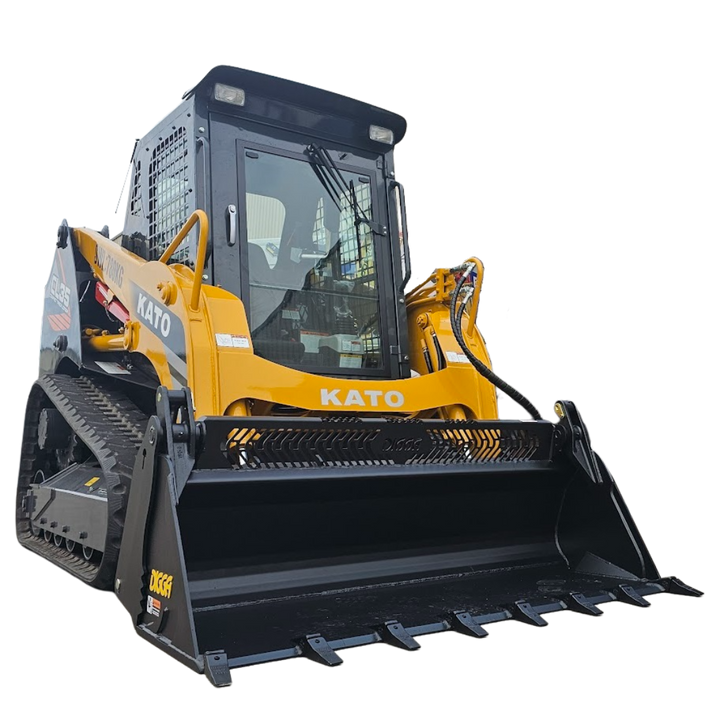

**images of the CL35 are for illustration purposes only. The 4 in 1 Bucket shown is not included, but can be added as an accessory.**
