Intermercato Hydraulic Grab 1 - 2T with Single Ram

  • Sale
  • Regular price $3,499.00
Shipping calculated at checkout.

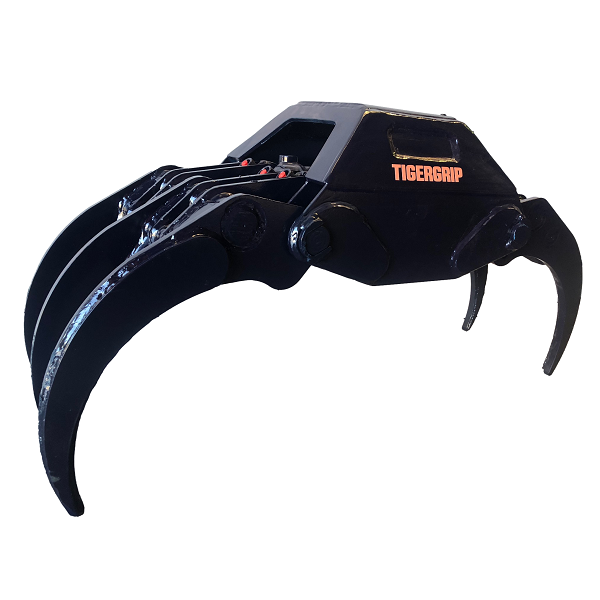

Intermercato 1T to 2T rated Hydraulic Grab with Single Ram

Suits mini excavators of all makes and models from 1 to 2 tonnes

Specifications:

Suits all makes and models of 1 to 2 Mini Excavators with 25mm, 30mm and 32mm  Pins

Make: Intermercato

Weight: 60kg

Opening: 810mm

Width: 273mm

Tynes: 5

Includes: Double Pin Hitch, Hoses and couplers of your choice.

Features

  • Made in Sweden
  • Made of HARDOX 400HB
  • Mount horizontal or vertically
  • Heavy Duty extra reinforced body for rigid mounting
  • Optimised roll in/roll out logs and bunching
  • High pressure cylinder with double piston rod seals.
  • Can be optioned or retro fitted with a Rotator

Rotator Option

The Intermercato TG12SR5 can be fitted with a Rotator to allow your grapple to rotate 360 degrees.

There are 2 types of rotators available to suit your application.

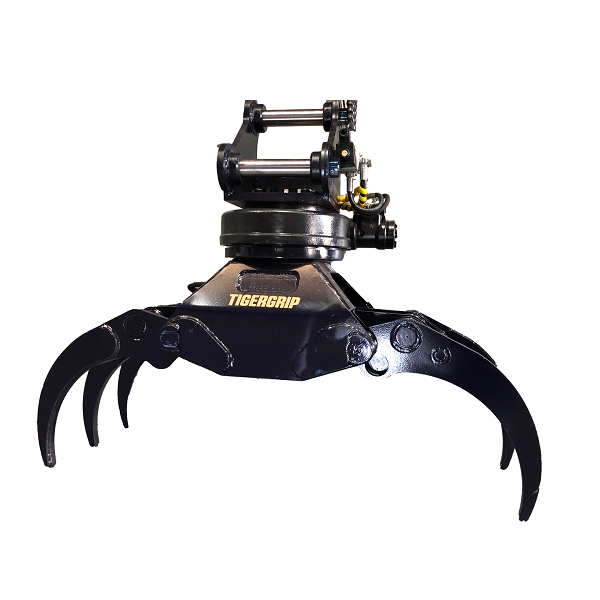

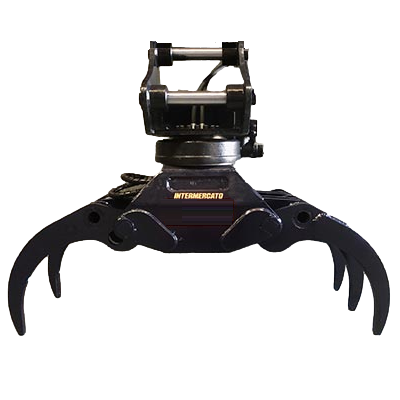

1. WD7 Worm Drive

Features

  • Specially designed low ratio worm drive
  • Holds steady and any angle
  • Steel gears and flange for increased durability
  • High pressure construction
  • High torque
  • Optimised positioning performance
  • Ultra compact design
  • Endless 360 degree rotation
  • Weight 40Kg (Not recommended for 1t -1.5t machines)

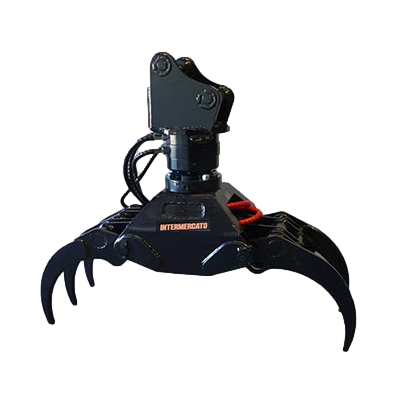

2. RMR 2 G-rotor

Features

  • Fast operation
  • Endless 360 degree rotation
  • High Torque
  • Steel flange for increased durability
  • Ultra compact design
  • High pressure construction
  • Forged drive shafts and large tapered roller bearings resist high axial & radial loading
  • Weight 20Kg (Not recommended for 1t machines)

Intermercato TG12SR5 Grapples are Perfect for

Airman AX10UAX17U
Bobcat E10, 418, 324, E17, E20
Case CX17
Cat 300.9, 301.5, 301.6, 301.7, 301.8, 302
Eurocomach ES10, ES12, ES18ZT
Hitachi ZX10, ZX17U
Hyundai
R16, R17
JCB 8008, 18Z
Kobelco SK08, SK12, SK17SR, SK20SR
Komatsu PC18MR
Kubota K008, KX41, KX016, KX018, U17
New Holland E17C
Sany SY16
Takeuchi TB210, TB016, TB215, TB216
Volvo EC18
Wacker Neuson 803, ET16, ET18
XCMG XE17
Yanmar SV08, Vio12,Vio17, Vio20
Yuchai YC08, YC15, YC18

And all other makes and models in the 1t to 2t Class Range

Please provide machine make & model and hydraulic coupler type in Customer Comments

The head brackets are made to order. Please allow 7-10 days to manufacture the head bracket and shipping.

Rotator Option: Please note that the rotator requires 2x pairs of hydraulic auxiliaries. Circuit A for the the Grab and curcuit B for the Rotator.

If your machine does not have a second auxiliary circuit we can add a 6 Port Diverter to the grapple. This will need power from your machine. A cable will be supplied with an Anderson Plug and contact your local auto electrican for switching options.

Installation of the electrical curcuit is available at our Brisbane Warehouse.

Price includes delivery Australia wide.

* Price does not include GST. GST will be calculated on check-out.
