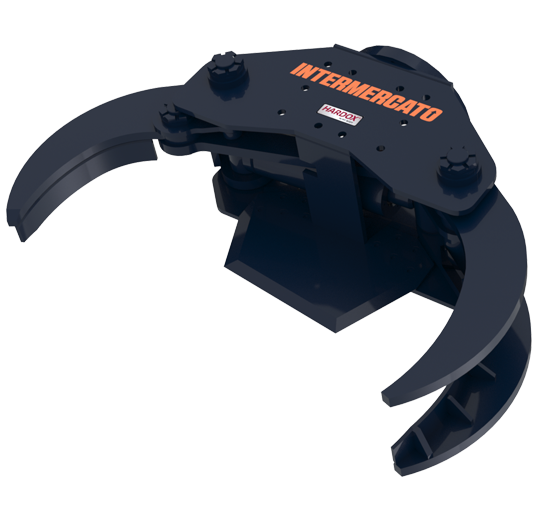

Intermercato Excavator Shears 8 - 15T

From $17,629.00 AUD
GST is included in price. Shipping calculated at checkout.

Title: CLICK HERE TO CHOOSE OPTION

Title: CLICK HERE TO CHOOSE OPTION
Intermercato Excavator Shears 8 - 15T

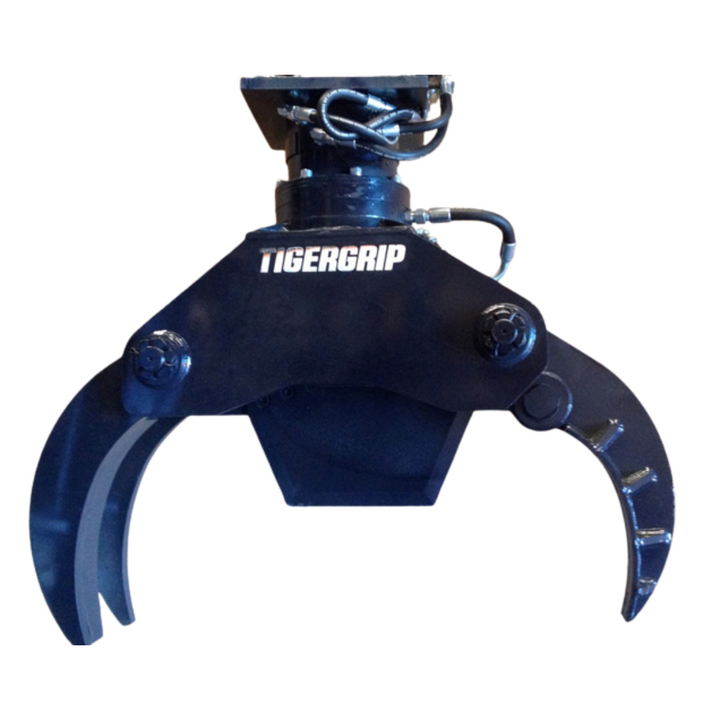

Excavator Shears 8 - 15T + Rigid Mount Rotator

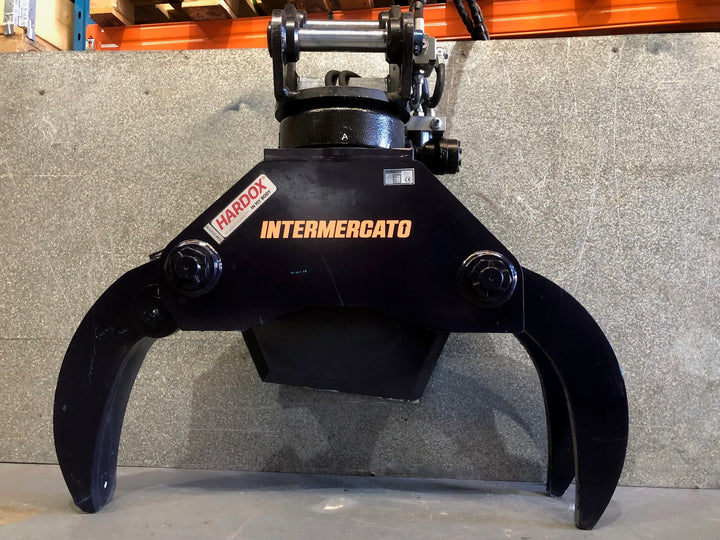

Excavator Shears 8 - 15T + Worm Drive Rotator
Description

Intermercato released their excavator harvesting shears a few years ago in Europe and it increased the efficiency of harvesting systems overnight in small scale forestry.

The simple robust fixed knife design has a minimum of moving parts to ensure a long life with little maintenance. The reinforced grapple body is equipped with massive rams to develop huge biting forces.

Aussie versions have upgraded double bevel blades engineered from Swedish 450 grade hardox. The blade can also be unbolted to allow full use of the grab as an accumulating grapple, doubling its effectiveness on the job site (R Model).

Intermercato Excavator shears are suited to all-purpose thinning, pruning, trimming, limbing and harvesting. Ideally suited to selective limb removal on avocado and macadamia trees.

SPECIFICATIONS -
Weight: 340 Kg
Pressure: 250 Bar
Flow: 70 l/min
Cutting: 74 kN
Rigid: 8 - 15 ton
Piston Diam.: 70mm
Cylinder Diam.: 125mm
Blade: 15mm

Three Intermercato shears are produced:

  • Intermercato 210 model - designed for up to 210mm diameter material. The smallest shear with a lighter weight allowing your mini excavator to maintain its capacity. Designed for selective thinning, pruning and trimming.
  • Intermercato 250 model - designed for up to 250mm diameter wood. It has a huge 74kN of crushing force. This is often the favourite of the avocado and macadamia farms for selective limb removal.
  • Intermercato 300 model - the largest shear for use on excavators 10-20 tonnes. A massive 120kN of grapple force and opening width of 1400mm. Ideal for land clearing, energy extraction, coppicing and thinning. R model designed for delimbing, selective thinning and rehandling.
