Head Brackets Weld-on or Bolt-on 30mm Pins

$485.00 AUD
GST is included in price. Shipping calculated at checkout.

Pin Specs: CLICK HERE TO CHOOSE OPTION

Pin Specs: CLICK HERE TO CHOOSE OPTION
30P/85C/100E
30P/90C/100E
30P/105C/110E
30P/120C/120E
30P/123C/110E
30P/124C/122E
30P/126C/110E
30P/132C/113E
30P/135C/115E
30P/139C/113E
30P/140C/122E
30P/142C/109E
30P/161C/126E
30P/165C/110E
30P/230C/185E
Description

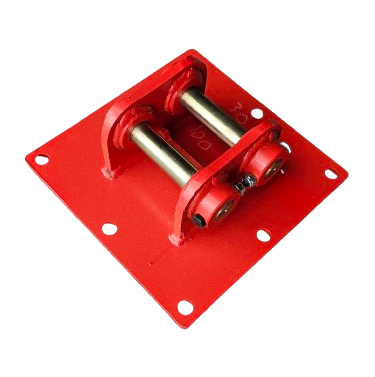

EQ Weld-on or Bolt-on Head Brackets.

Can be welded to or bolted to attachments including spreader bars, brooms, compaction wheels, etc

Plate is 320x320x14mm

Head Bracket includes:

  • 1x Bottom Plate
  • 2x Side Plates
  • 1x Gusset
  • 4x Bosses
  • 2x Pins
  • 2x Bolts and Nuts in Pins

Head Bracket is welded and painted and has 8x 17mm diameter holes equispaced.

Suitable for the following machines in numerical order of pin centres

Kubota 30P/85C/100E

XCMG 30P/90C/100E

Kato/Yanmar/Kobelco -5 & -6 30P/105C/110E

Hitachi 30P/120C/120E

Bobcat 30P/123C/110E

Komatsu 30P/124C/122E

Cat 30P/126C/110E

Takeuchi 016, 216 30P/132C/113E

Sany 30P/135C/115E

Kubota 30P/139C/113E

Hyundai/Case 30P/140C/122E

Kobelco-1 to-4/Case B series 30P/142C/109E

Takeuchi 219 30P/161C/126E

Sunward 30P/165C/110E

Wacker Neuson/S30 Euro 30P/230C/185E

All hitches may suit other makes and models with the same hitch specs.

Choose your hitch from the dropdown menu



Package Variants
Pin Specs

30P/85C/100E, 30P/90C/100E, 30P/105C/110E, 30P/120C/120E, 30P/123C/110E, 30P/124C/122E, 30P/126C/110E, 30P/132C/113E, 30P/135C/115E, 30P/139C/113E, 30P/140C/122E, 30P/142C/109E, 30P/161C/126E, 30P/165C/110E, 30P/230C/185E
