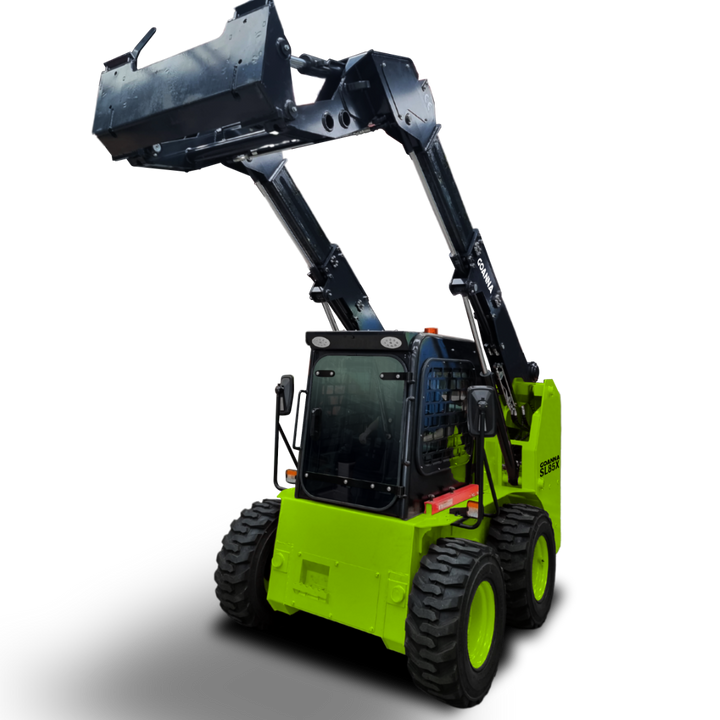

Goanna Skid Steer SL85X - 85Hp with Radial Lift and Extender Boom

$79,500.00 AUD
GST is included in price. Shipping calculated at checkout.
Description

SL Series will give you the power and control to get the job done right. SL Series features redesigned cab with a standard suspension seat and improved serviceability.

The Joystick controls allow you to control all machine functions with your hands, fingertip controls make all operations comfortable and accurate.

The detent feature continuously engages hydraulic flow without needing to hold the switch.

The SL Series gives you more than enough power and convenience to perform loading duties without any fatigue.

Travel is enabled by the left joystick control and the operation of the bucket and lift arm is by the right joystick control.

To talk to our dedicated Goanna Sales Manager call 0428 822 422


  • ISO Control System
  • Open Cabin
  • Standard Auxiliary Hydraulic Flow
  • Single Speed Travel Motors
  • Lever Locking Multi Fit/Universal Hitch
  • Hand Throttle Control
  • In Cabin 12v Auxiliary Power Supply
  • Analog Instrument Panel
  • Rotating beacon & Power supply


*All Goanna Loaders come with ISO Control Systems






Enclosed Cabin + Air Conditioning
Hydraulic Quick Hitch
Double accelerator
Self leveling system
Digital instrument panel
High Flow Auxiliary Hydraulic Flow
2 Speed Travel Motors
Rear view camera
Direction indicator
Electrical Parking Brake

2nd 12V Power Supply
Counter Weights











    Dimensions SL85
    Overall operating height (to top of bucket) 4861mm
    Overall operating height (to hinge pin) 3945mm
    Overall, Height 2057mm
    Overall Length (with bucket) 3473mm
    Overall Length {without bucket) 2571mm
    Overall Width 1886mm
    Tread Width 1502mm
    Wheelbase 1181mm
    Ground Clearance 195mm
    Dump Angle 36degrees
    Dump Height 3255mm
    Dump Reach 920mm
    Rollback at ground 27degrees
    Turn the circle front (without bucket) 1330mm
    Turn circle front (with bucket) 2116mm
    Turn circle rear 1606mm
    Overall width (without bucket) 1800mm
    Departure angle 25.5degrees

    Hydraulic pump type Piston pump
    Hydraulic pump capacity 25.4cc/rev
    Hydraulic motor type Piston motor
    Hydraulic motor capacity 364cc/rev
    Lift cylinder Φ55*Φ40*868ST*1138L
    Tilt cylinder Φ60*Φ35*472ST*708L
    Cycle times
    Lift raising time 3.94sec
    Lift lowering time 1.86sec
    Tilt dumping time 2.55sec
    Tilt rollback time 1.68sec
    Aux. pump 25.4cc/rev
    Operating pressure 200bar




    Maker / Model Kubota V3600
    Cooling type Water cooled diesel
    Displacement 3620cc
    No. of cylinder 4 cylinder in line
    Power output / rpm 84.5HP/2600rpm
    Battery volume 12V / 90AH
    Cylinder bore * stroke 98mm / 120mm
    Starting system Electric motor
    Alternator output 12V / 60AH



      SL85X
    Rated operating capacity 1200kg
    Tipping load 2720kg
    Operating weight 3990kg
    Travel speed 10.9km/h
    Bucket capacity (heaped capacity) .5m2
    Drive 4WD
    Tire (or track width for STL) 12*16.5
    Power output 84.5HP 2600rpm
    /rpm

    Cooling system 16L
    Fuel tank 108L
    Hydraulic reservoir 108L
    Engine oil 13.2L
    Chain case (each) 32L



    Please note that the build time for this product is currently 4 months from order.

    Pick up, delivery or freight from our Brisbane, Sydney or Melbourne warehouses will be arranged after pre delivery inspection. The price does not include freight from our warehouses. Metro delivery is included in the price. Metro delivery will include any areas within 150kms from Brisbane, Sydney or Melbourne.
