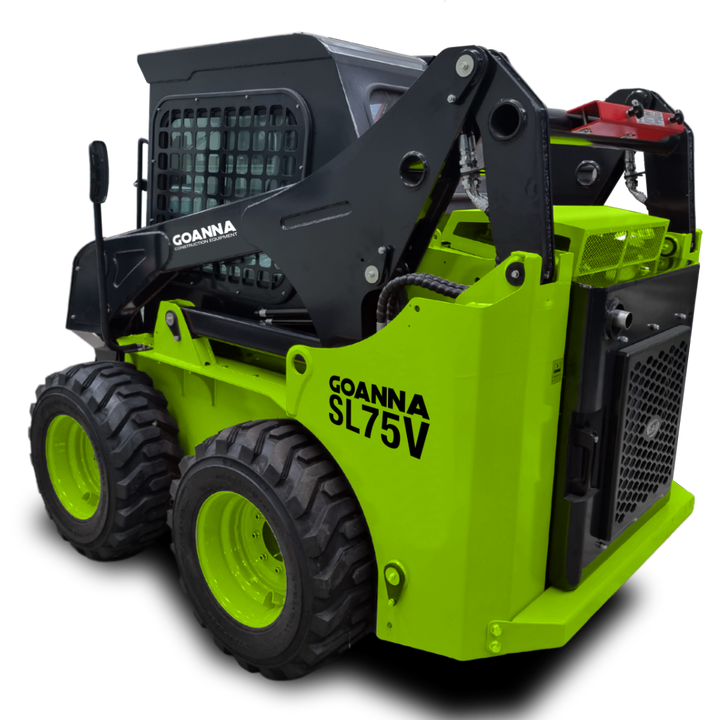

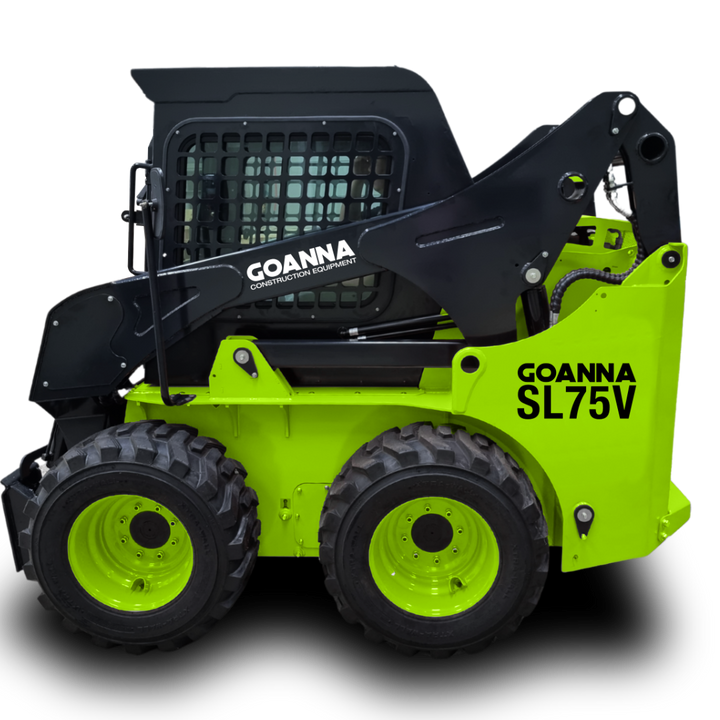

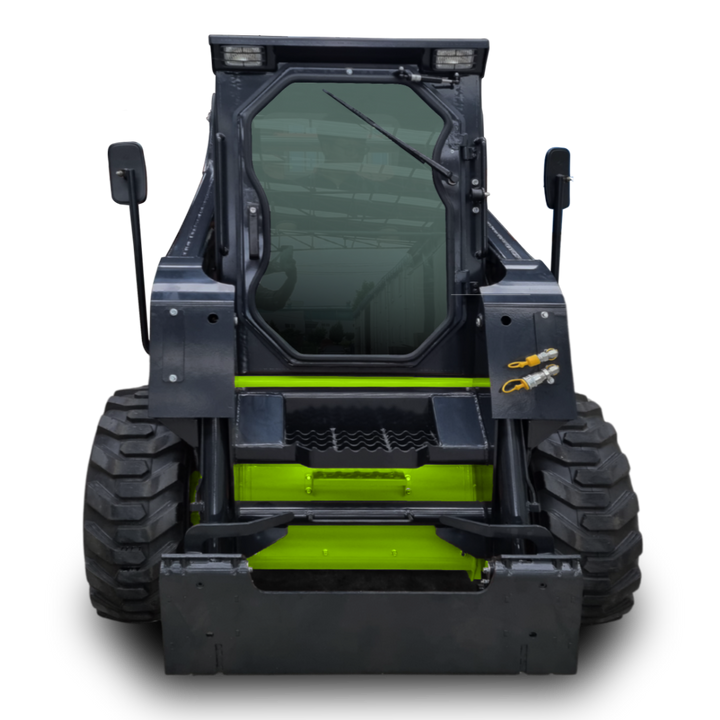

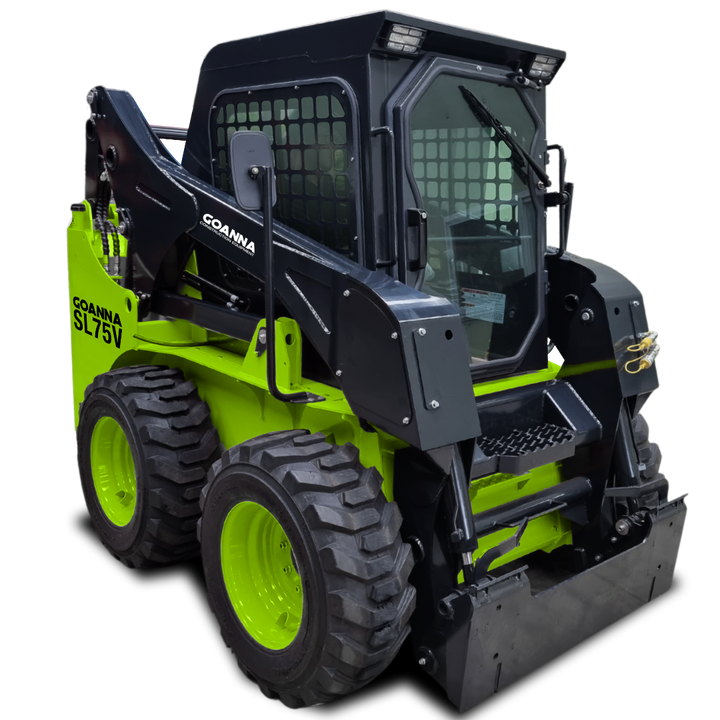

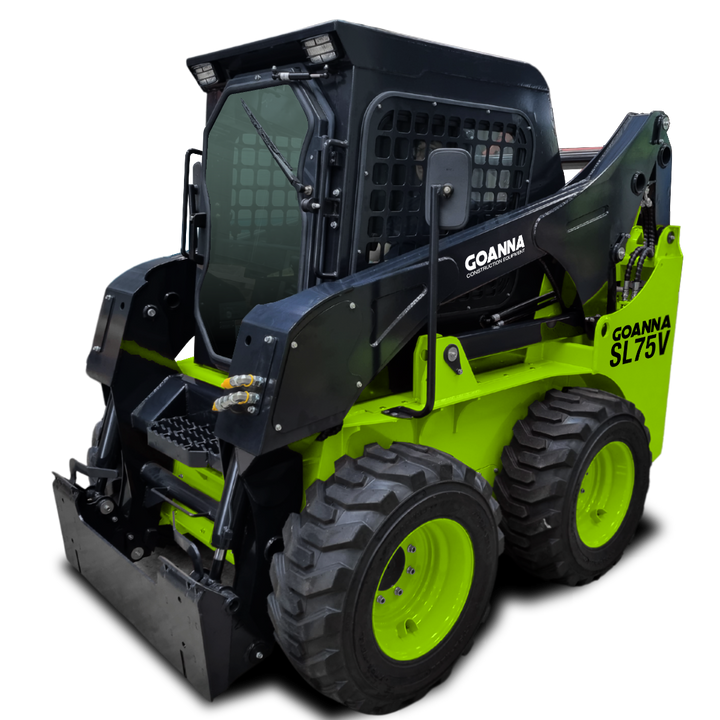

Goanna Skid Steer SL75V - 75Hp with Vertical Lift

$66,500.00 AUD
GST is included in price. Shipping calculated at checkout.

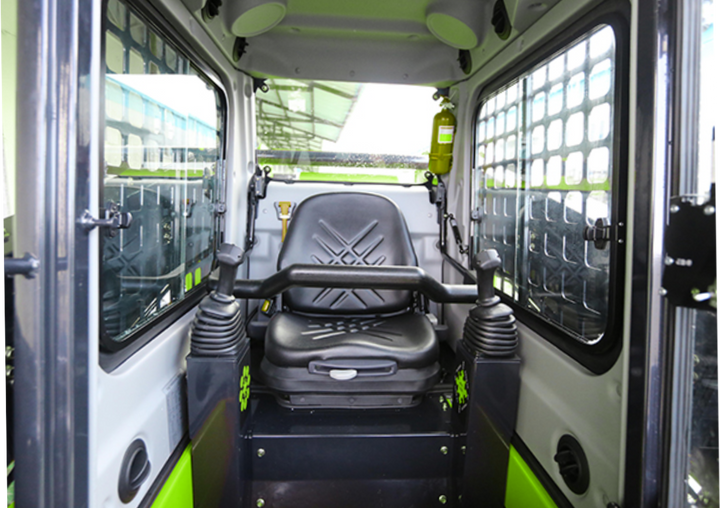

SL Series will give you the power and control to get the job done right. SL Series features redesigned cab with a standard suspension seat and improved serviceability.

The Joystick controls allow you to control all machine functions with your hands, fingertip controls make all operations comfortable and accurate.

The detent feature continuously engages hydraulic flow without needing to hold the switch.

The SL Series gives you more than enough power and convenience to perform loading duties without any fatigue.

Travel is enabled by the left joystick control and the operation of the bucket and lift arm is by the right joystick control.

To talk to our dedicated Goanna Sales Manager call 0428 822 422

  • ISO Control System
  • Open Cabin
  • Standard Auxiliary Hydraulic Flow
  • Single Speed Travel Motors
  • Lever Locking Multi Fit/Universal Hitch
  • Hand Throttle Control
  • In Cabin 12v Auxiliary Power Supply

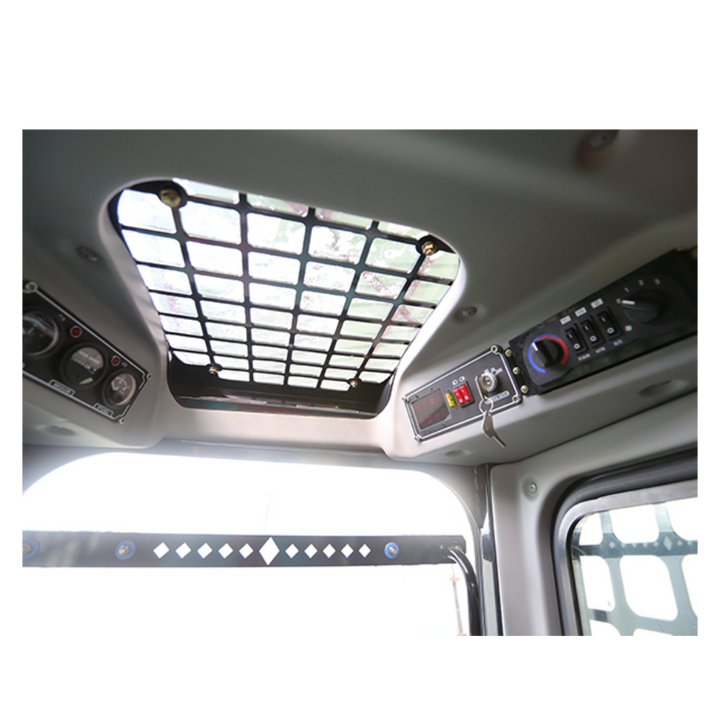

  • Analog Instrument Panel
  • Rotating beacon & Power supply

*All Goanna Loaders come with ISO Control Systems

Enclosed Cabin + Air Conditioning
Hydraulic Quick Hitch
Double accelerator
Self leveling system
Digital instrument panel
High Flow Auxiliary Hydraulic Flow
2 Speed Travel Motors
Rear view camera
Direction indicator
Electrical Parking Brake
2nd 12V Power Supply
Counter Weights

    Dimensions SL75V
    Overall operating height (to top of bucket) 3880mm
    Overall operating height (to hinge pin) 2962mm
    Overall, Height 2064mm
    Overall Length (with bucket) 3520mm
    Overall Length {without bucket) 2586mm
    Overall Width 1810mm
    Tread Width 1388mm
    Wheelbase 1178mm
    Ground Clearance 211mm
    Dump Angle 41degrees
    Dump Height 2300mm
    Dump Reach 851mm
    Rollback at ground 26degrees
    Turn the circle front (without bucket) 1288mm
    Turn circle front (with bucket) 2047mm
    Turn circle rear 1214mm
    Overall width (without bucket) 1696mm
    Departure angle 25.5degrees

    Hydraulic pump type Piston pump
    Hydraulic pump capacity 25.4cc/rev
    Hydraulic motor type Piston motor
    Hydraulic motor capacity 364cc/rev
    Lift cylinder Φ55*Φ40*868ST*1138L
    Tilt cylinder Φ60*Φ35*472ST*708L
    Cycle times
    Lift raising time 3.94sec
    Lift lowering time 1.86sec
    Tilt dumping time 2.55sec
    Tilt rollback time 1.68sec
    Aux. pump 25.4cc/rev
    Operating pressure 200bar


    Maker / Model Kubota V3600
    Cooling type Water cooled diesel
    Displacement 3620cc
    No. of cylinder 4 cylinder in line
    Power output / rpm 75HP/2600rpm
    Battery volume 12V / 90AH
    Cylinder bore * stroke 98mm / 120mm
    Starting system Electric motor
    Alternator output 12V / 60AH


    Rated operating capacity 1050mm
    Tipping load 2210mm
    Operating weight 3350mm
    Travel speed 11.4km/h
    Bucket capacity (heaped capacity) .45m2
    Drive 4WD
    Tire (or track width for STL) 12*16.5
    Power output 74HP 2500rpm

    Cooling system 16L
    Fuel tank 77L
    Hydraulic reservoir 60.3L
    Engine oil 13.2L
    Chain case (each) 24L


    Please note that the build time for this product is currently 4 months from order.

    Pick up, delivery or freight from our Brisbane, Sydney or Melbourne warehouses will be arranged after pre delivery inspection. The price does not include freight from our warehouses. Metro delivery is included in the price. Metro delivery will include any areas within 150kms from Brisbane, Sydney or Melbourne.
