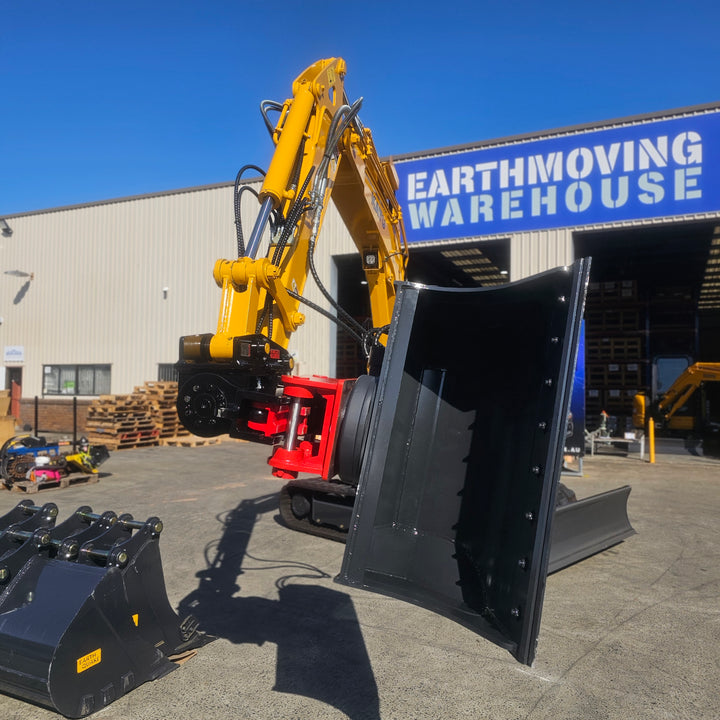

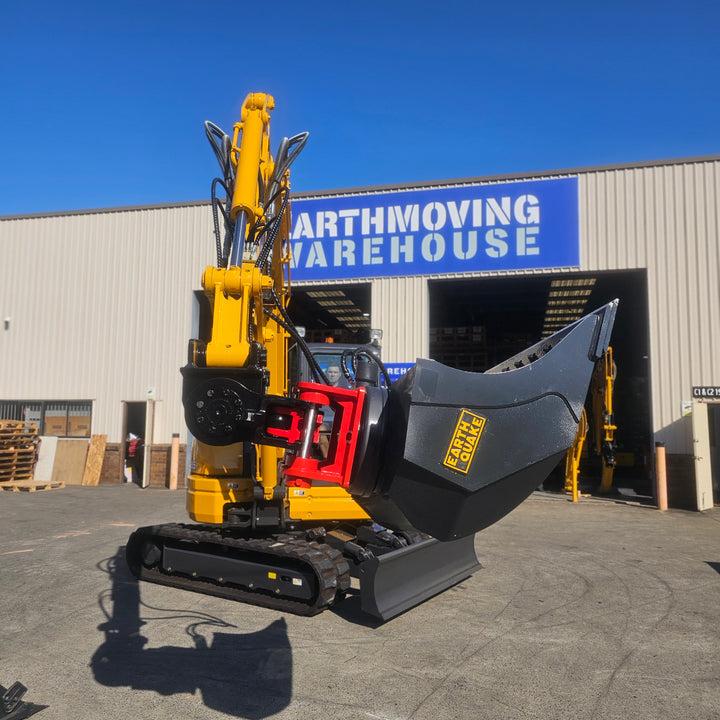

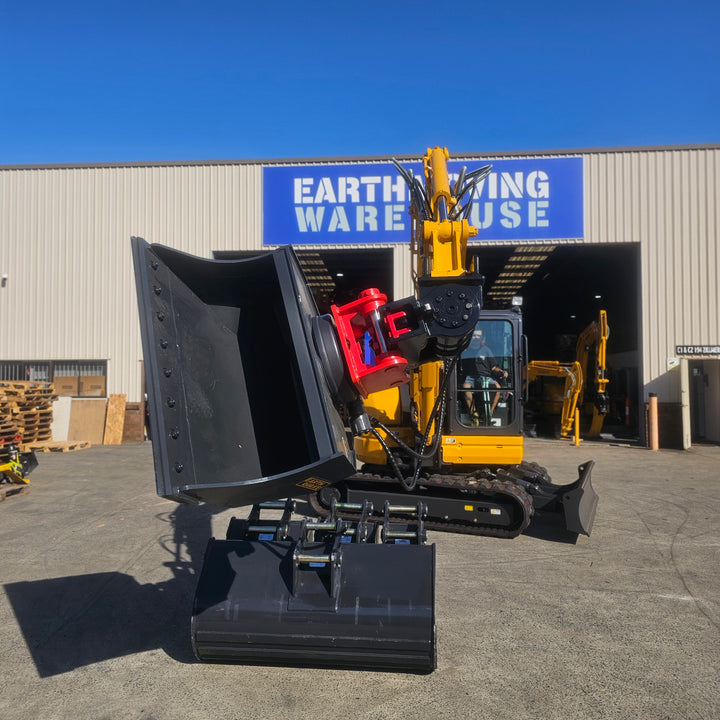

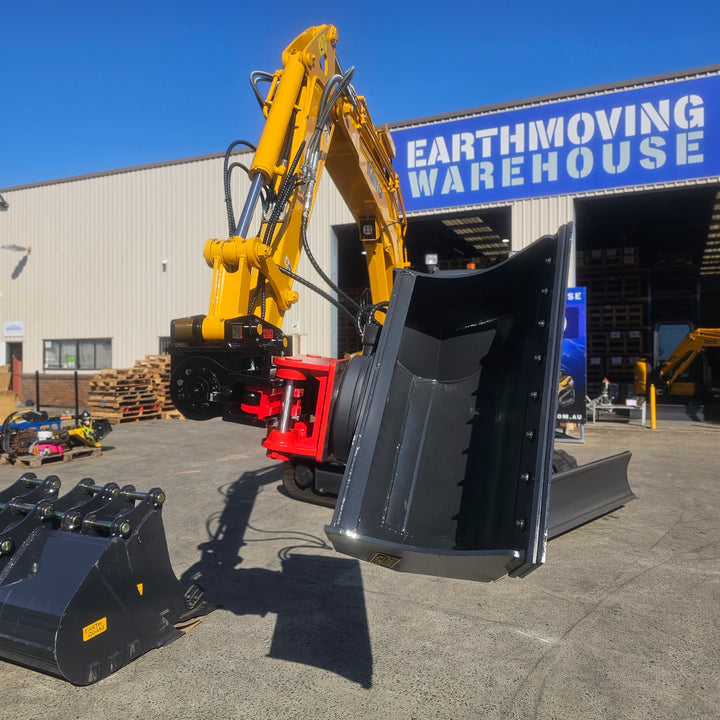

EarthQuake Rota-Bucket 360 Degree Rotating Trim Buckets

Rotationalise Your Excavator's Capability

Would you like a Tilt Rotator but they are too expensive?

Do you want to be more productive?

Owning and operating the EarthQuake Rota-Bucket - 360 Degree Rotating Trim Bucket - offers excellent key advantages:

• Rota-Bucket Features and Benefits:

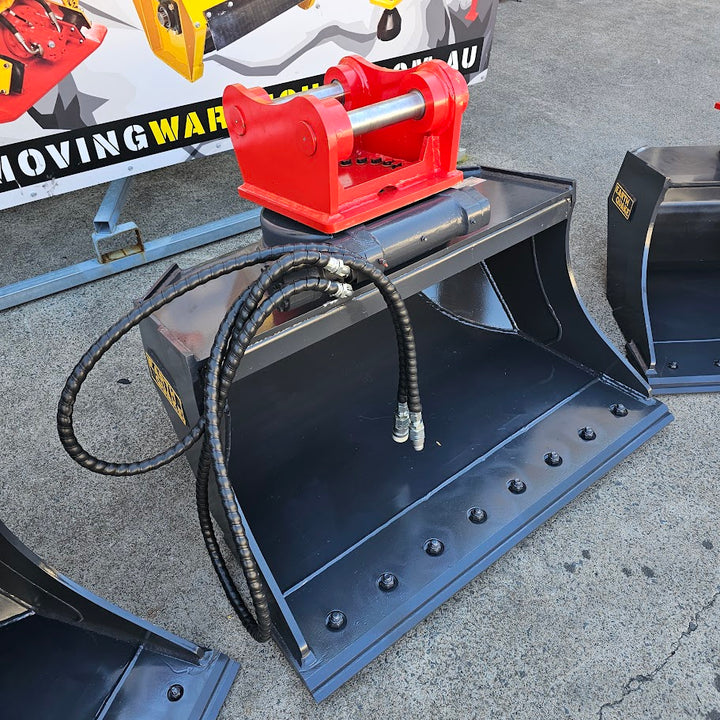

The "Plug and Play" set up of the Earthquake Rotating Trim Buckets enables the operator to add a trim bucket with 360 degree rotation, in both directions.

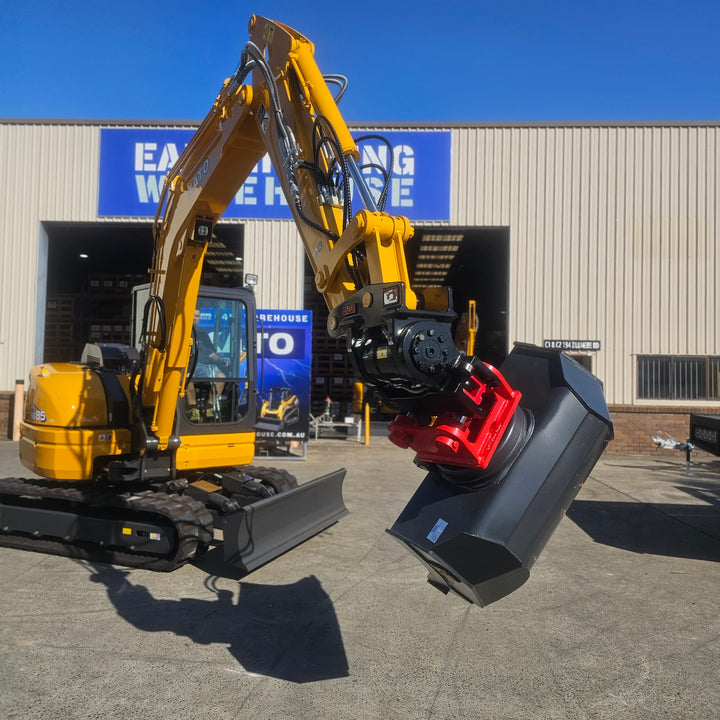

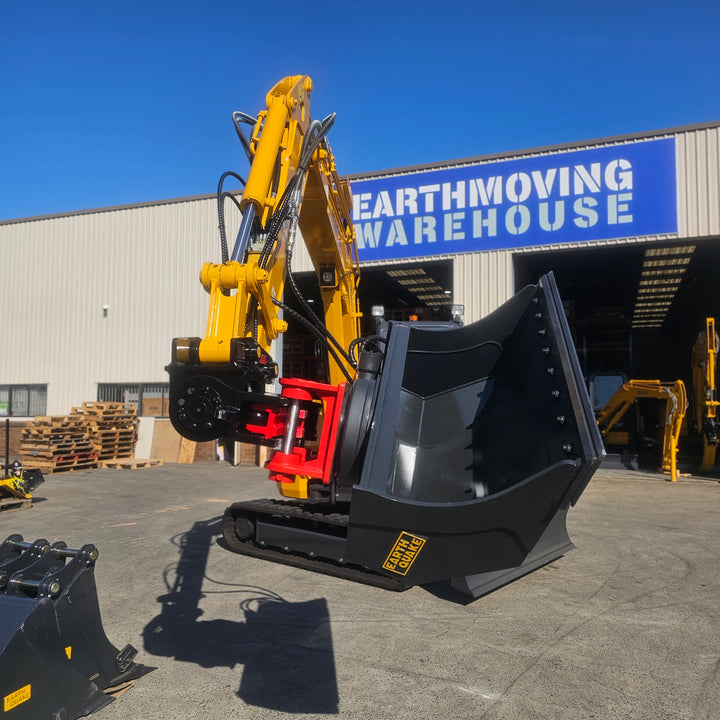

When adding rotating bucket to a machine with a tilting quick hitch you instantly get a tool similar in function to tilt rotator.

The Earthquake Rotating Trim Buckets also have the advantage of offering the optional Tilting Head Bracket, for best use on excavators with a standard quick hitch.

The Tilting Head Bracket gives the operator the opportunity to tilt the bucket when trimming, and when turning the bucket to maintain the material in the bucket.

• Rota-Bucket Enhanced Efficiency and Productivity:

Increase Uptime: The specialised design provides better control over material flow, allowing for more precise actions and increased productivity.

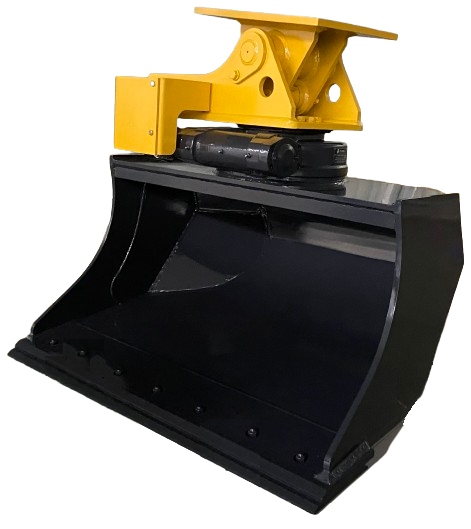

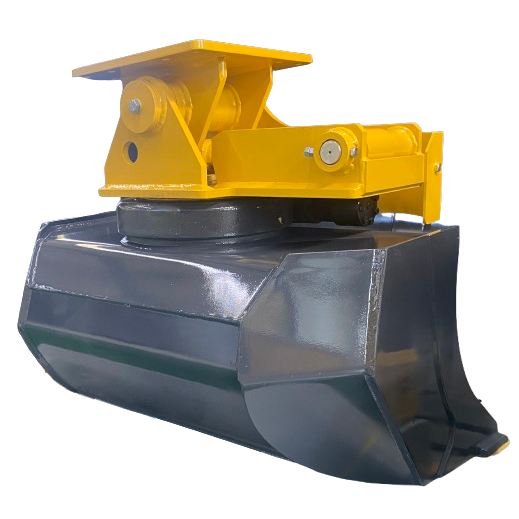

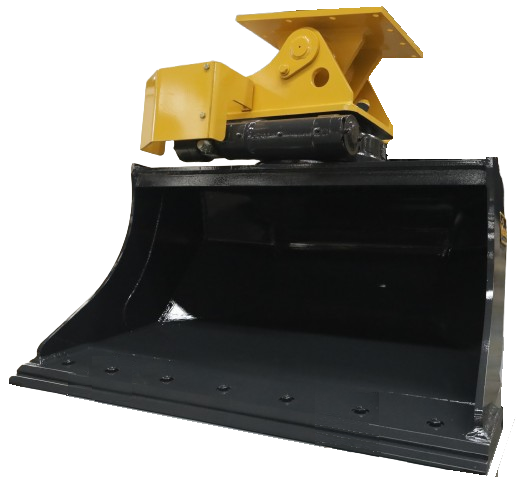

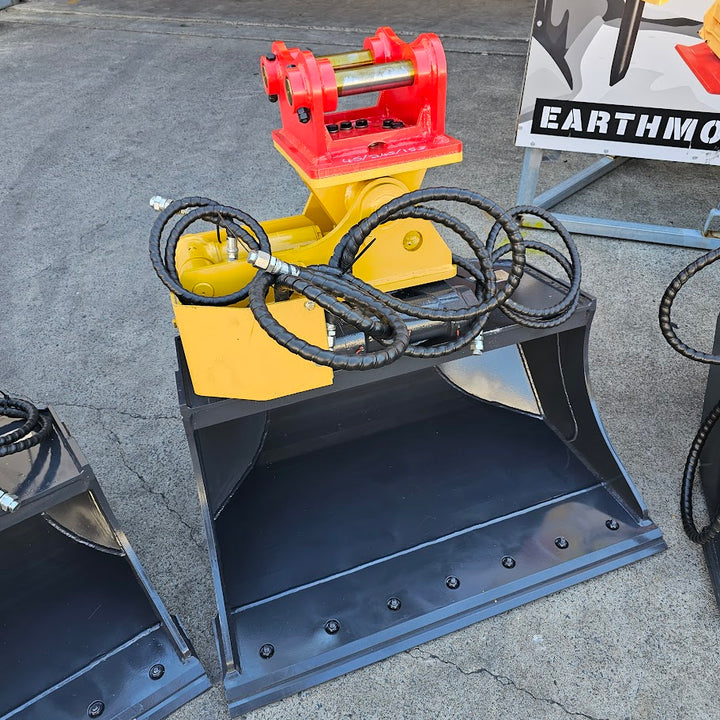

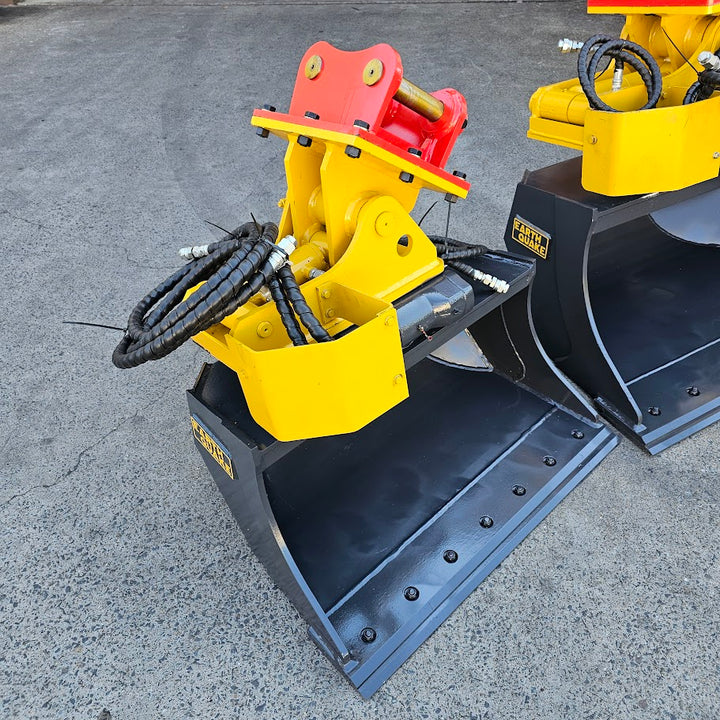

• Rota-Bucket with Tilt-Attach:

The EQ Rota-Bucket is also available with Tilt-Attach. The TA is added if your machine does not have a Tiltin Hitch. This enables the bucket to be rotated and tilted to prevent materials falling out of the bucket.

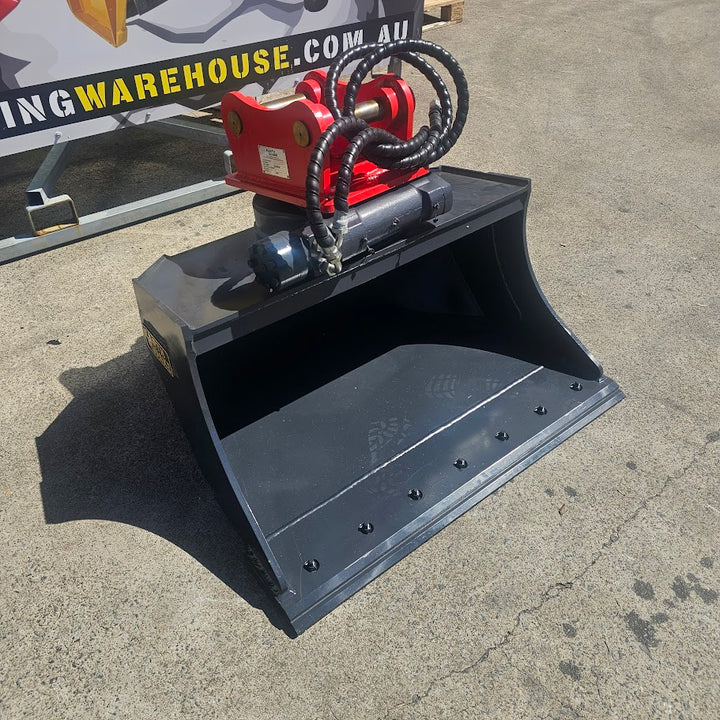

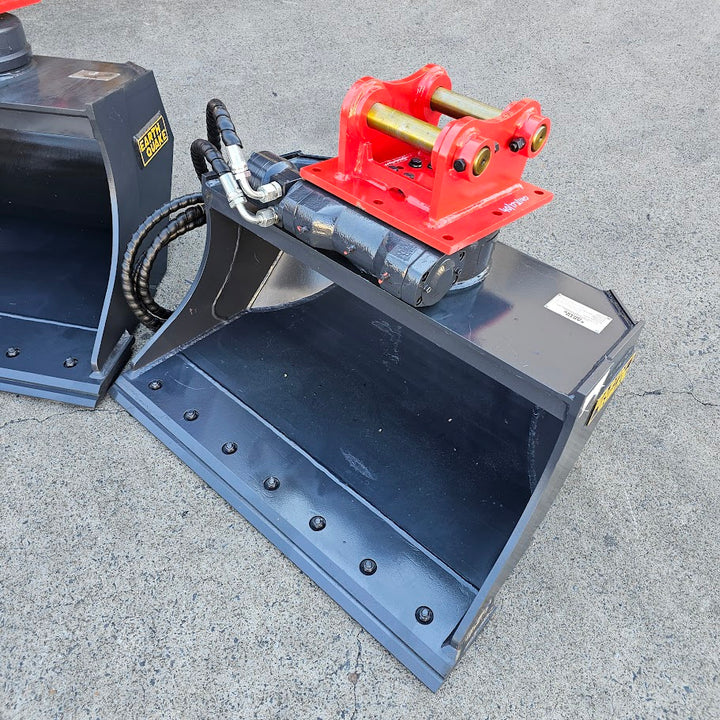

The Earthquake Rota-Buckets come standard with:

Head Bracket to suit the make and model of your machine
Bolt-on Edge
Hoses and couplers
Options of Rotating only or Tilting and Rotating

SPECIFICATIONS

Mini Excavator Series:

Model: EQ-RTB20

Carrier Weight (tonne) 1.8-2.5
Bucket Width (mm) 950
Oil Flow (lpm) 30-60
Max. Pressure (Bar): 160
Weight (kg) 130 with Rotator
Weight (kg) 147 with Rotator and Tilt Hitch

Model: EQ-RTB30

Carrier Weight (tonne) 3-4
Bucket Width (mm) 1200
Oil Flow (lpm) 30-60
Max. Pressure (Bar): 160
Weight (kg) 230 with Rotator
Weight (kg) 255 with Rotator and Tilt Hitch

Model: EQ-RTB50

Carrier Weight (tonne) 4.5-6
Bucket Width (mm) 1500
Oil Flow (lpm) 30-60
Max. Pressure (Bar): 160
Weight (kg) 270 with Rotator
Weight (kg) 300 with Rotator and Tilt Hitch

Model: EQ-RTB80

Carrier Weight (tonne) 6.5-10
Bucket Width (mm) 1500
Oil Flow (lpm) 30-60
Max. Pressure (Bar): 160
Weight (kg) 450 with Rotator
Weight (kg) 480 with Rotator and Tilt Hitch

Excavator Series:

Model: EQ-RTB140

Carrier Weight (tonne) 11-15
Bucket Width (mm) 1800
Oil Flow (lpm) 60-80
Max. Pressure (Bar): 180
Weight (kg) 750 with Rotator
Weight (kg) 800 with Rotator and Tilt Hitch

Model: EQ-RTB200

Carrier Weight (tonne) 18-23.5
Bucket Width (mm) 2000
Oil Flow (lpm) 70-80
Max. Pressure (Bar): 180
Weight (kg) 1165 with Rotator
Weight (kg) 1240 with Rotator and Tilt Hitch

The EarthQuake Rota-Bucket 360 Degree Rotating Trim Bucket is the ultimate solution for earthmoving contractors who don't have a tilt rotator. This innovative attachment gives your excavator the functionality of a tilt rotator at a fraction of the cost, making it the smartest upgrade you can make to increase efficiency and profitability.

Key Benefits for Contractors

• Massive Increase in Versatility: The Rota-Bucket's continuous 360-degree rotation lets you perform intricate tasks and work in tight spaces without constantly repositioning your machine. This means less time moving the excavator and more time moving dirt, resulting in faster project completion.

• Precision Grading and Trimming: Rotating excavator buckets achieve perfect slopes and smooth finishes with ease. The rotating function allows for fine-tuning the bucket's angle, providing the precision needed for final trim work, trenching, and detailed landscaping jobs.

• Boost Productivity and Profitability: By eliminating the need for manual labor on-site and reducing the time spent on each task, you can take on more jobs and complete them faster. The Rota-Bucket pays for itself through increased output and reduced operational costs.

• Simple and Cost-Effective Solution: Unlike an expensive tilt rotator, the Rota-Bucket is a straightforward attachment that's easy to install and compatible with standard auxiliary hydraulic lines. It's the most economical way to unlock the full potential of your existing excavator fleet.

How It Works

Designed for simplicity and durability, the rotating excavator bucket attaches directly to your excavator's existing tilting hitch. The continuous two-way rotation is powered by your machine's standard hydraulics, delivering smooth and reliable performance. With its low-profile design, you maintain your machine's breakout force and digging power, ensuring you don't compromise on performance for functionality.

Upgrade your operation with the EarthQuake Rota-Bucket and experience the difference that 360-degree rotation can make.

By investing in an EarthQuake rotating trim bucket, operators can enhance their efficiency, reduce costs, improve material handling, and enhance operator safety and comfort in challenging excavation environments.

Note: The Tilt-Attach, on the rotating excavator bucket, option requires a secondary hydraulic circuit to operate and function correctly. Example: The main auxiliary hydraulics control the rotation and the secondary auxiliary operate the tilt function.

On the Price Request form please make sure to add your machine make and model.

Contact us on 0459 WAREHOUSE (That's 0459 927 346).
