EarthQuake Crusher Buckets for Excavators

EarthQuake Excavator Crusher Buckets

The Earthquake Excavator Crusher Buckets (ECBs) work by utilizing a powerful jaw-like crushing mechanism integrated directly into the bucket, powered by the hydraulics on an excavator. Here's a simplified breakdown:

1. Material Loading: The excavator operator uses the bucket to scoop up the material to be crushed (e.g., concrete, asphalt, rock).
2. Crushing Action: The crushing mechanism within the bucket is activated. This typically involves:
   • Hydraulic Power: The excavator's hydraulic system powers the crushing jaws.
   • Jaw Movement: The jaws move rapidly towards and away from each other, applying significant force to the material within the bucket.
   • Material Reduction: The material is compressed and broken down into smaller pieces.
3. Material Discharge: Once the material is crushed to the desired size, it can be discharged from the bucket.

Key Components of Crusher Buckets:

• Direct Drive: 30% increase in effiency over belt drive crushers.
• Jaws and Components: 90% of components, including the jaws are made of Hardox high-strength steel. Top and Bottom Jaws are interchangeable.
• Optional Automatic Inverter: If the jaws become blocked the drum automatically inverts its direction to move the product away from the jaw crushing point.
• Hydraulic System: This provides the power for the jaw movement.
• Control System: This allows the operator to control the crushing process.

Benefits of Crusher Buckets:

• EarthQuake Crusher Buckets offer several significant advantages for owners and operators:

  • Increased Productivity:

    • On-Site Crushing: Crush materials directly on-site, eliminating the need for transportation to and from a separate crushing facility. This significantly reduces time and fuel costs.
    • Versatility: Handle a wide range of materials, including concrete, asphalt, rock, and more.
    • Efficiency: Crush materials quickly and efficiently, improving project timelines.



  • Cost Savings:

    • Reduced Transportation Costs: As mentioned, on-site crushing eliminates the need for transporting materials, leading to substantial cost savings.
    • Reduced Disposal Costs: By crushing materials on-site, you can often reuse them for backfill or other purposes, minimizing disposal costs.
    • Increased Revenue Streams: Crushed materials can be sold or reused, generating additional revenue.



  • Environmental Benefits:

    • Reduced Landfill Waste: By crushing and reusing materials, you minimize the amount of waste sent to landfills.
    • Resource Conservation: Promotes the reuse and recycling of materials, conserving natural resources.



  • Versatility:

    • Multiple Applications: Suitable for a wide range of applications, including construction, demolition, landscaping, and more.



  • Improved Safety:


    • Reduced Manual Handling: Minimizes the need for manual handling of large and heavy materials, reducing the risk of injuries.

The Earthquake Excavator Crusher Buckets are avialble in a range of sizes to suit your application.

Suiting mini excavators from 6 tonnes and excavators up to 90 tonnes.

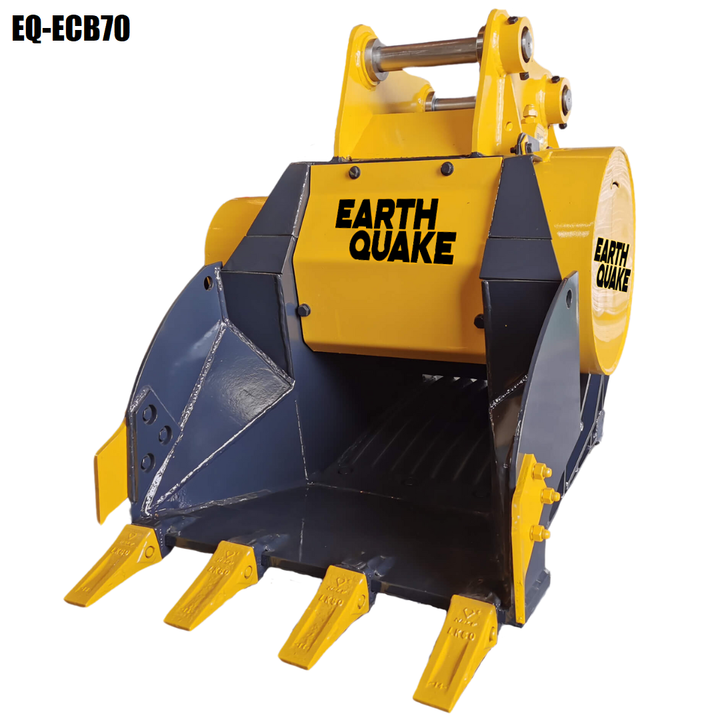

Model: EQ-ECB70

Carrier Weight (tonne) 6-10
Oil Flow (lpm) 45-55
Feed Size (mm) 400x330
Variable Output Size (mm) 15-120
Bucket Capacity (m3) 0.2
Length (mm) 1630
Width (mm) 1030
Height (mm) 1150
Weight (kg) 888

Model: EQ-ECB140

Carrier Weight (tonne) 10-18
Oil Flow (lpm) 80-100
Feed Size (mm) 400x500
Variable Output Size (mm) 15-120
Bucket Capacity (m3) 0.45
Length (mm) 1950
Width (mm) 1120
Height (mm) 1500
Weight (kg) 1360

Model: EQ-ECB200

Carrier Weight (tonne) 18-30
Oil Flow (lpm) 180-230
Feed Size (mm) 500x700
Variable Output Size (mm) 15-120
Bucket Capacity (m3) 0.75
Length (mm) 2525
Width (mm) 1325
Height (mm) 1798
Weight (kg) 3350

Model: EQ-ECB300

Carrier Weight (tonne) 30-40
Oil Flow (lpm) 190-240
Feed Size (mm) 500x1000
Variable Output Size (mm) 15-120
Bucket Capacity (m3) 1.15
Length (mm) 2353
Width (mm) 1665
Height (mm) 1576
Weight (kg) 4220

Model: EQ-ECB600

Carrier Weight (tonne) 50-70
Oil Flow (lpm) 340-360
Feed Size (mm) 670x1150
Variable Output Size (mm) 15-120
Bucket Capacity (m3) 1.5
Length (mm) 2882
Width (mm) 2105
Height (mm) 2137
Weight (kg) 6850

Model: EQ-ECB900

Carrier Weight (tonne) 75-90
Oil Flow (lpm) 440-460
Feed Size (mm) 670x1315
Variable Output Size (mm) 15-120
Bucket Capacity (m3) 2.25
Length (mm) 2882
Width (mm) 2270
Height (mm) 2137
Weight (kg) 7668

Overall, The Earthquake Rotating Multi-Processors are powerful and versatile attachments that play a crucial role in demolition, material processing and recycling. Their ability to reduce material size, improve efficiency, and minimize waste makes them valuable assets for various industries.

A case drain is required for the ECB's

Attention!

Made to order - This item is not held in-stock.

Earthquake Excavator Crusher Buckets are made to order. Production time is usually between 4 and 6 weeks depending on the attachment. On the Price Request form please make sure to add your machine make and model.

Contact us on 0459 WAREHOUSE (That's 0459 927 346).
