Digga Rock Bucket with Optional Grapple (Tractor)

From $3,528.00 AUD
GST is included in price. Shipping calculated at checkout.

Size: Choose an option

Size: Choose an option
1740mm Rock Bucket - Euro Hitch
1900mm Rock Bucket - Euro Hitch
1900mm Rock Bucket - Mc Cormick - 60-160
1900mm Rock Bucket - Mc Cormick - Old Style Pickup
2060mm Rock Bucket - Euro Hitch
1740mm Rock Bucket - For Bolt-On-Frame
1900mm Rock Bucket - For Bolt-On-Frame
2060mm Rock Bucket - For Bolt-On-Frame
2222mm Rock Bucket - For Bolt-On-Frame

Optional Grapple: Choose an option

Optional Grapple: Choose an option
Bucket Only / No Grapple
Add Grapple
Description

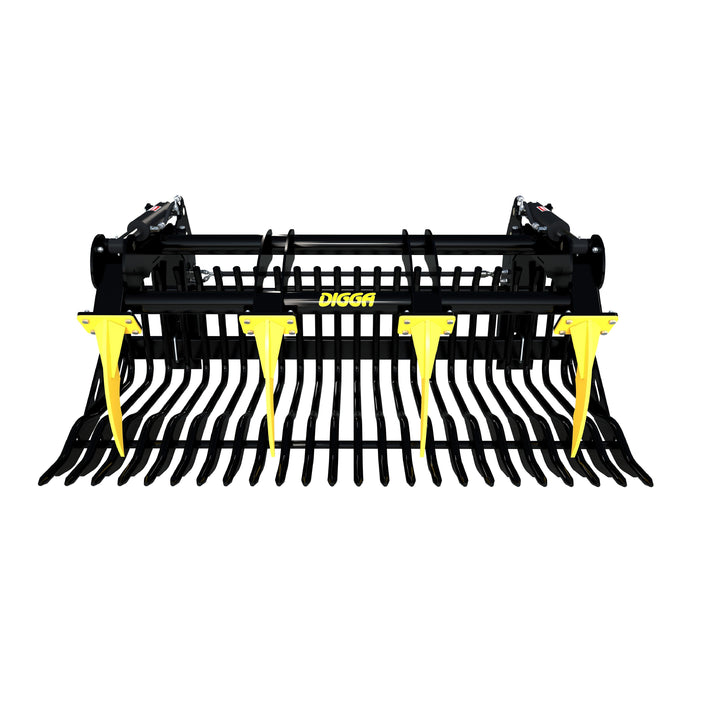

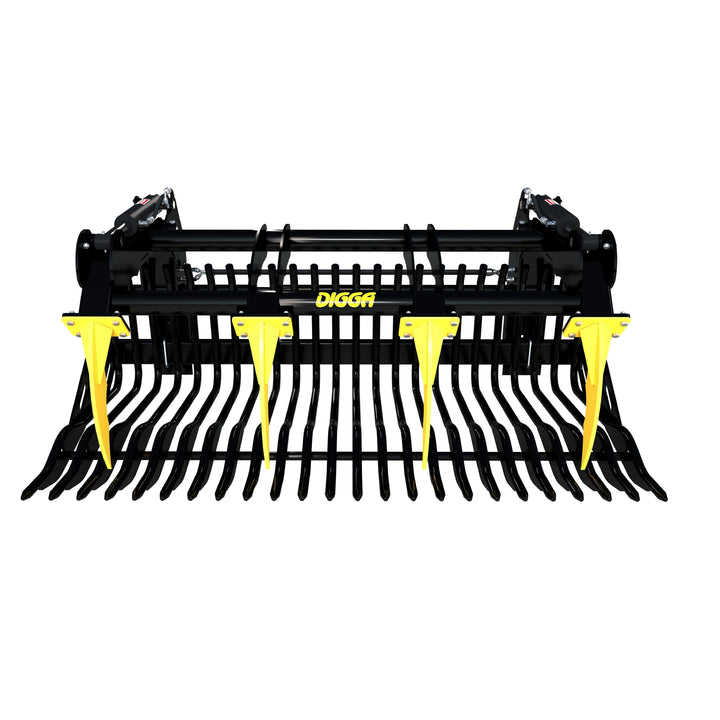

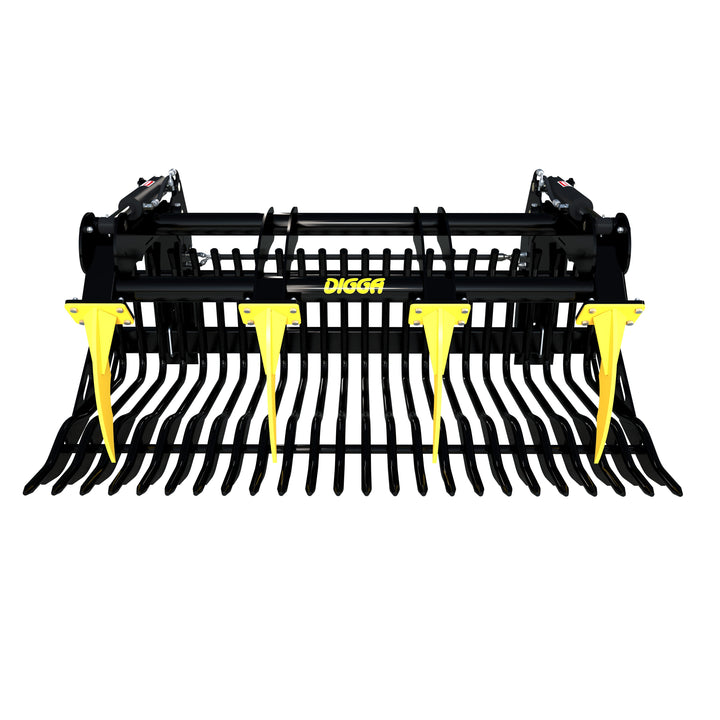

Digga Rock Bucket with Optional Grapple (Tractor)

Machine Suitability: Tractors

*This product is made to order. Please check for current build and delivery times.

Price Inclusions:

Rock Bucket with 2" Tyne Spacing, Built-In Multi-Fit Frame.

Grapple includes 1.5m Hoses and Couplers

*Bolt-On-Frame Models Require purchase of a Tractor Frame separately.

Please click here to purchase frame.

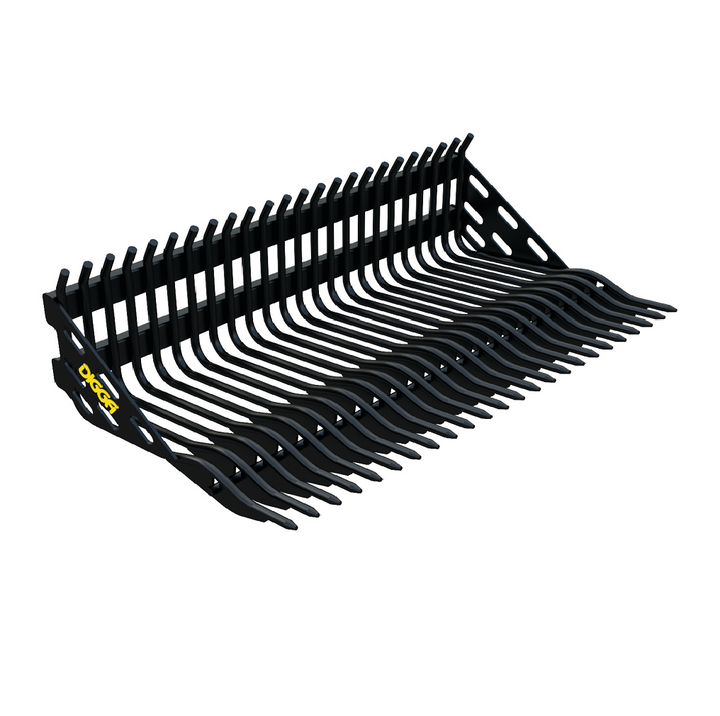

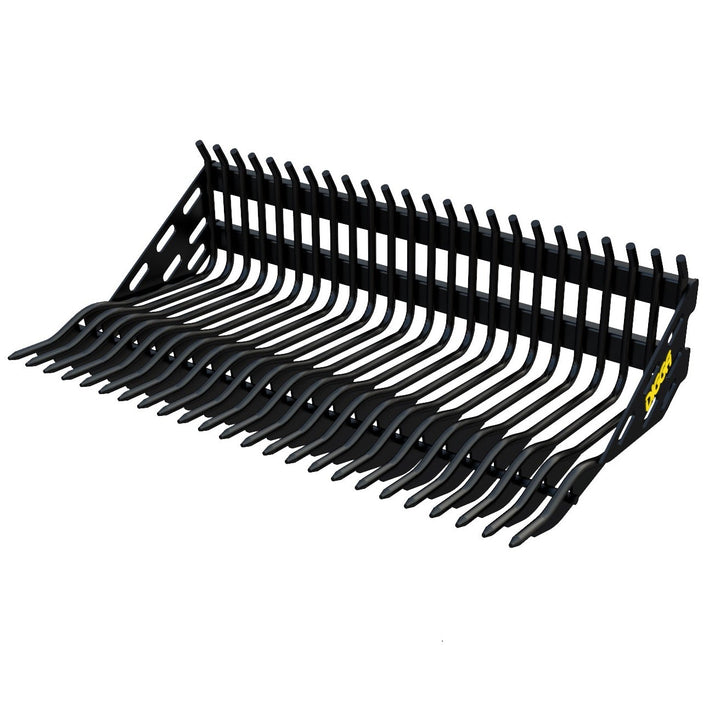

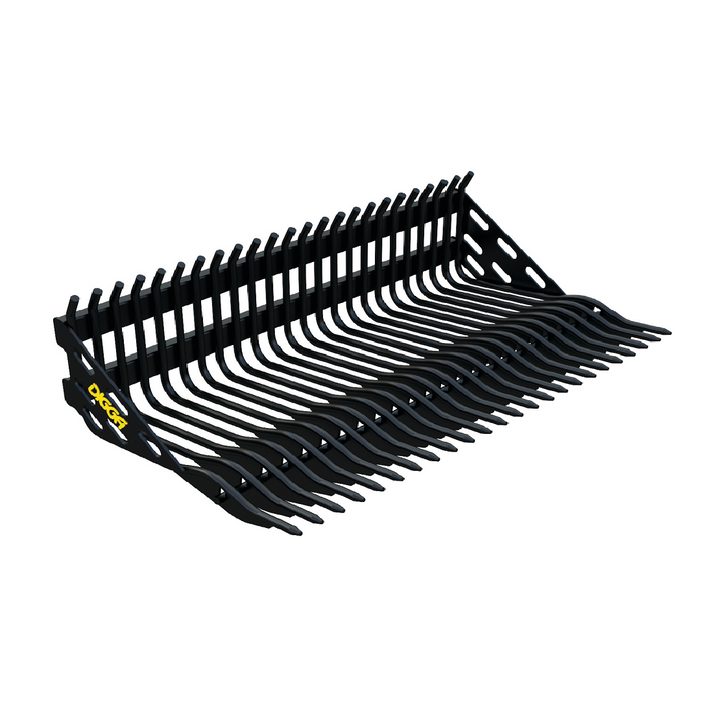

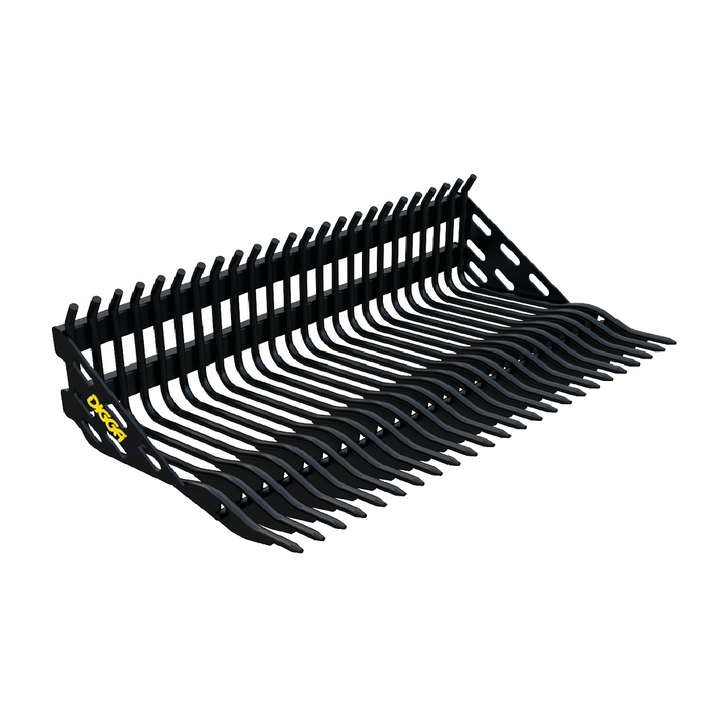

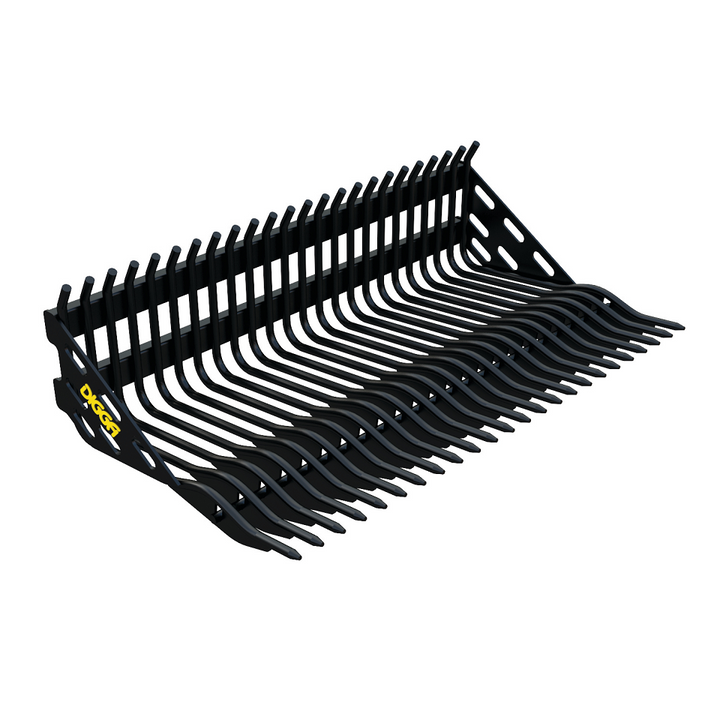

Rock Bucket Features:

Fast clean-up attachment that allows sifting out of debris and rocks. Perfect for operators wanting to minimize waste, cleaning out unwanted materials and leaving good quality soil in place.

Sizes range from 1740mm (68") through to 2222mm (87")

Manufactured from Solid 28mm 1045 grade round steel bar

52mm (2") tyne spacing

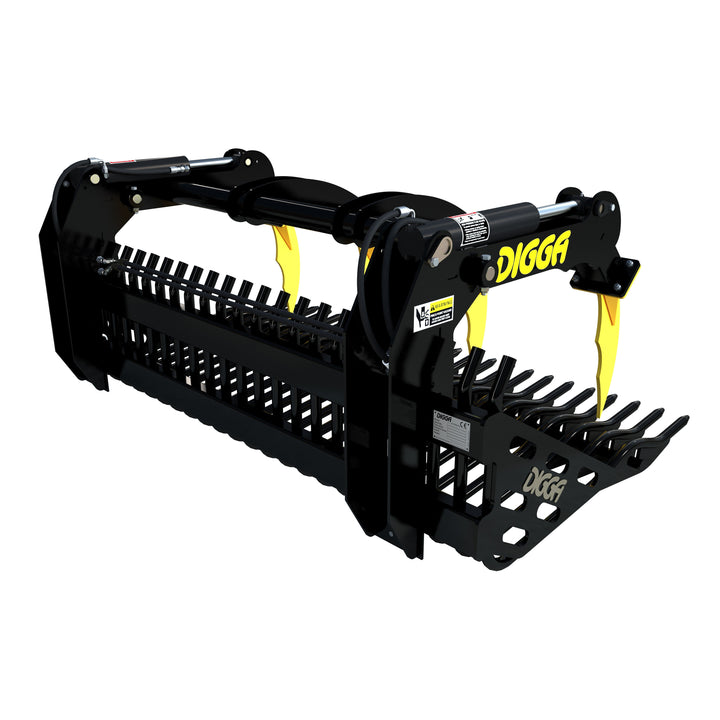

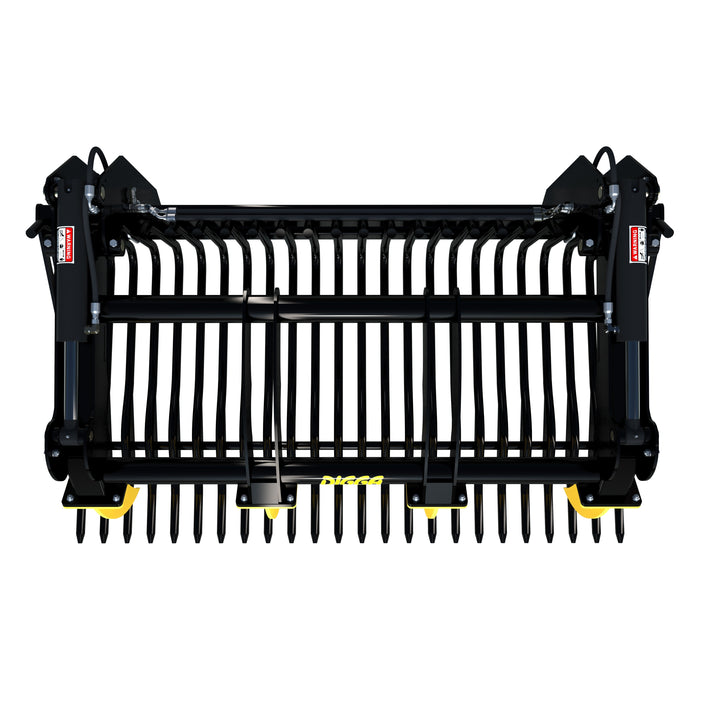

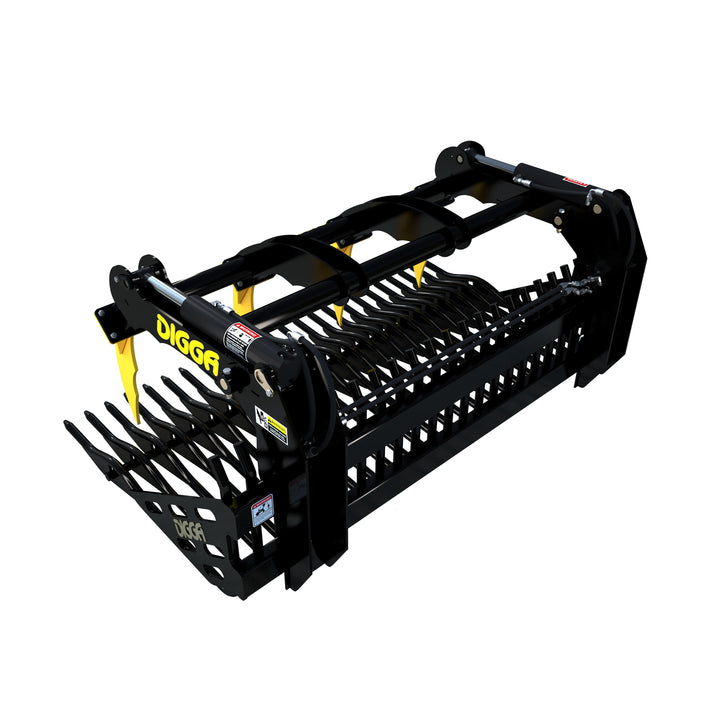

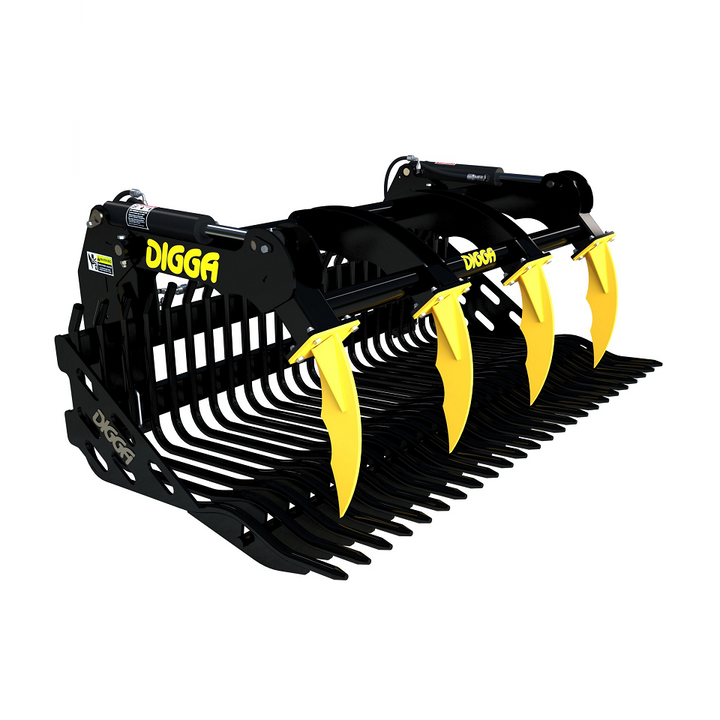

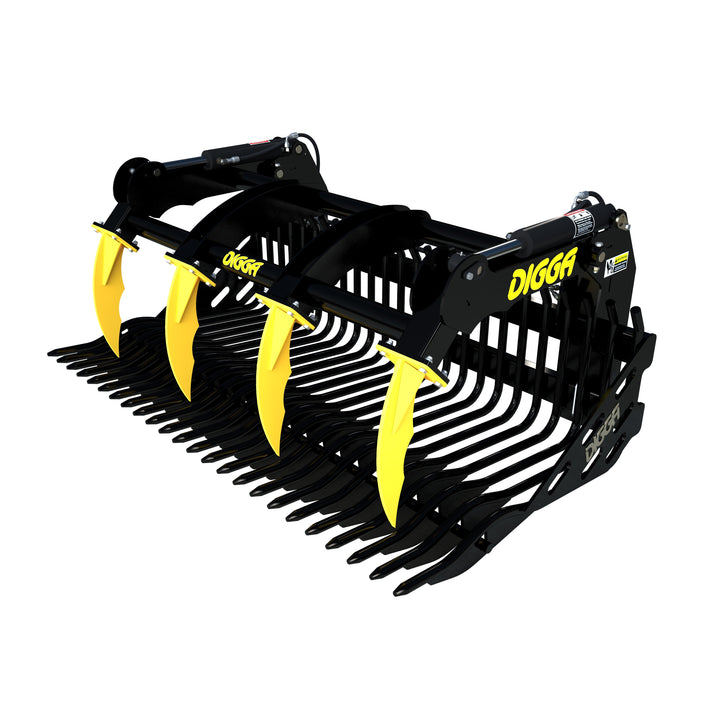

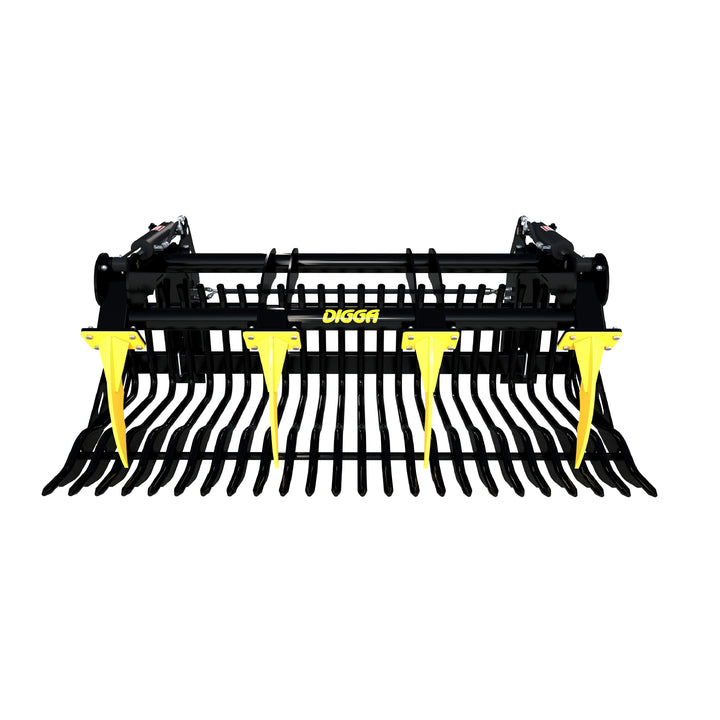

Grapple Features:

Optional Grapple is hydraulically operated, helping to secure and trap large debris in the bucket. Also perfect for waste management solutions.

Easy to assemble with replaceable Grapple teeth

Wide opening grapple with aggressive rake-back tyne design

Fits rock buckets from 1740mm (68") to 2222mm (87")

Teeth interlock with bucket tynes

Reinforced crossbar reducing bending and flexing

Spherical bearings, threaded cylinder glands and secluded grease nipples for added durability

Rock Bucket Specs:

SPECIFICATION 1740MM 1900MM 2060MM 2222MM
Weight (with multifit frame) 299 kg 324 kg 348 kg 372 kg
Length 1079mm 1079mm 1079mm 1079mm
Width (Overall) 1740mm 1900mm 2060mm 2222mm
Height 537mm 537mm 537mm 537mm
Tyne Spacing 52mm 52mm 52mm 52mm
Number of Tynes 22 24 26 28

Grapple Specs:

  RB-000058
Weight 264 kg
Width (Overall) 1648 mm
Length 1067 mm
Height (Closed) 764 mm
Opening Width 1524 mm
Package Variants
Size

1740mm Rock Bucket - Euro Hitch, 1900mm Rock Bucket - Euro Hitch, 1900mm Rock Bucket - Mc Cormick - 60-160, 1900mm Rock Bucket - Mc Cormick - Old Style Pickup, 2060mm Rock Bucket - Euro Hitch, 1740mm Rock Bucket - For Bolt-On-Frame, 1900mm Rock Bucket - For Bolt-On-Frame, 2060mm Rock Bucket - For Bolt-On-Frame, 2222mm Rock Bucket - For Bolt-On-Frame

Optional Grapple

Bucket Only / No Grapple, Add Grapple
