Digga Ram Drill - PTO Shaft Driven

  • Sale
  • Regular price $3,073.00
Shipping calculated at checkout.

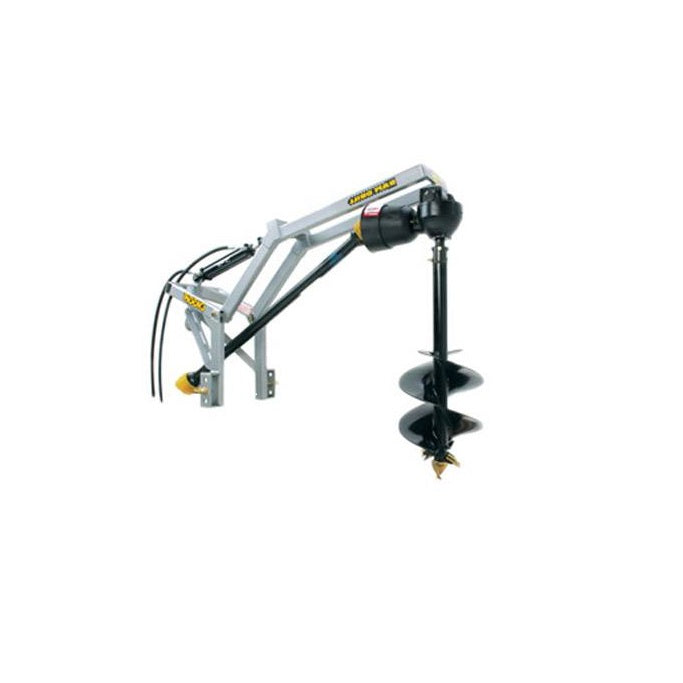

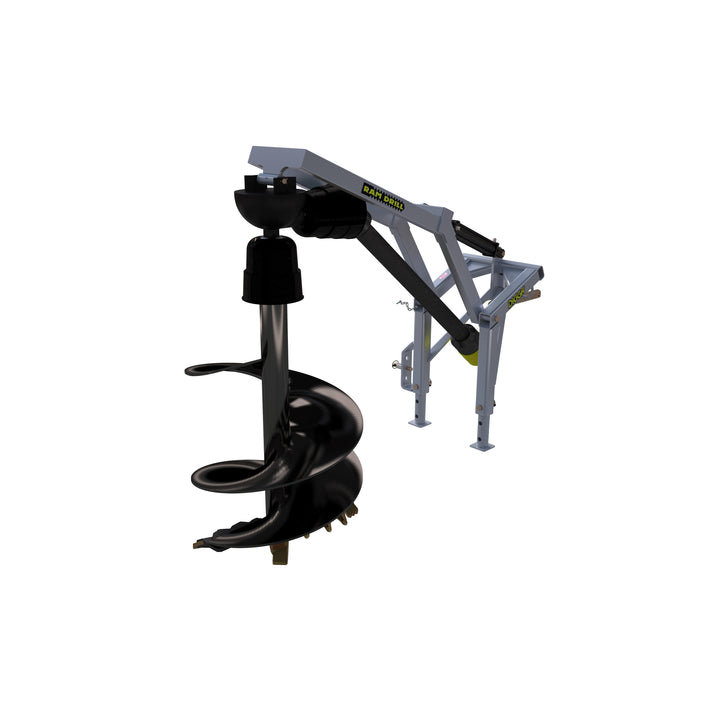

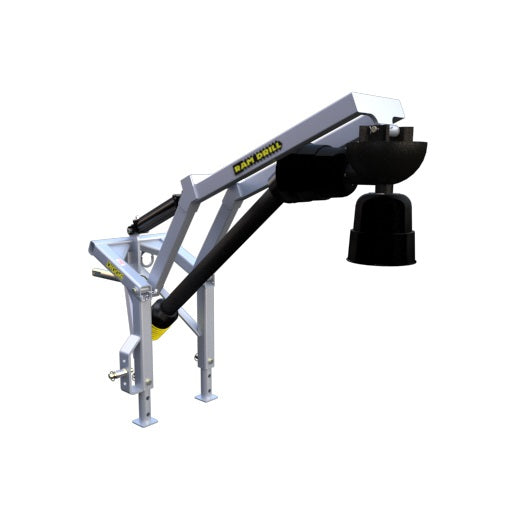

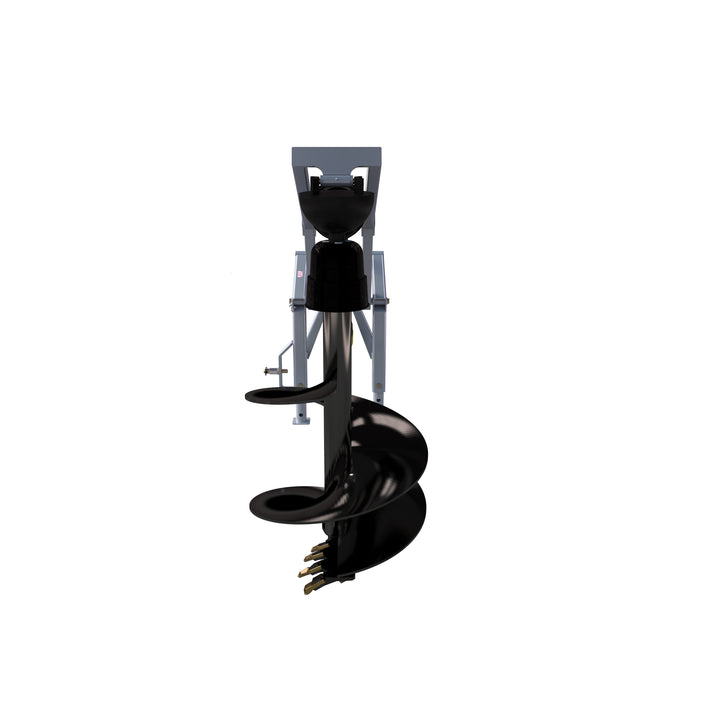

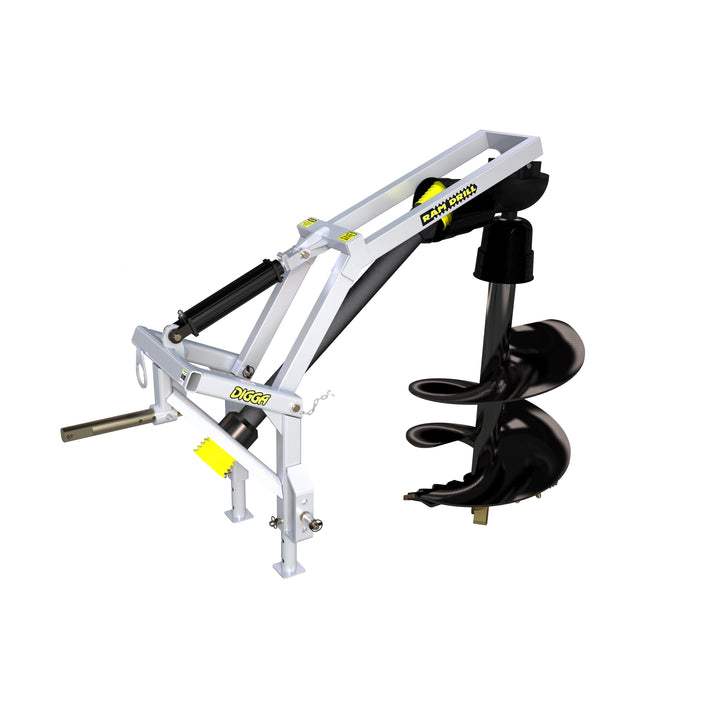

Digga Ram Drill – PTO Shaft Driven

Post Hole Boring / Fencing / Tree Planting

Available for 50hp and 75hp Tractors

The safest and most powerful planetary auger drive attachment range for tractors on the market today. The hydraulic ram provides maximum down pressure for the auger utilising the full weight of the machine. Proudly Australian made quality.

Price Inclusions:

Ram Drill, CAT1 & CAT2 Pins, Hoses, Couplers (Augers Sold Seperately)

The PTO SHAFT DRIVEN Features:

  • 3 DIFFERENT BUILD OPTIONS FOR EACH MODEL
  • HEAVY DUTY FULLY ADJUSTABLE FRAME
  • PTO DRIVEN GEARBOXES AVAILABLE FOR 50HP & 75HP TRACTORS
  • ADJUSTABLE BUILT-IN STABILISER LEGS FOR STORING EASE & FITMENT
  • IDEAL FOR TRACTORS WITH A SINGLE AUXILIARY PORT

3pt linkage rear mounted and PHD hydraulic models for tractors with 45-115lpm hydraulic flow are also available.





    SPECIFICATION

    PTO

    Required Flow

    N / A

    Length (A)

    1640 mm

    Length (B)

    1759 mm

    Height (C)

    1395-1755 mm

    Height (D)

    1411 mm

    Width Overall

    862 mm

    Flow

    N / A

    Speed

    N / A

    Weight

    50hp: 217kg
    75 hp: 250 kg

    Rec Auger

    Agricultural Series
