Digga Ram Drill - PHD Hydaulic

From $4,025.00 AUD
GST is included in price. Shipping calculated at checkout.

Style: Choose an option

Style: Choose an option
LOW FLOW RAMDRILL PHD WITH FIXED BOOM - 65MM RND SHAFT
STD FLOW RAMDRILL PHD WITH FIXED BOOM - 65MM RND SHAFT
HIGH FLOW RAMDRILL PHD WITH FIXED BOOM - 65MM RND SHAFT
Description

NOTE: Due to high demand on the Digga Ram Drill please call us on 0459 WAREHOUSE (that's 0459927346) prior to placing your order.

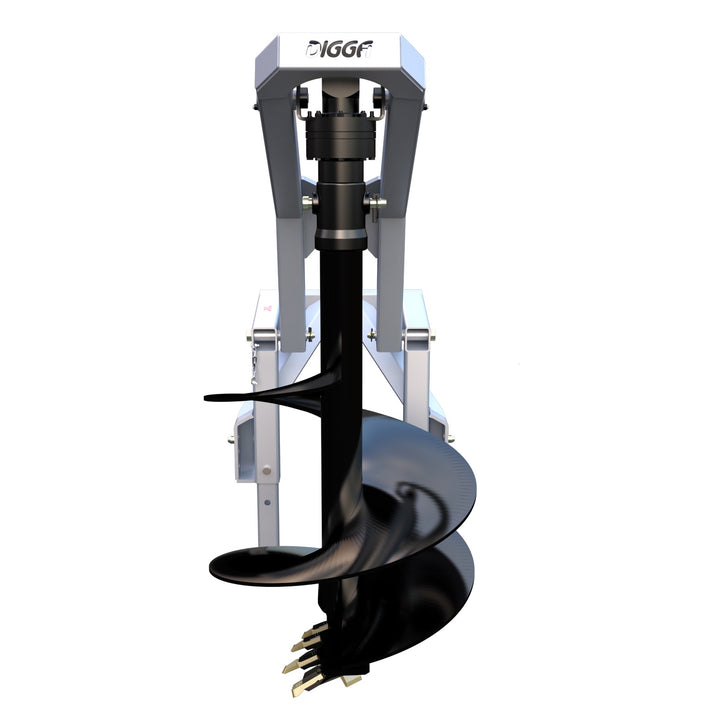

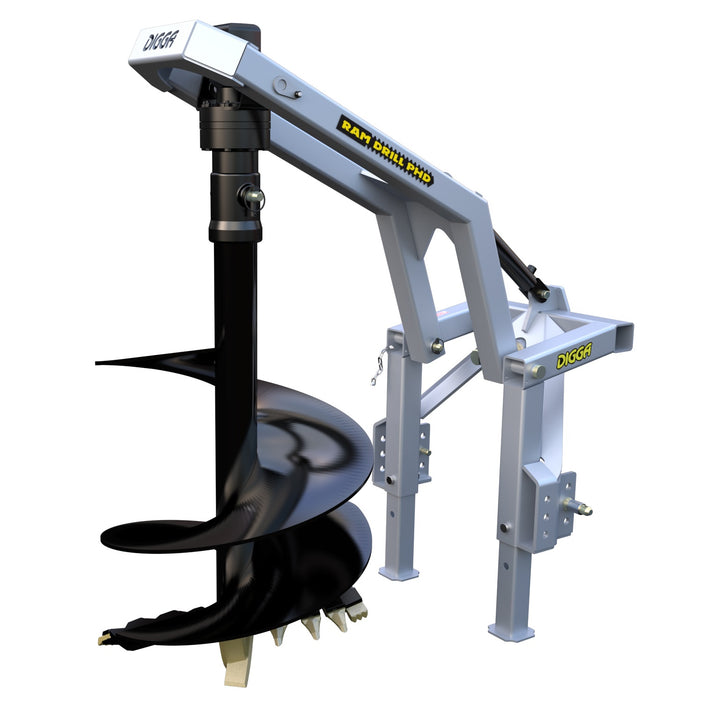

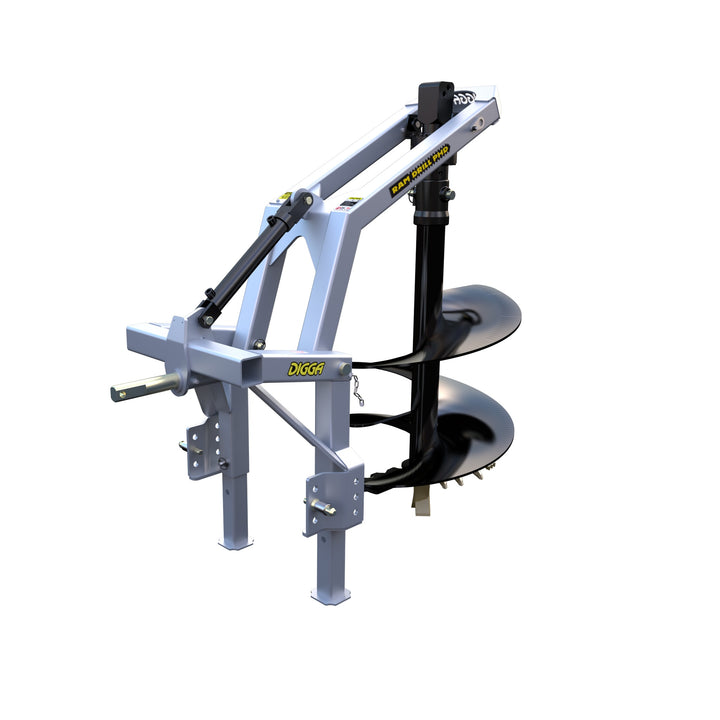

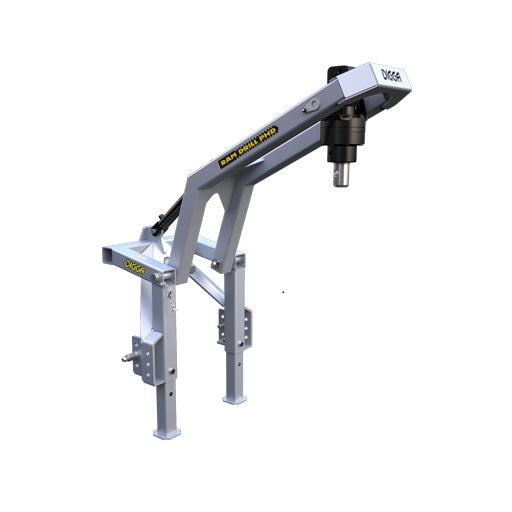

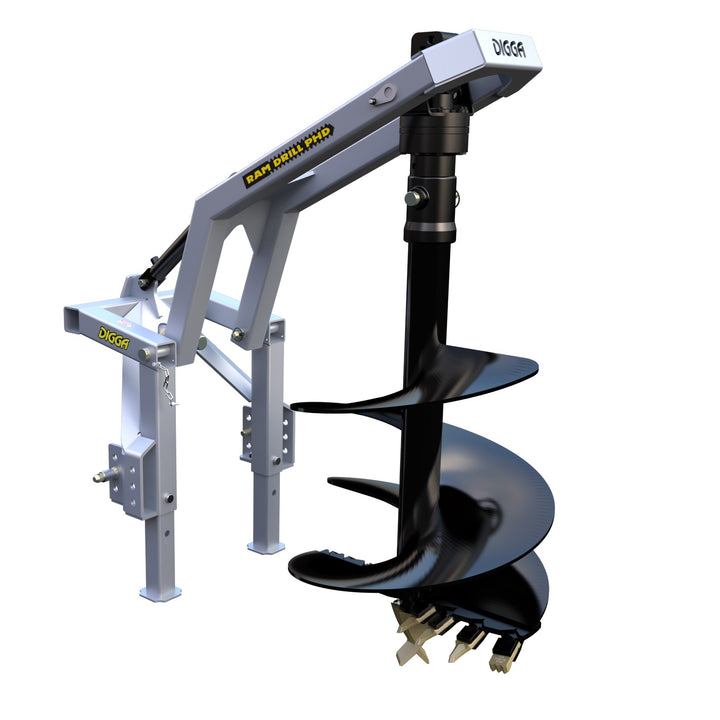

Digga Ram Drill – PHD Hydaulic

Post Hole Boring / Fencing / Tree Planting.

The safest and most powerful planetary auger drive attachment range for tractors on the market today. The hydraulic ram provides maximum down pressure for the auger utilising the full weight of the machine. Proudly Australian made quality.

3pt linkage rear mounted and Non-3pt linkage PTO models are also available.

Price Inclusions:

Hydraulic Driven Ram Drill, CAT1 & CAT2 Pins, 3m Hoses, Couplers

(Augers Sold Seperately)

Options:

1.  LOW FLOW RAMDRILL PHD - FIXED BOOM - 65MM RND SHAFT

SUITS LOW FLOW TRACTORS WITH 30-60LPM

2.  STD FLOW RAMDRILL PHD - FIXED BOOM - 65MM RND SHAFT

SUITS STANDARD FLOW TRACTORS WITH 45-85LPM

3.  HIGH FLOW RAMDRILL PHD - FIXED BOOM - 65MM RND SHAFT

SUITS HIGH FLOW TRACTORS WITH 60-115LPM

The PHD HYDRAULIC Features:

  • 3 DIFFERENT BUILD OPTIONS
  • HEAVY DUTY FULLY ADJUSTABLE FRAME
  • EATON QUALITY MOTOR
  • DIGGA HYDRAULIC GEARBOX ELIMINATES THE NEED FOR A PTO SHAFT
  • ADJUSTABLE BUILT-IN STABILISER LEGS FOR STORING EASE & FITMENT
  • IDEAL FOR TRACTORS WITH 2 DOUBLE ACTING AUXILIARY PORTS



NB: AUXILIARY CIRCUITS MUST BE DOUBLE ACTING / DUAL HYDRAULIC AUXILIARY CIRCUIT REQUIRED ( 4 OUTLETS / 2 PAIRS)

SPECIFICATION

PHD HYDRAULIC

Required Flow

Std: 45-85Lpm
High: 60-115 Lpm

Length (A)

1511 mm

Length (B)

1650 mm

Height (C)

1669-2049 mm

Height (D)

1095 mm

Width Overall

860 mm

Flow

75hp: 30-60Lpm
100hp: 45-85Lpm
XD: 60-115 Lpm

Speed

75hp: 40-81Rpm
100hp: 40-91Rpm
XD: 55-107 Rpm

Weight

213 kg

Rec Auger

Agricultural Series

Package Variants
Style

LOW FLOW RAMDRILL PHD WITH FIXED BOOM - 65MM RND SHAFT, STD FLOW RAMDRILL PHD WITH FIXED BOOM - 65MM RND SHAFT, HIGH FLOW RAMDRILL PHD WITH FIXED BOOM - 65MM RND SHAFT
