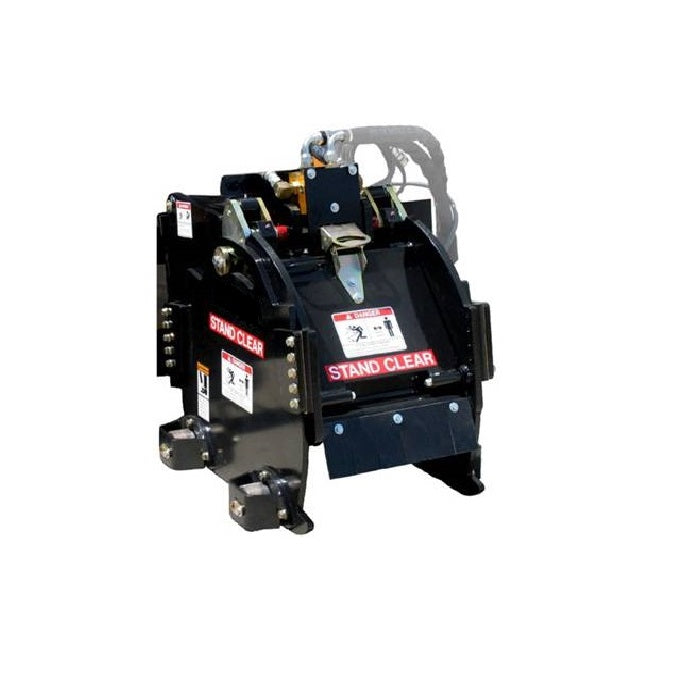

Digga Profila HP600

  • Sale
  • Regular price $34,661.00
Shipping calculated at checkout.



Digga Profila HP600

For High Flow Skid Steers

Machine suitability: Skid Steer Loaders.

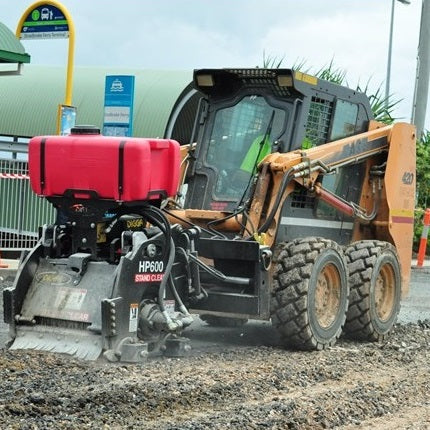

The Profila HP600 is used for planing (mill) rock, concrete and asphalt. Water nozzle kit for dust suppression supplied as standard (water tank not included).

*This product is built to order. Please request build time and delivery dates for this product before purchace.

Price Inclusions:

Profiler, Built In Mulitfit Frame, Controller Kit, Hydraulic Hoses and Couplers.

Options:

1. 100L Water Tank Kit (Attachment Mounted)

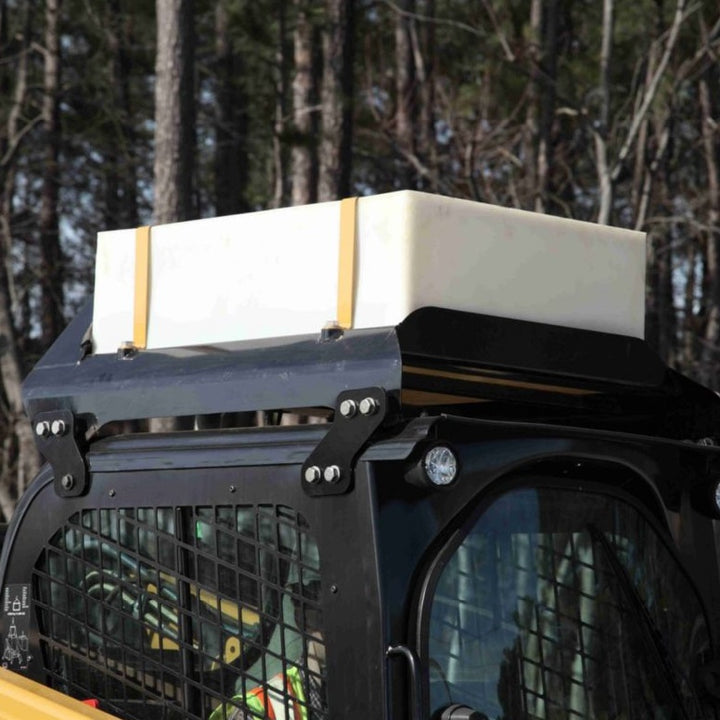

2. 110L Roof Mounted Water Kit. Plug & Play. Hoses and Electrics Included.

Features:

Digga Planetary high torque drive

High rear spoil clearance to prevent recirculation of material

Independent self-levelling depth adjustment plates

Manual depth and tilt options available

Convenient ergonomic electro-hydraulic control joystick for depth, tilt and side shift (optional).

Water nozzle kit for dust suppression supplied as standard (water tank not included)

Solid hardened steel wheels with greaseable manifold pins and secluded greased zerks

Also available in SP300 (Standard Flow)  & HP450 (High Flow)


Specifications HP600
Machine High Flow Skid Steer Loaders
Weight (Kgs) 1088
Length (Overall) 1277
Width (Overall) 1776
Height (Overall) 878
Planing Width 610
Planing Depth 0 - 127 mm
Drum Diameter 560
Number of picks (std drum) 57
Hydraulic Flow Required - LOW 83 - 106 LPM
Hydraulic Flow Required - STD 109 - 132 LPM
Hydraulic Flow Required - HIGH 136 - 166 LPM
Operating Pressure (BAR) 170 - 240
HP Range - LOW FLOW 36 - 48HP
HP Range - STD FLOW 48 - 58HP
HP Range - HIGH FLOW 60 - 71HP
Tilt 8 degrees
Side Shift (centre to right) -75mm - 560mm
