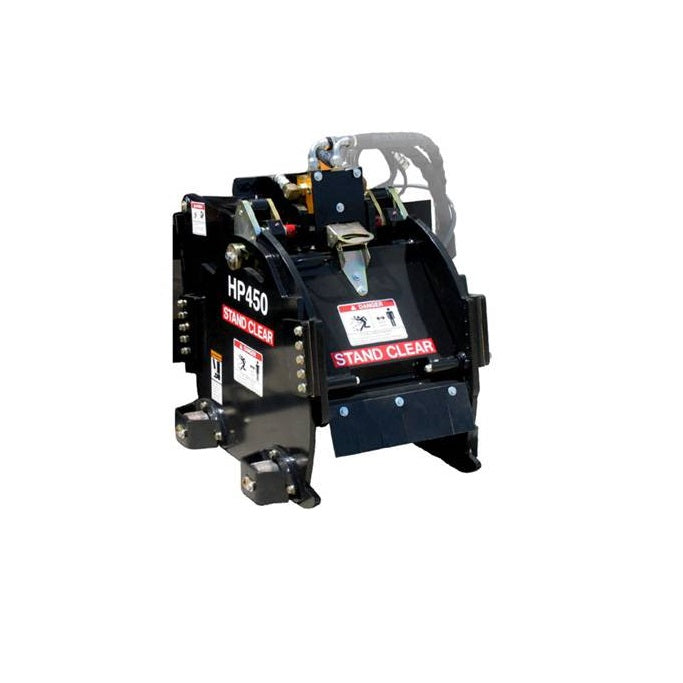

Digga Profila HP450
For High Flow Skid Steers
Machine suitability: Mulitfit & CAT models only.
The Profila HP450 is used for planing (mill) rock, concrete and asphalt. Water nozzle kit for dust suppression supplied as standard (water tank not included).
*This product is built to order. Please request build time and delivery dates for this product before purchace.
Price Inclusions:
Profiler, Built in Multifit Frame, Controller Kit, Hydraulic Hoses and Couplers.
Options:

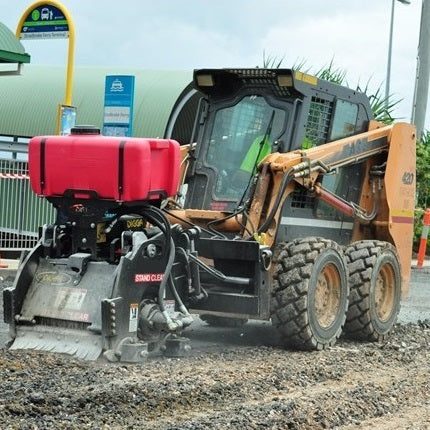

1. 100L Water Tank Kit (Attachment Mounted)

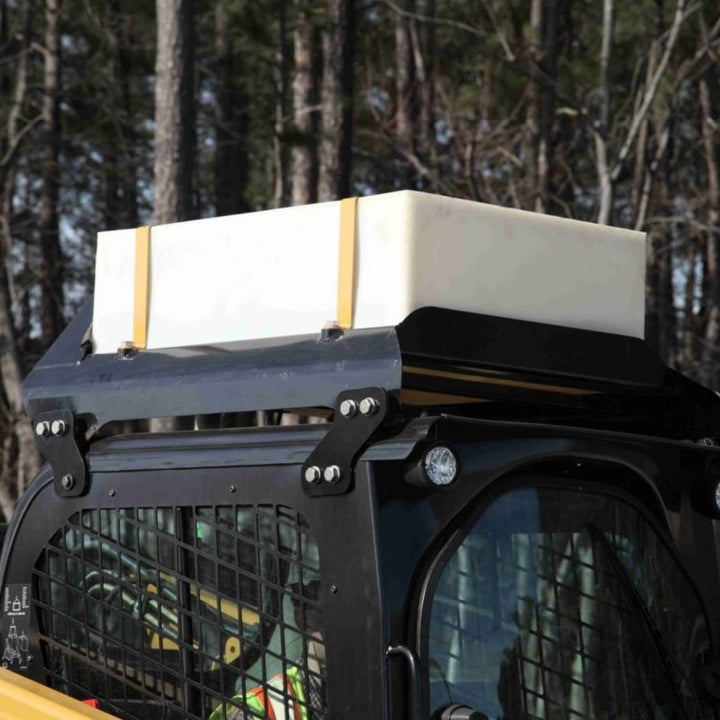

2. 110L Roof Mounted Water Kit. Plug & Play. Hoses and Electrics Included.
Features:
Digga Planetary high torque drive
High rear spoil clearance to prevent recirculation of material
Independent self-levelling depth adjustment plates
Manual depth and tilt options available
Convenient ergonomic electro-hydraulic control joystick for depth, tilt and side shift (optional).
Water nozzle kit for dust suppression supplied as standard (water tank not included)
Solid hardened steel wheels with greaseable manifold pins and secluded greased zerks
Also available in SP300 (Standard Flow) & HP600 (High Flow)
Specifications | HP450 |
---|---|
Machine | High Flow Skid Steer Loaders |
Weight (Kgs) | 997 |
Length (Overall) | 1277 |
Width (Overall) | 1776 |
Height (Overall) | 878 |
Planing Width | 457 |
Planing Depth | 0 - 127 mm |
Drum Diameter | 560 |
Number of picks (std drum) | 45 |
Hydraulic Flow Required - LOW | 83 -106 LPM |
Hydraulic Flow Required - STD | 109 - 132 LPM |
Hydraulic Flow Required - HIGH | 136 - 166 LPM |
Operating Pressure (BAR) | 170 - 240 |
HP Range - LOW FLOW | 36 - 48HP |
HP Range - STD FLOW | 48 - 58HP |
HP Range - HIGH FLOW | 60 - 71HP |
Tilt | 8 degrees |
Side Shift (centre to right) | -75mm - 560mm |
Profila |
HP450 |
---|---|
Water Tank Options |
No Water Tank, 100L Water Tank Kit (Attachment Mounted), 110L Roof Mounted Water Tank Kit |
