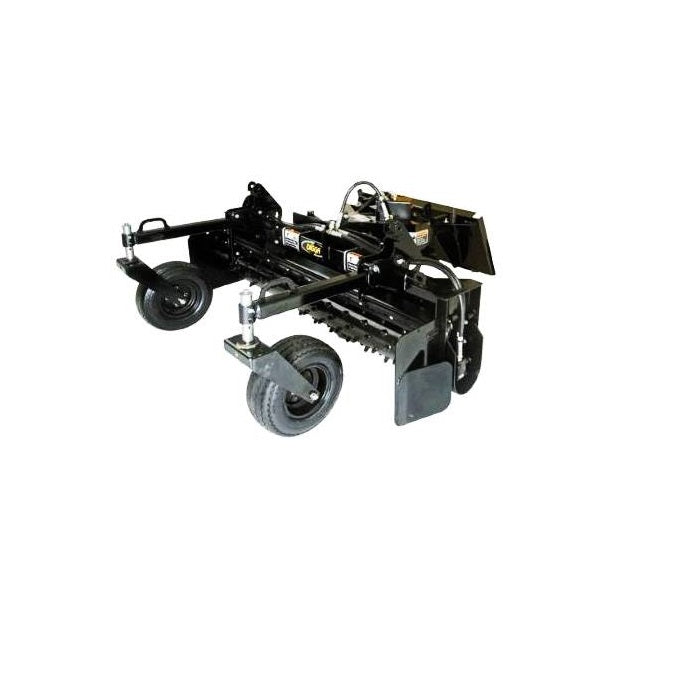

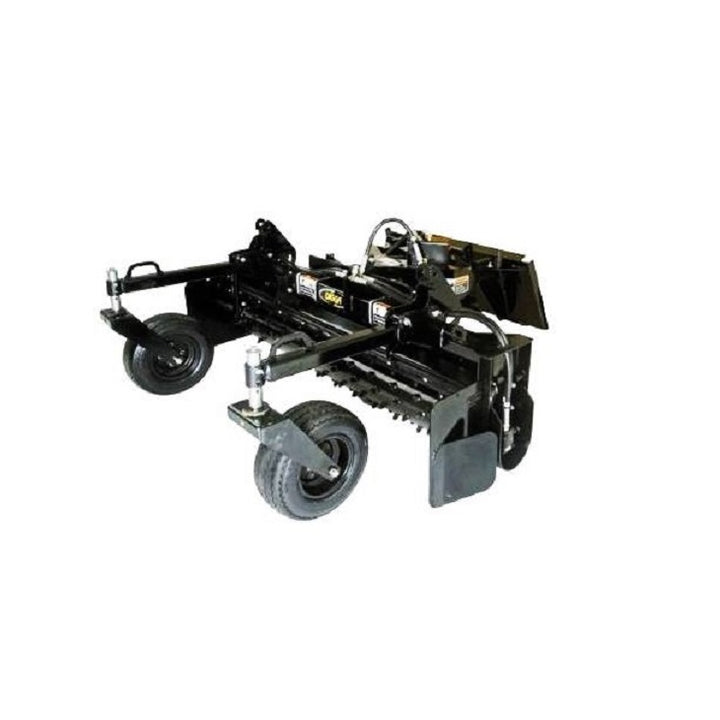

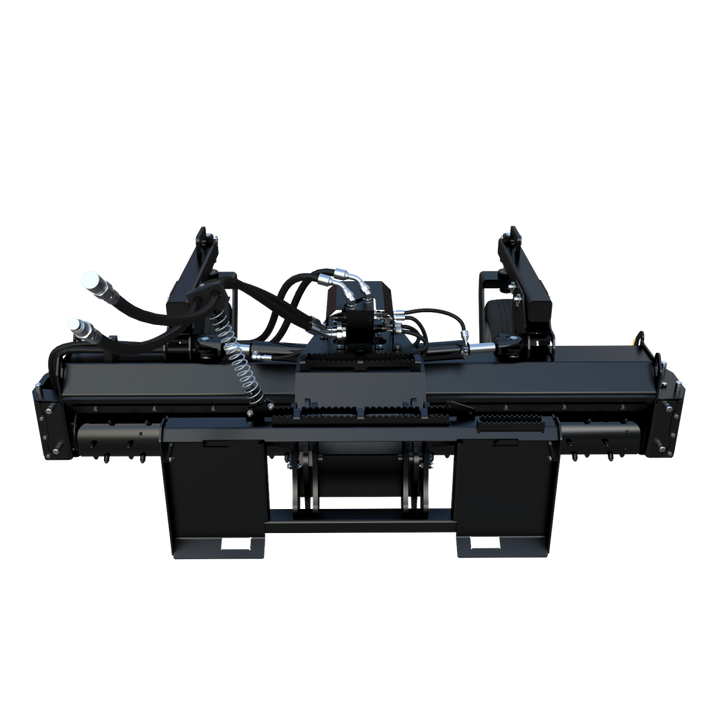

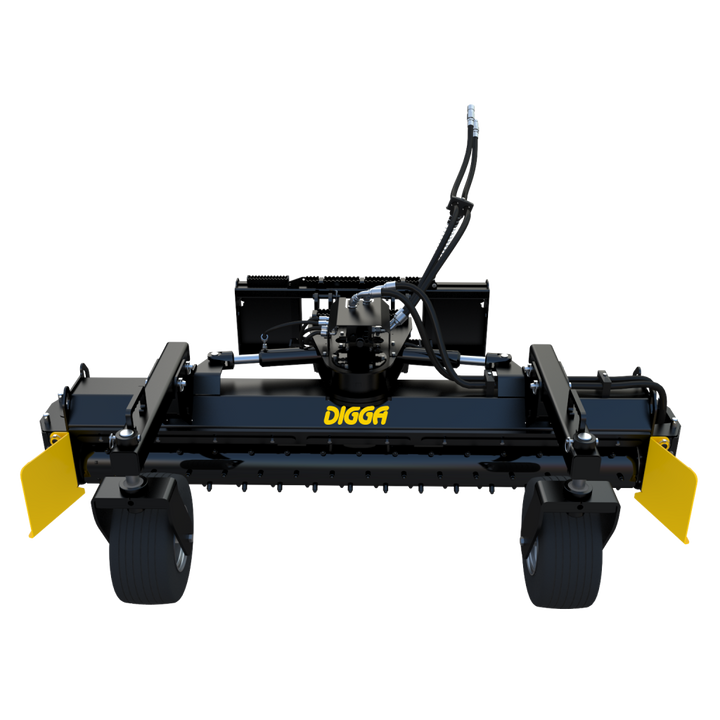

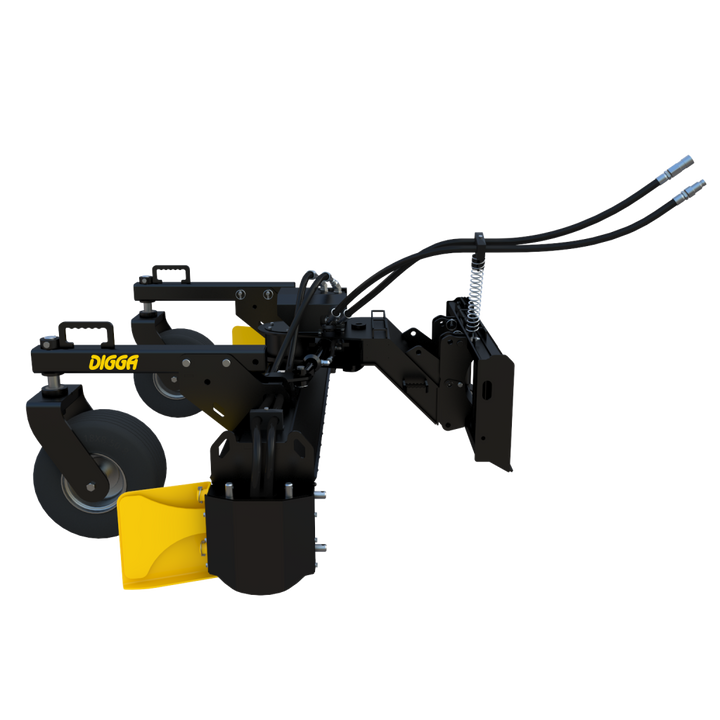

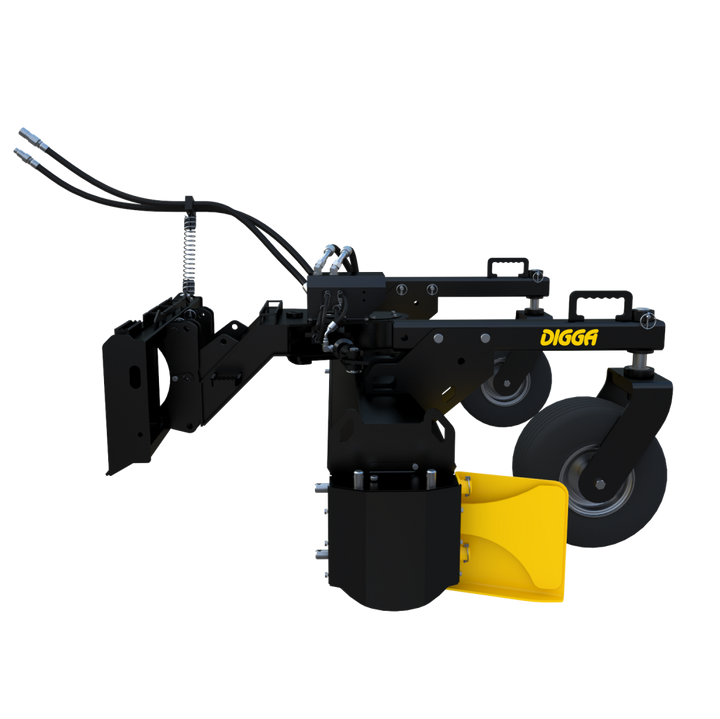

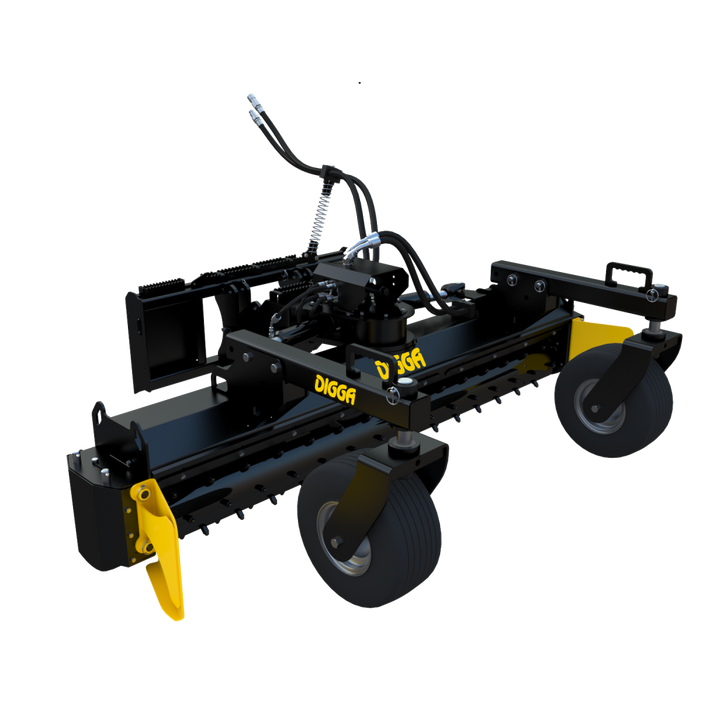

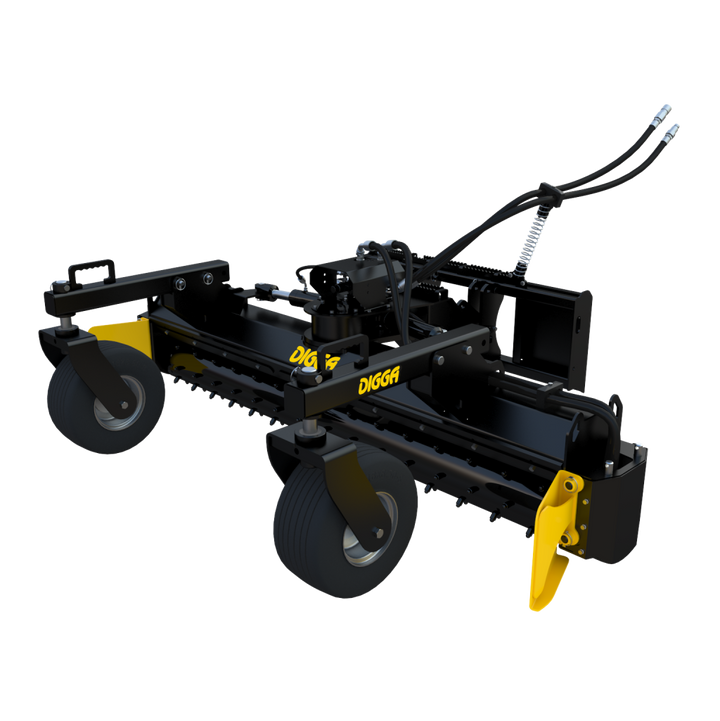

DIGGA POWER RAKE

The ultimate tool for landscaping, turf prep, and site clean-up.

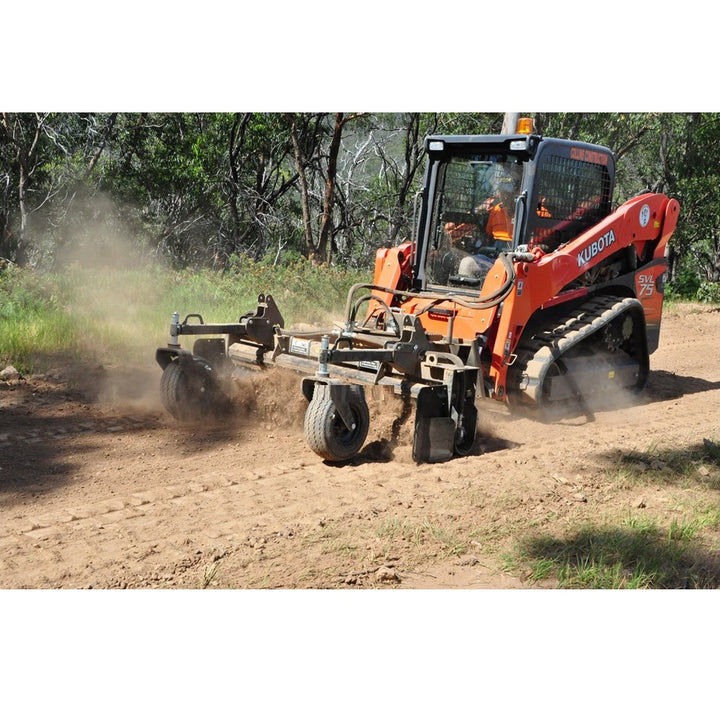

The Digga Power Rake is an essential attachment for contractors, landscapers, and site preparation professionals. Designed to grade, level, and remove debris. It’s high torque rotating drum pulverizes the surface,
preparing it for turf, seed, or paving. Whether you are removing old grass, scrub, or spreading new material,
the power rake delivers unmatched versatility and performance.

KEY FEATURES

Centre Pivot Drum Design: Pivot point located above the drum keeps it centered to the host machine at all times for precise, even performance.
Adjustable Angle: 25 degrees left and right slew for superior control and windrowing.
Hydraulic Compatibility: Suitable for both standard and high flow machines.
Floating or Fixed Mounting: Versatile frame design allows for floating operation on undulating terrain or locked, for precision grading.
Low Maintenance: Only five grease points for easy service.
High-Performance Drive Systems: 6k Series Danfoss hydraulic motor with direct drive delivers robust, consistent power.
Plug & Play Hydraulic Harnessing: Multiple harness options for seamless joystick control integration with your host machine.
Built for Durability:
Protected motor and bearing covers.
Heavy-Duty sealed bearings on jockey wheels.
Welded wheel boss and reinforced wheel arms.
Adjustable Wheel Height: Three-position height adjustment to match site conditions.
Compact Transport & Close Access Work: Folding jockey wheel legs allow close work against structures and compact machine storage.
Material Control: Adjustable and reversible 1/2” thick rubber deflec- tors control the size of material passing over the drum.
Protected Slew System: Slew cylinders are positioned above and away from the drum for maximum protection from dirt and debris.
Multi-Position Spoil Plates (Box Ends): Mount forward for standard operation, rear for reverse use, or stow on top when windrowing.
Tungsten Carbide Teeth: Rugged and long-lasting teeth for maximum
drum life in harsh conditions.

APPLICATIONS:

Levelling and Grading
Seedbed preparation
Lawn and Turf installation
Golf course and Vineyard maintenance
Construction site prep
Landscape repair and renovation
Paving preparation
Ground Care for councils and contractors

SPECIFICATIONS

Slew Function: Drum must be rotating for the slew
function to operate.

This feature delivers a key productivity advantage: it
allows the operator to turn at the end of a pass while
continuing to cut, maintaining the full working width and
consistent arc of the turn.

“There’s no need to stop, lift the rake, reposition, or
restart - just turn and keep raking.”

This seamless operation reduces downtime, increases
efficiency, and makes the job quicker and easier.

Digga Power Rake

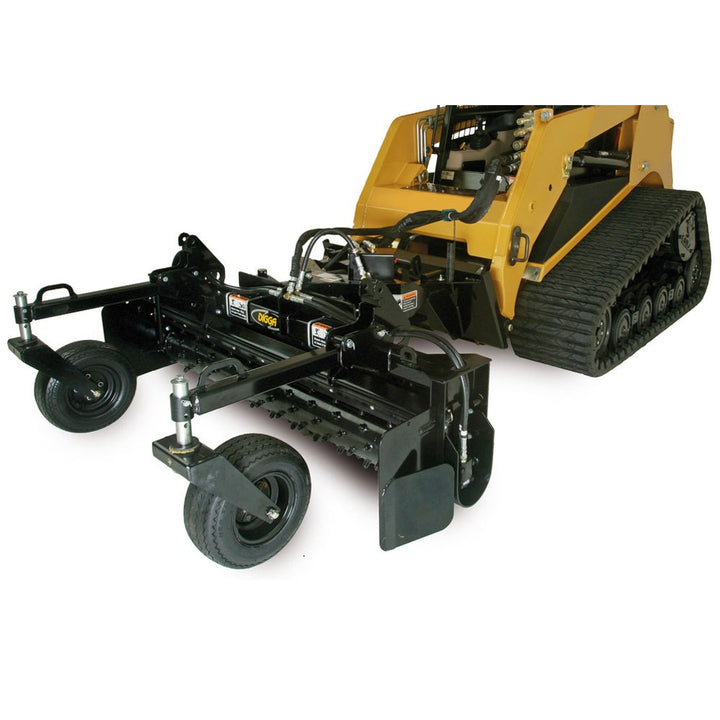

Machine Suitability: Skid Steer Loaders, Posi Track Loaders, Multi Terrain Loaders & Compact Track Loaders.

Please note: There are build times required for Power Rakes. Contact us for more information.

Powerful and Reliable landscaping rake used for grading, raking, leveling, pulverizing and preparing ground for new seed or turf. ALSO clean building sites, de-thatch lawns or prepare fire breaks ALL WITH ONE TOOL!

Price Inclusions:

Power Rake with Hydraulic Angle

Built-in Frame

Plug and Play Electrics**

Hoses & Couplers

**THE RAKES COME STANDARD WITH HARNESS AND CONTROL BOX TO ADJUST ANGLE. IF THE OPERATOR WISHES TO USE THE MACHINE JOYSTICKS TO CONTROL SLEW THEN AN 8 PIN OR 14 PIN KIT IS REQUIRED. THE DIGGA PLUG & PLAY KIT (EH-000011) IS ALSO AVAILABLE FOR OPERATORS WANTING A CONTROL BOX WITH INDICATOR LIGHTS AND THE OPTION TO ADD A JOYSTICK MOUNTED TOGGLE SWITCH.

NB: This product is made to order. Please enquire about current build and delivery times for this product.

Options:

1828mm (72”) or 2286mm (90”)

Add Optional  Electric Kit:

1. EC-000006: FOR MACHINES WITH 8 PIN SERVICE PLUG - INCLUDES 2 (2) PIN TO 8 -PIN PLUG CONVERSION HARNESS

2. EH-000012: FOR MACHINES WITH 14 PIN SERVICE PLUG - 2m ELECTRICAL HARNESS**

3. EK-000001: FOR MACHINES WITH 14 PIN SERVICE PLUG - (DIY KIT)**

**Both EH-000012 and EK-000001 are required for 14 Pin Machines

Features:

• HEAVY-DUTY FRAME EXTENDS LIFE
• HYDRAULIC ANGLING TO ANGLE 20 DEGREES IN EITHER DIRECTION
• DUAL DIRECT-DRIVE MOTORS DELIVER MORE EFFICIENT POWER DIRECTLY TO THE DRUM
• LOW MAINTENANCE COSTS
• BI-DIRECTIONAL DRUM CAN WORK SOIL IN BOTH DIRECTIONS
• HYDRAULIC FLOW 45-150LPM
• HYDRAULIC PRESSURE 138-240BAR
• DUAL INDEPENDENTLY ADJUSTABLE GAUGE WHEELS
• ADJUSTABLE URETHANE BARRIER CONTROLS PARTICLE SIZE
