Digga PDH4-5 75mm square HALO auger drive combo package skid steer up to 120Hp
Purchase any Digga PDH4 Earth Drill Combo Package and get *FREE FREIGHT!
The Digga PDH4-5 75mm Round Hub HALO Earth Drill is suitable for Skid Steer Loaders with flow rates between 55 - 85Lpm.
The Auger Drive unit comes as a Bolt On Slide Shift that allows you to adjust the Drive to your preferred operating position.
Standard** Frames are available to suit:
- Multifit (available in Fixed or Slide Frame)
The following Frames available as Slide Frame only:
- Mustang - Single Pin
- Huski 4SDK8 and 4SDK10
Please Provide the Make and Model of Your Machine in the "Special Instructions For Seller" Section Upon Checkout.
**More Frames are available on request but may incur a surcharge. Please contact us for more details if your machine isn't listed above.
PROUDLY PRODUCED AND MANUFACTURED IN AUSTRALIA
Choosing your teeth and pilots:
Multi Facet Tungsten (MFT): Best all rounder; suitable for hard ground conditions including clay.
Earth/Rock Combo (RC): suitable for harder ground conditions including fracturable rock, asphalt and concrete.
Dedicated Rock (DR): suitable for fracturable and non fracturable rock.
What is HALO
Highly visible indicator
Halo features recessed high accuracy inclination green and red LED indicators, which can be clearly seen in daylight. With Halo, there in no need for an in-cab display screen, and no need to take your eyes off the job to realign your auger.
No setup (battery option)
Halo can be connected to the in-cab cigarette lighter, or powered by a magnetised rechargeable battery which will last all day, and can be charged via USB or a 240V wall charger. The battery pack can be attached to the drive hood, frame, machine boom, or placed in-cab.
Set angle of inclination
The battery powered option features a 'zeroing' function which lets the operator set the angle of inclination with the press of a button. This feature is ideal for the installation of shade sails.
Technology
HALO utilises a microprocessor and 6 sensors to provide accurate readings to +/- 0.25 degrees - Even under heavy vibration. Effectively eliminating the need for a spotter with a spirit level. The dust/water proof LED ring is also recessed into the hood to protect it from knocks.
Durable Australian quality
HALO is proudly made in Australia, and has undergone 4 years of development & testing to ensure the unit works faultlessly, and is capable of enduring the rigors of our industry.
Digga PDH4-5 Earth Drill Specifications:
Torque Range: 2316 - 4448 Nm
Oil Flow Range: 55 - 85 Lpm
Oil Pressure Range: 60 - 240 Bar
Hub: 75mm Square
Auger Specifications:
Digga 150mm A6 Auger:
Overall Length 1500mm
75mm Square Hub
Padloc Lock-in Teeth
Digga 200mm A6 Auger:
Overall Length 1500mm
75mm Square Hub
Padloc Lock-in Teeth
Digga 250mm A6 Auger:
Overall Length 1500mm
75mm Square Hub
Padloc Lock-in Teeth
Digga 300mm A6 Auger:
Overall Length 1500mm
75mm Square Hub
Padloc Lock-in Teeth
Digga 350mm A6 Auger:
Overall Length 1500mm
75mm Square Hub
Padloc Lock-in Teeth
Digga 400mm A6 Auger:
Overall Length 1500mm
75mm Square Hub
Padloc Lock-in Teeth
Digga 450mm A6 Auger:
Overall Length 1500mm
75mm Square Hub
Padloc Lock-in Teeth
Digga 600mm A6 Auger:
Overall Length 1500mm
75mm Square Hub
Padloc Lock-in Teeth
Pick up available from Brisbane, Gold Coast, Sydney or Melbourne
We ship earthmoving attachments Australia wide. *FREE FREIGHT Terms can be found here.

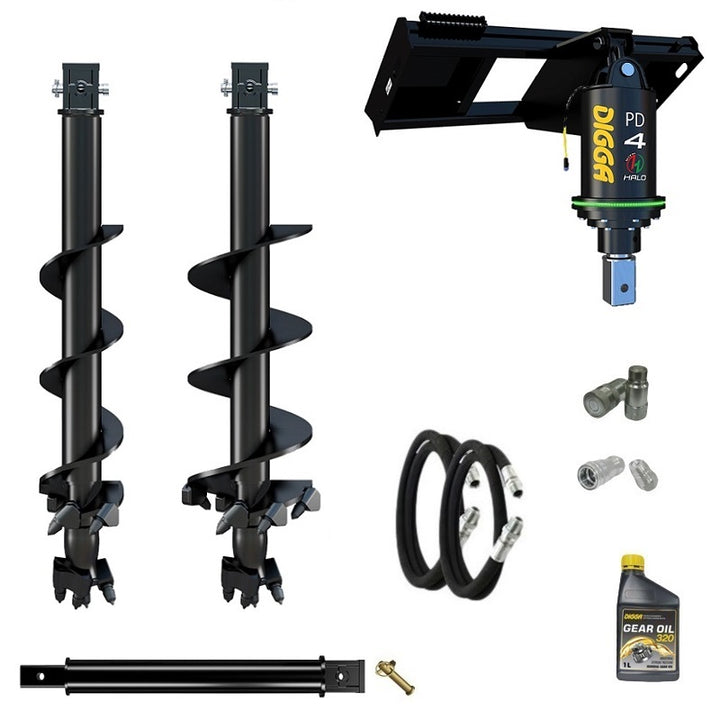

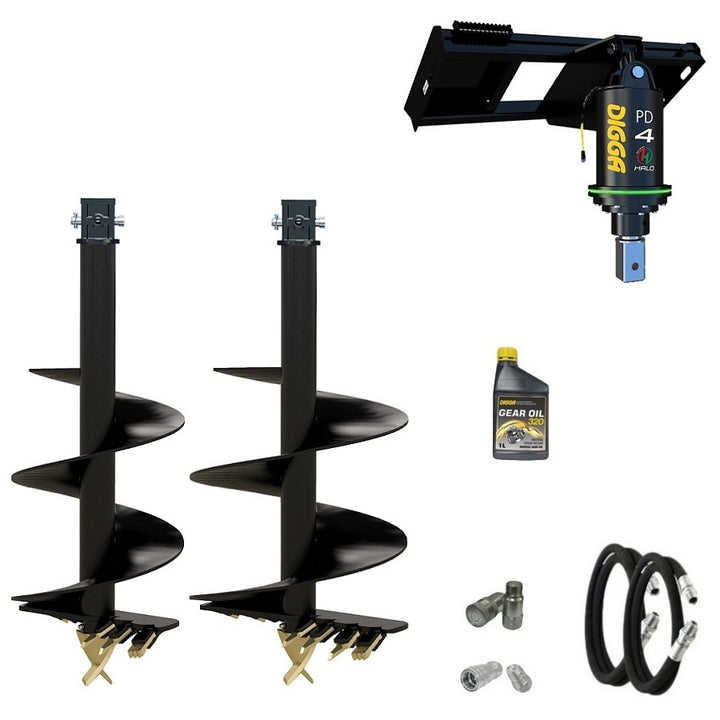

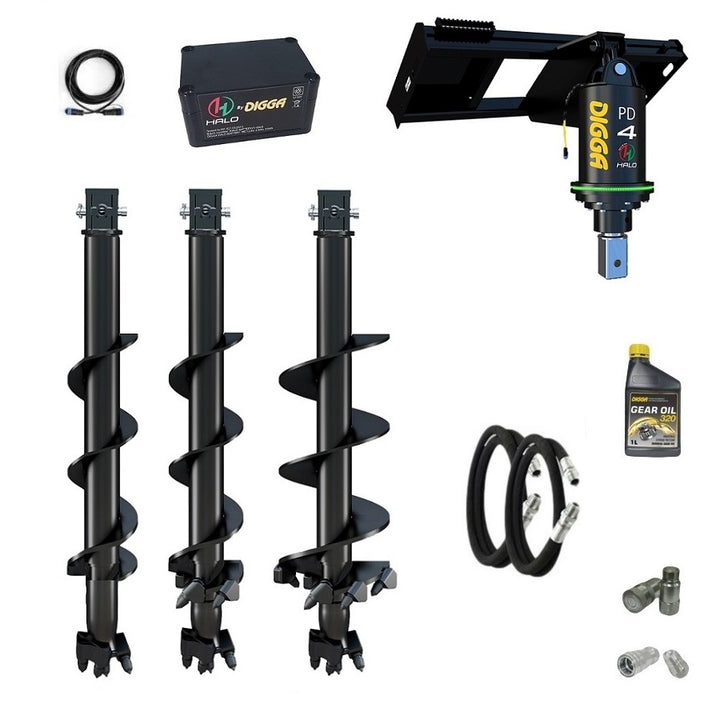

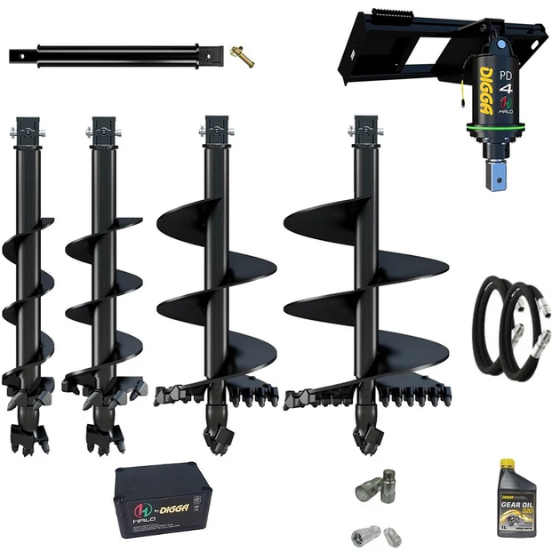

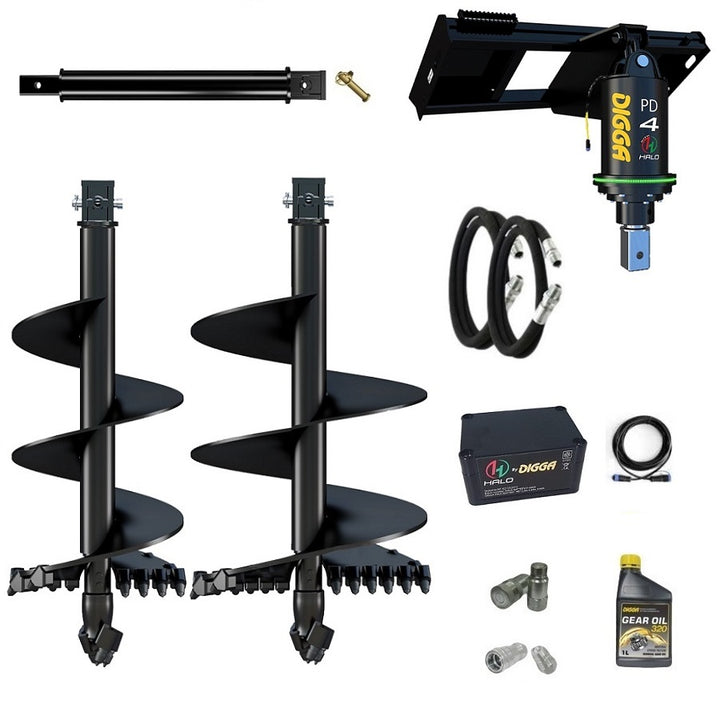

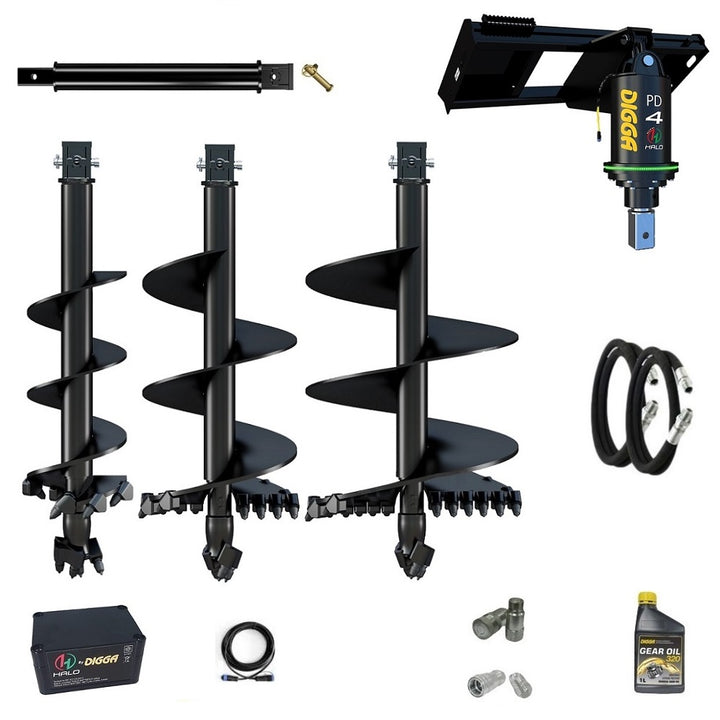

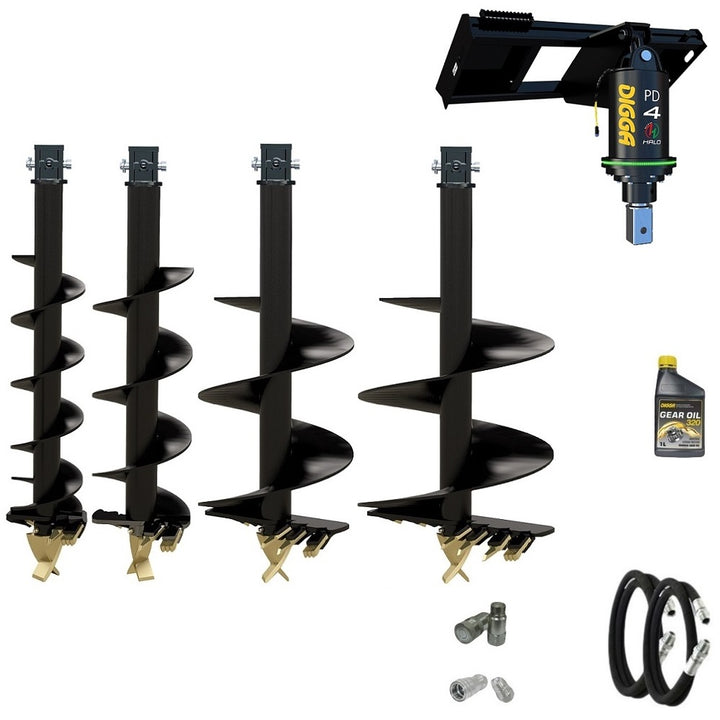

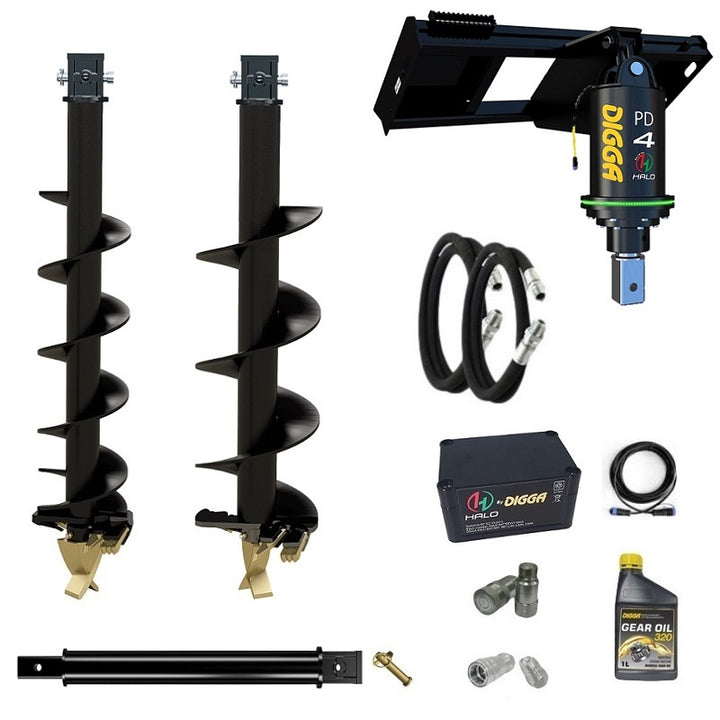

Slide Frame PDH4-5 75mm Square HALO Auger Drive with |
200mm & 300mm, 200mm & 300mm + 1m Ext Bar, 200mm & 300mm + Battery Pack, 200mm & 300mm + 1m Ext Bar & Battery Pack, 300mm & 450mm, 300mm & 450mm + 1m Ext Bar, 300mm & 450mm + Battery Pack, 300mm & 450mm + 1m Ext Bar & Battery Pack, 350mm & 450mm, 350mm & 450mm + 1m Ext Bar, 350mm & 450mm + Battery Pack, 350mm & 450mm + 1m Ext Bar & Battery Pack, 450mm & 600mm, 450mm & 600mm + 1m Ext Bar, 450mm & 600mm + Battery Pack, 450mm & 600mm + 1m Ext Bar & Battery Pack, 150mm 200mm & 300mm, 150mm 200mm & 300mm + 1m Ext Bar, 150mm 200mm & 300mm + Battery Pack, 150mm 200mm & 300mm + 1m Ext Bar & Battery Pack, 250mm 350mm & 450mm, 250mm 350mm & 450mm + 1m Ext Bar, 250mm 350mm & 450mm + Battery Pack, 250mm 350mm & 450mm + 1m Ext Bar & Battery Pack, 300mm 450mm & 600mm, 300mm 450mm & 600mm + 1m Ext Bar, 300mm 450mm & 600mm + Battery Pack, 300mm 450mm & 600mm + 1m Ext Bar & Battery Pack, 200mm 300mm 450mm & 600mm, 200mm 300mm 450mm & 600mm + 1m Ext Bar, 200mm 300mm 450mm & 600mm + Battery Pack, 200mm 300mm 450mm & 600mm + 1m Ext Bar & Battery Pack |
---|---|
Teeth Type |
Multi Facet Tungsten, Earth/Rock, Dedicated Rock |
