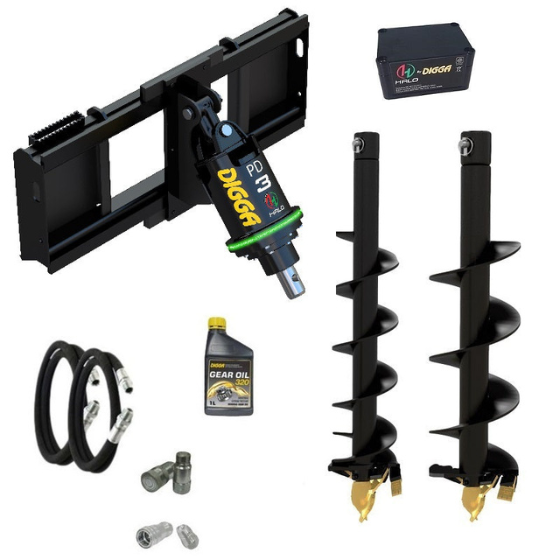

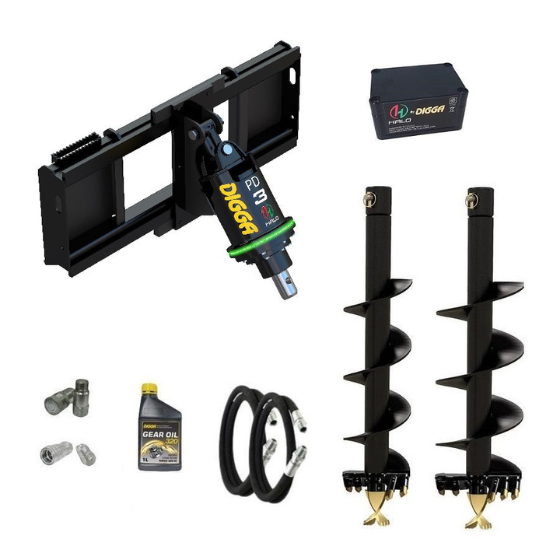

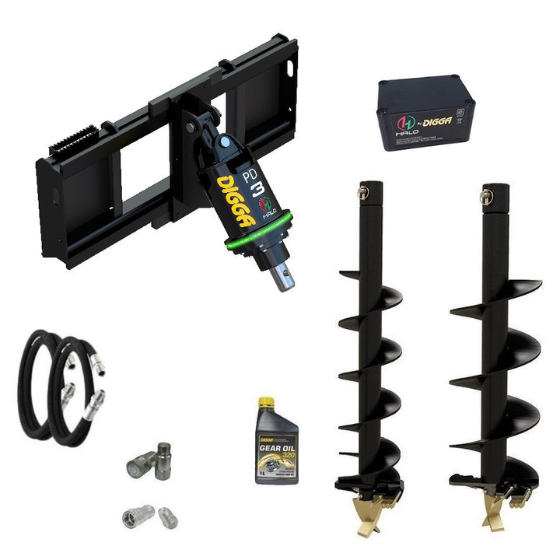

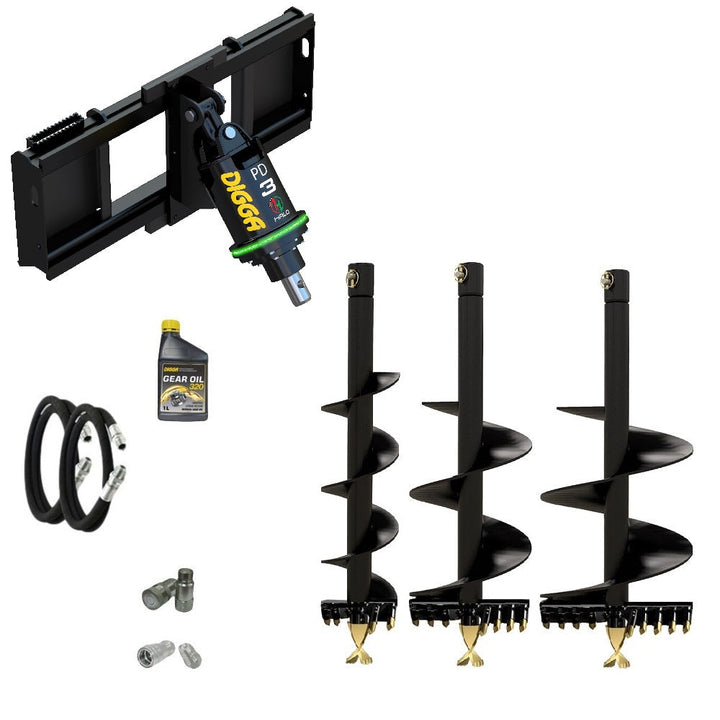

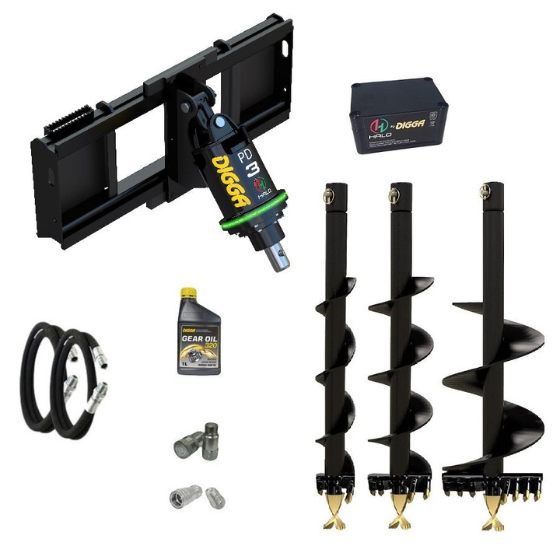

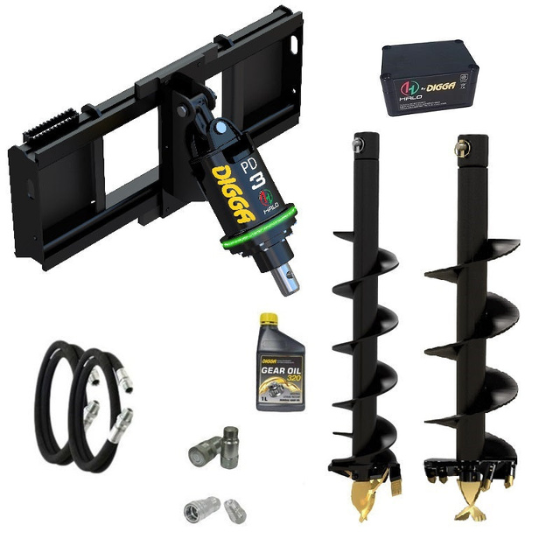

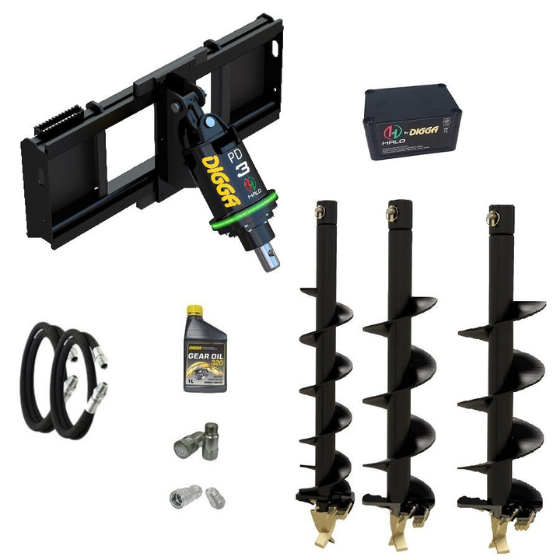

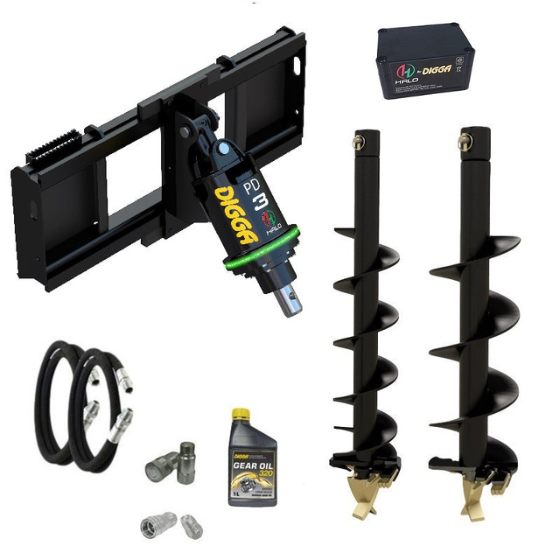

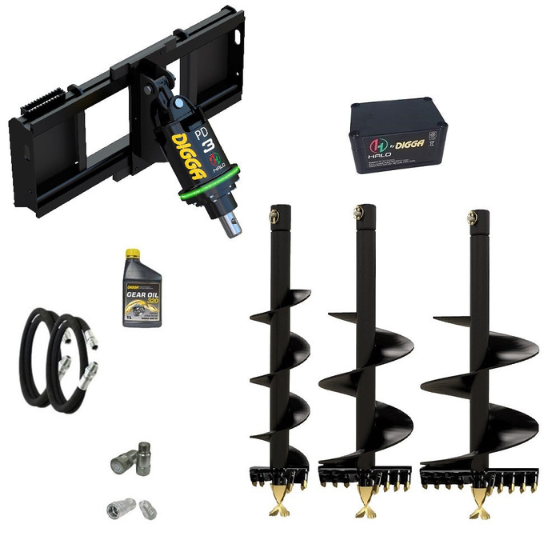

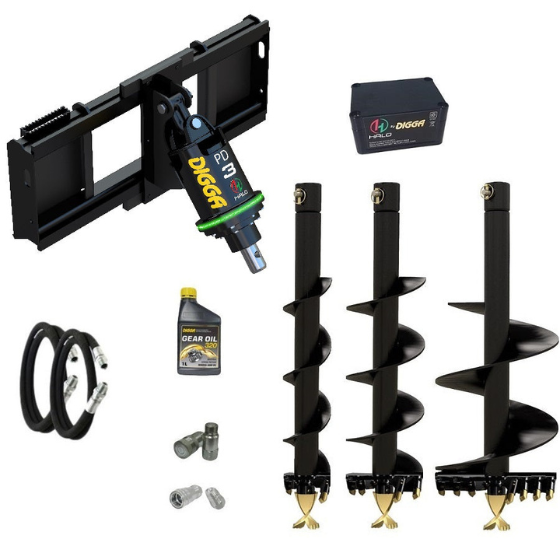

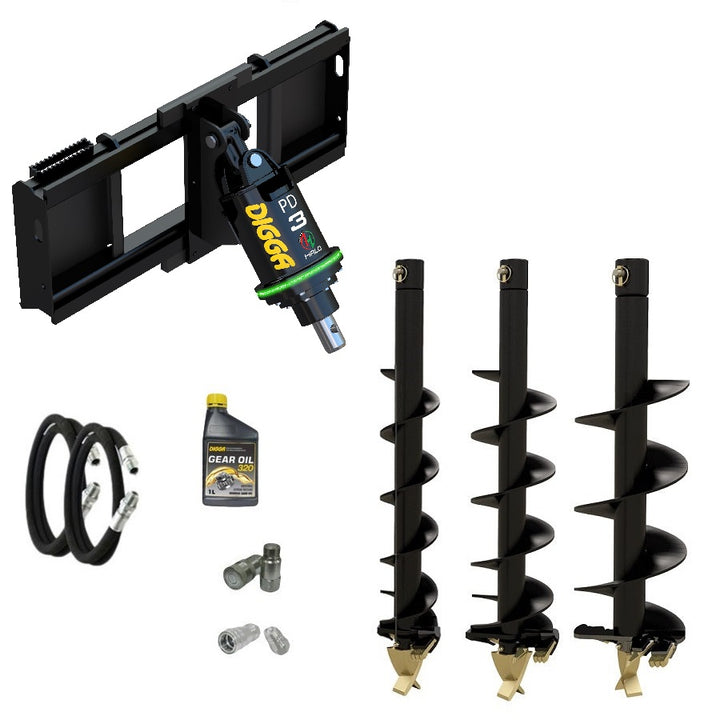

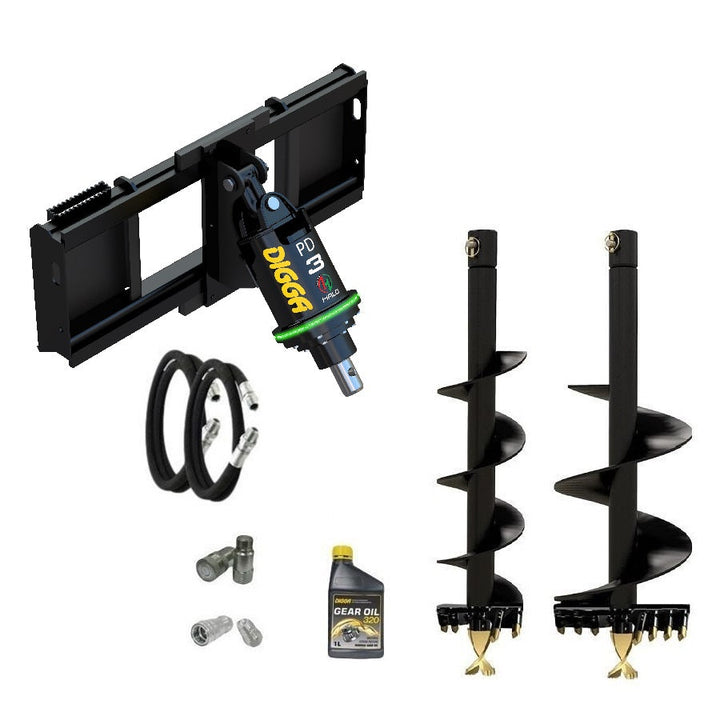

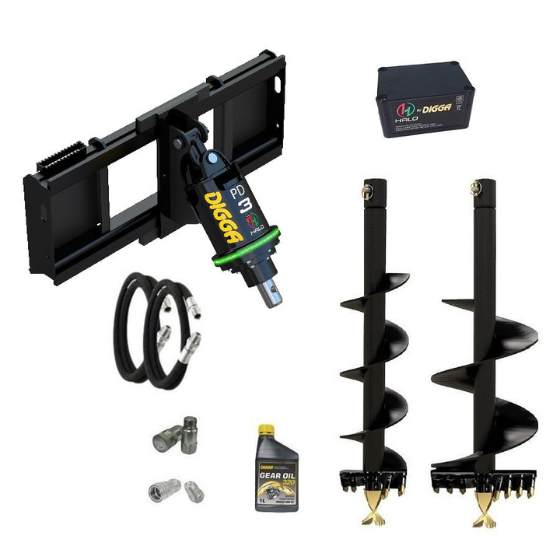

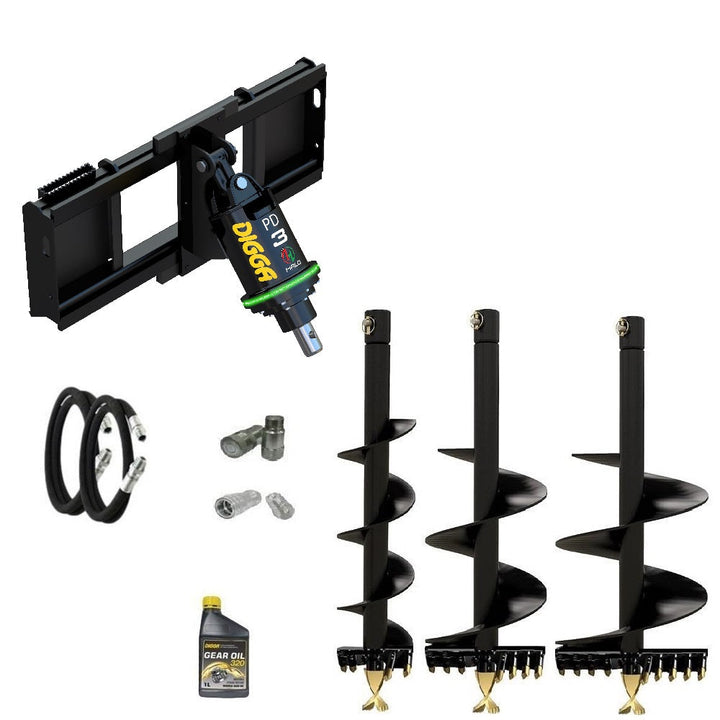

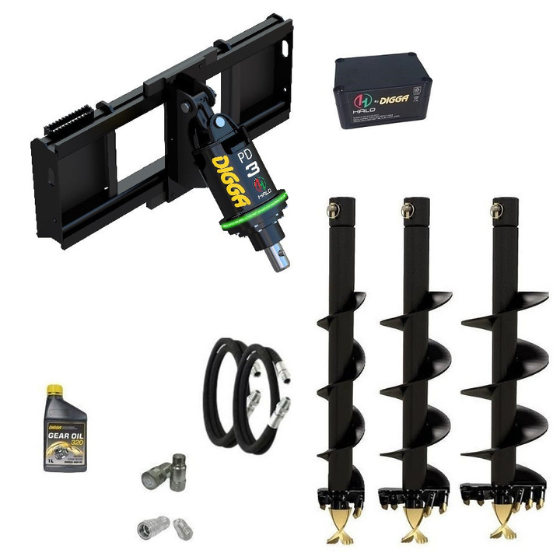

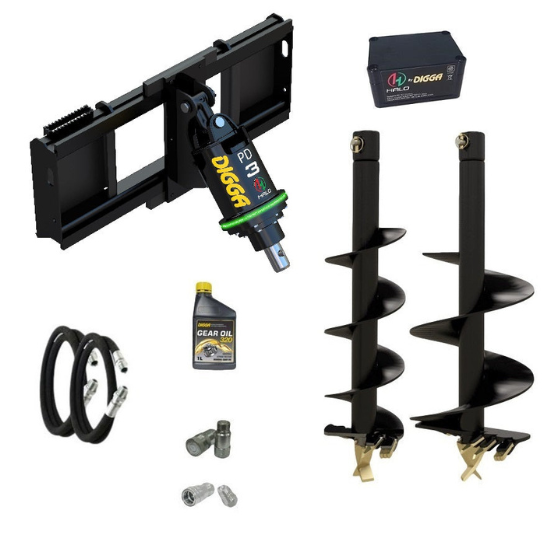

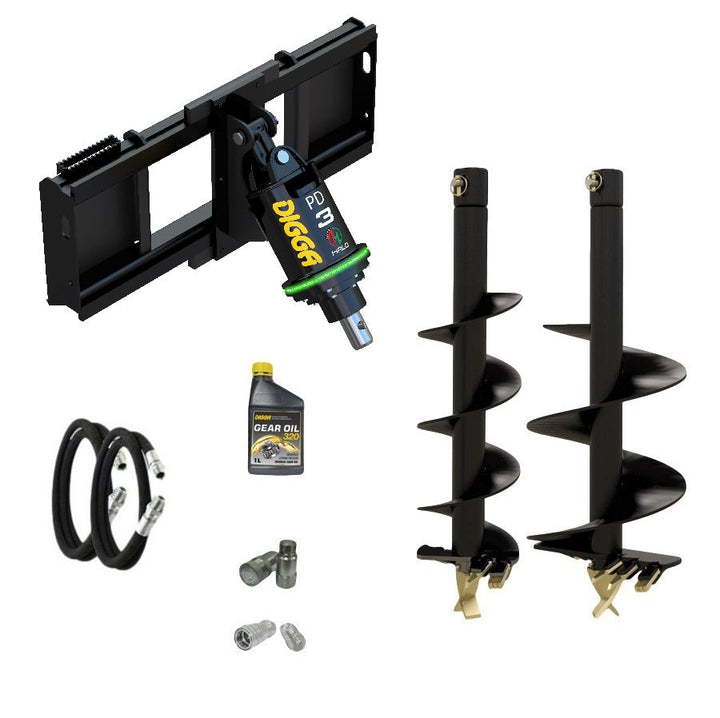

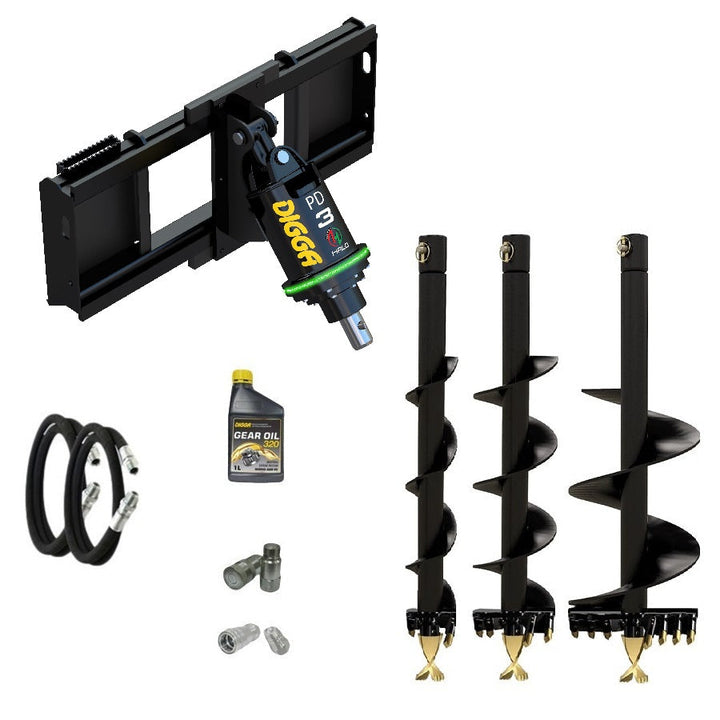

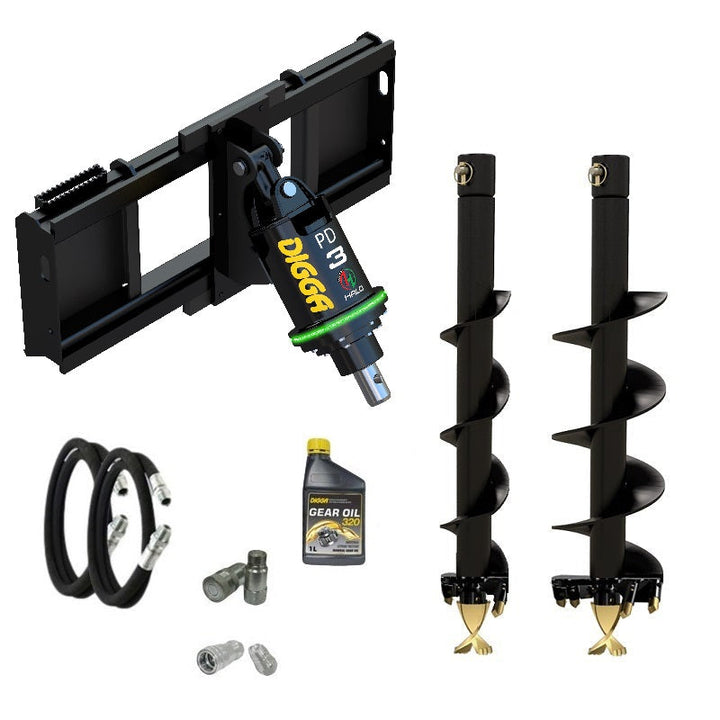

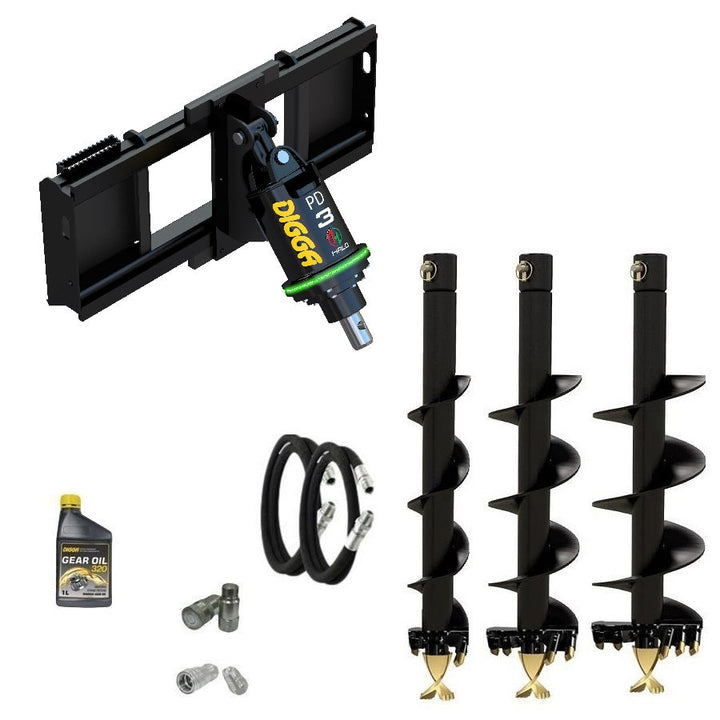

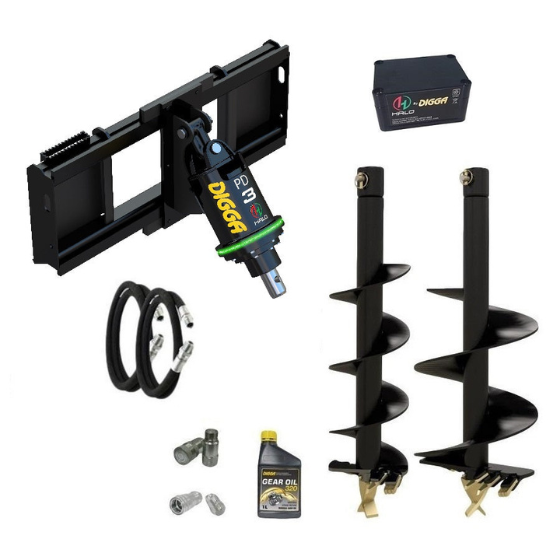

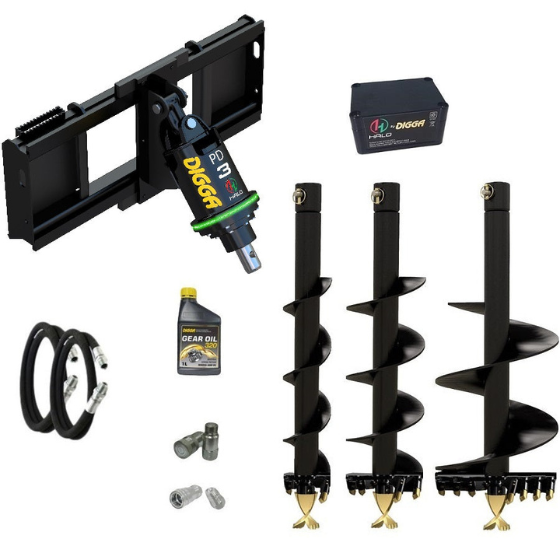

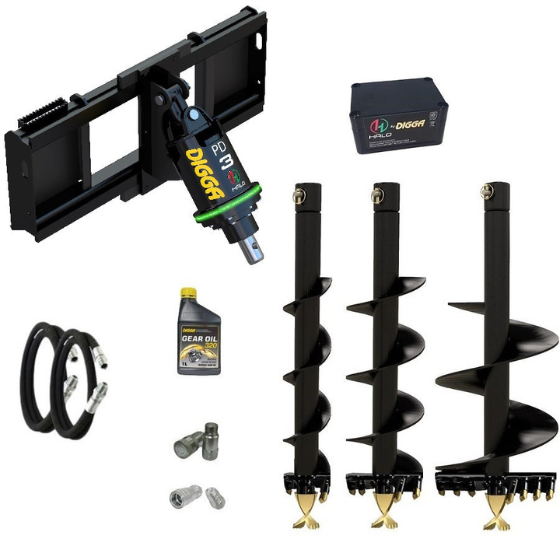

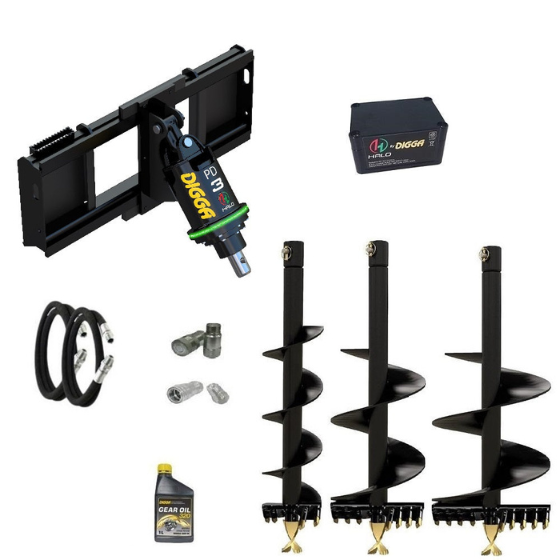

Digga PDH3 HALO auger drive combo package tractor up to 120Hp

From $4,369.00 AUD
GST is included in price. Shipping calculated at checkout.

PDH3 Sliding Frame with: Choose an option

PDH3 Sliding Frame with: Choose an option
200mm & 300mm

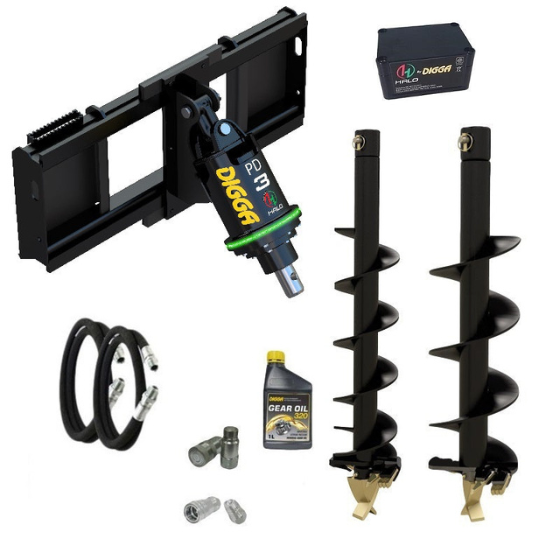

200mm & 300mm + Battery Park
225mm & 300mm
225mm & 300mm + Battery Pack
225mm & 350mm
225mm & 350mm + Battery Pack

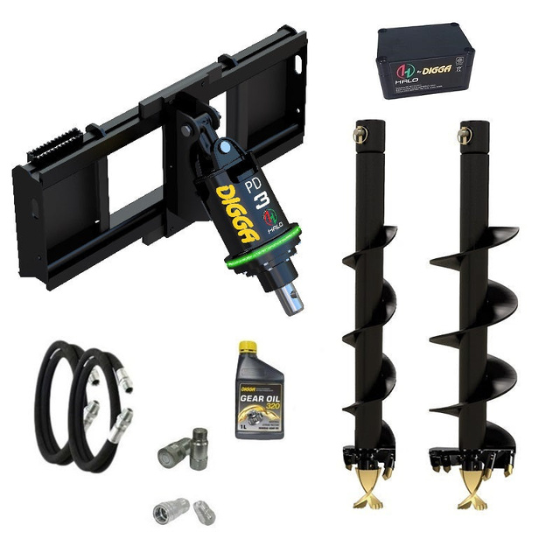

250mm & 300mm
250mm & 300mm + Battery Pack

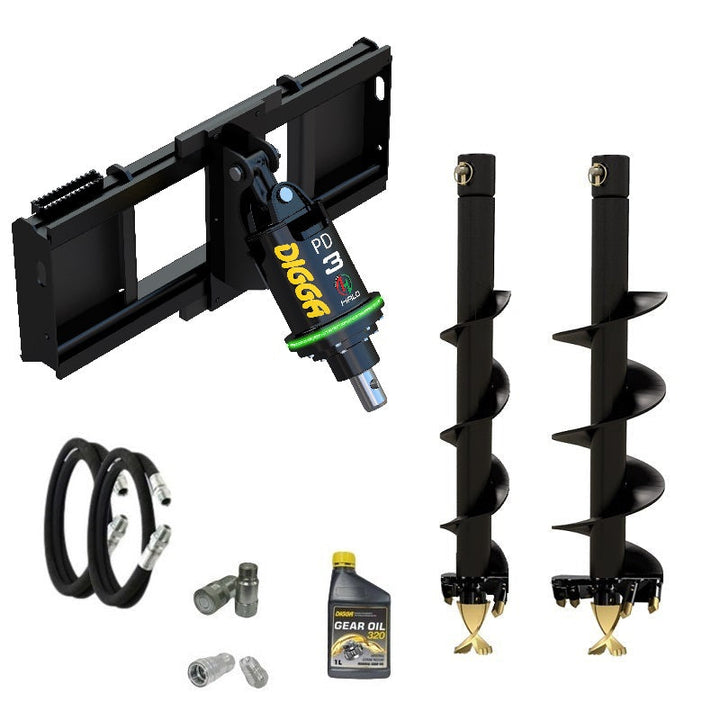

250mm & 350mm
250mm & 350mm + Battery Pack
300mm & 450mm
300mm & 450mm + Battery Pack
350mm & 450mm
350mm & 450mm + Battery Pack
450mm & 600mm
450mm & 600mm + Battery Pack
150mm 225mm & 350mm
150mm 225mm & 350mm + Battery Pack
150mm 250mm & 350mm
150mm 250mm & 350mm + Battery Pack

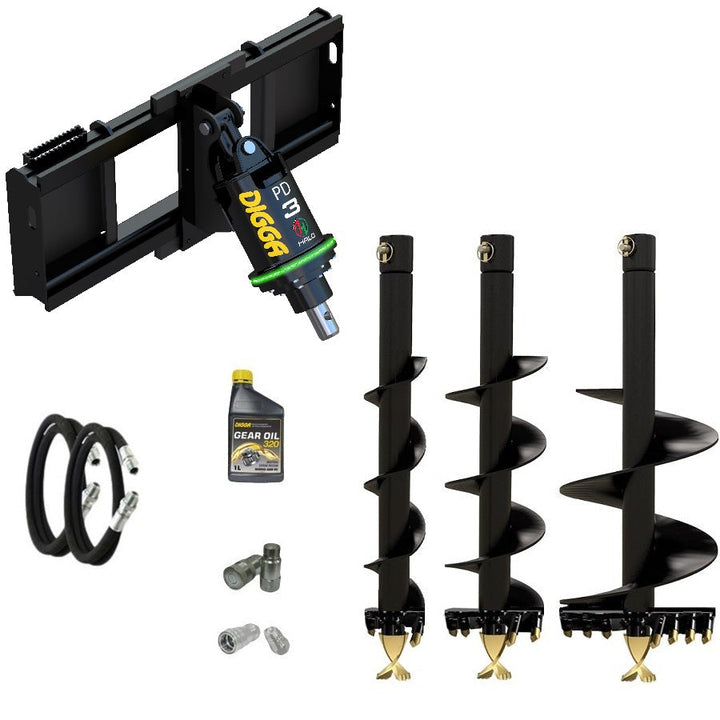

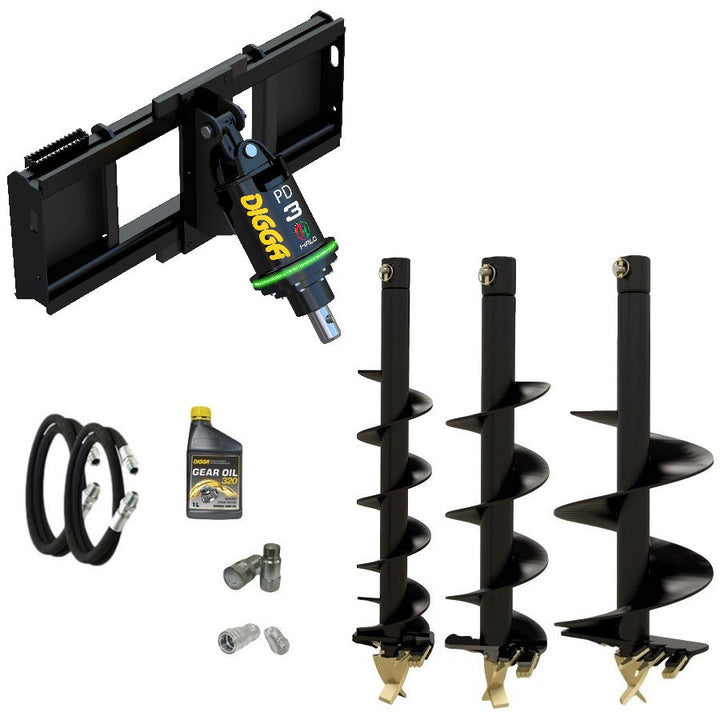

200mm 300mm & 450mm
200mm 300mm & 450mm + Battery Pack
225mm 300mm & 450mm
225mm 300mm & 450mm + Battery Pack

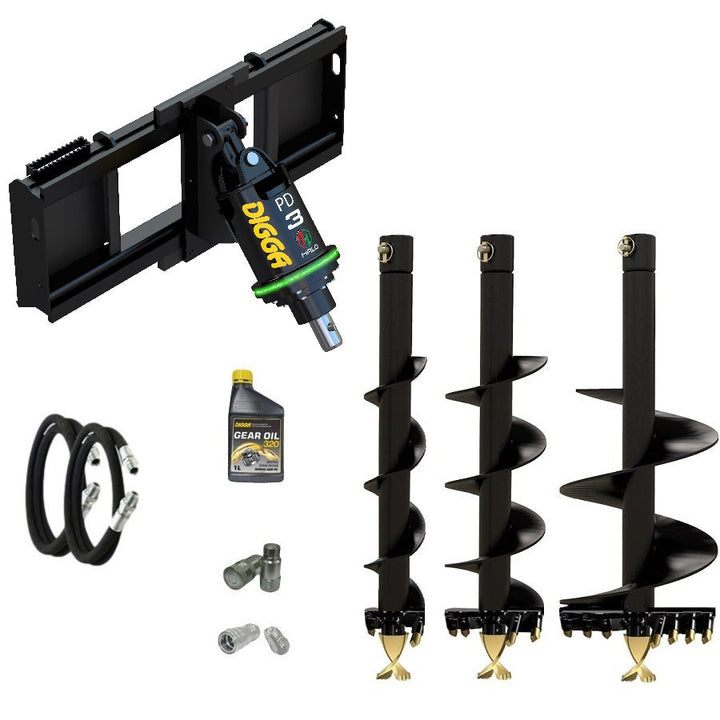

225mm 350mm & 450mm
225mm 350mm & 450mm + Battery Pack

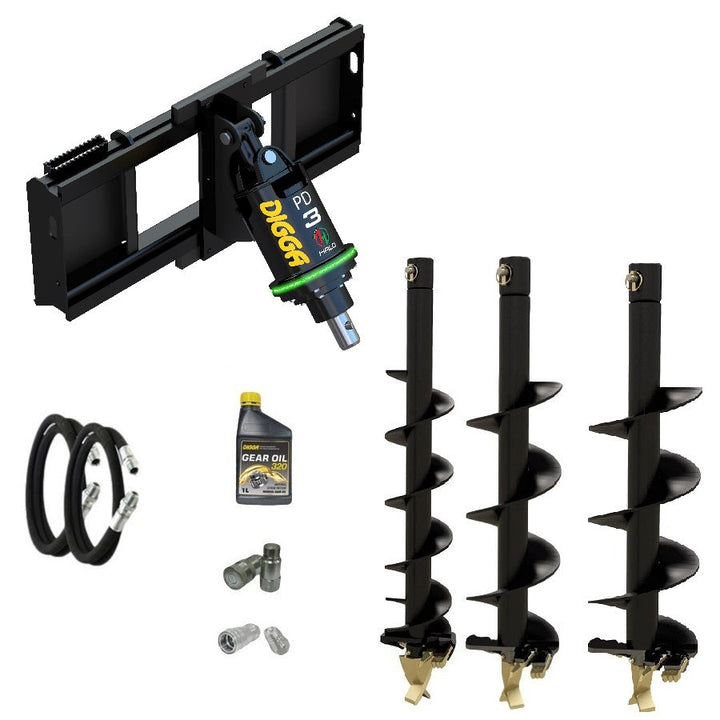

250mm 350mm & 450mm

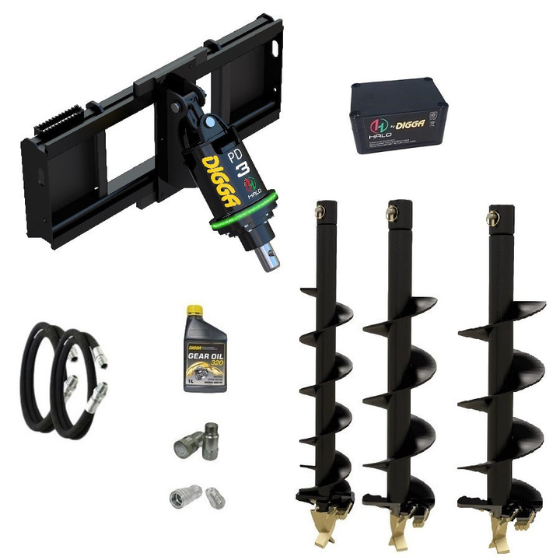

250mm 350mm & 450mm + Battery Pack
300mm 450mm & 600mm
300mm 450mm & 600mm + Battery Pack
350mm 450mm & 600mm
350mm 450mm & 600mm + Battery Pack
200mm 350mm & 450mm
200mm 350mm & 450mm + Battery Pack

TEETH TYPE: Choose an option

TEETH TYPE: Choose an option
Multi Facet Tungsten
Earth/Rock Combo
Description

The Digga PDH3 Earth Drill is suitable for tractors up to 120 Hp with flow rates between 30 - 50 LPM.

PROUDLY PRODUCED AND MANUFACTURED IN AUSTRALIA

Standard Frames are available to suit:

  • Euro Hitch
  • Multi Fit (same as a Skid Steer Loader)
  • John Deere 200, 300 and 400CX
  • Kubota R410 and R420
  • Burder 3050, 6050 and 8050
  • Nell P118B Front End Load
  • Mc Cormack 60-160
  • Challenge - Aus Hitch
  • New Holland APC27 and APC20 Loader

The Kubota R420S and R520S will incur a surcharge.  Please contact us for more information.

Choose your package of Frame Type, Number of Augers and Type of Augers from the Drop Down Menu above.

Augers are available in 2 different tooth and pilot styles:

Multi Facet Tungsten (MFT): suitable for hard ground conditions including clay
Earth/Rock Combo (RC): suitable for harder ground conditions including fracturable rock, asphalt and concrete.



What is HALO

HALO has a highly visible indicator - Digga Australia

Highly visible indicator

Halo features recessed high accuracy inclination green and red LED indicators, which can be clearly seen in daylight. With Halo, there in no need for an in-cab display screen, and no need to take your eyes off the job to realign your auger.



HALO has a 'no setup' battery option - Digga Australia

No setup (battery option)

Halo can be connected to the in-cab cigarette lighter, or powered by a magnetised rechargeable battery which will last all day, and can be charged via USB or a 240V wall charger. The battery pack can be attached to the drive hood, frame, machine boom, or placed in-cab.



HALO lets you preset the angle of inclination - Digga Australia

Set angle of inclination

The battery powered option features a 'zeroing' function which lets the operator set the angle of inclination with the press of a button. This feature is ideal for the installation of shade sails.



HALO innovative technology - Digga Australia

Technology

HALO utilises a microprocessor and 6 sensors to provide accurate readings to +/- 0.25 degrees - Even under heavy vibration. Effectively eliminating the need for a spotter with a spirit level. The dust/water proof LED ring is also recessed into the hood to protect it from knocks.



HALO is Australian made - Digga Australia

Durable Australian quality

HALO is proudly made in Australia, and has undergone 4 years of development & testing to ensure the unit works faultlessly, and is capable of enduring the rigors of our industry.

Digga PDH3 Earth Drill Specifications:

Torque Range: 987 - 2307 Nm
Oil Flow Range: 30 - 50 Lpm
Oil Pressure Range: 60 - 240 Bar
Hub: 65mm Round


Auger Specifications:

Digga 150mm A4 Auger:
Overall Length 1250mm
65mm Round Hub
Padloc Lock-in Teeth

Digga 225mm A4 Auger:
Overall Length 1250mm
65mm Round Hub
Padloc Lock-in Teeth

Digga 250mm A4 Auger:
Overall Length 1250mm
65mm Round Hub
Padloc Lock-in Teeth

Digga 300mm A4 Auger:
Overall Length 1250mm
65mm Round Hub
Padloc Lock-in Teeth

Digga 350mm A4 Auger:
Overall Length 1250mm
65mm Round Hub
Padloc Lock-in Teeth

Digga 450mm A4 Auger:
Overall Length 1250mm
65mm Round Hub
Padloc Lock-in Teeth

Digga 600mm A4 Auger:
Overall Length 1250mm
65mm Round Hub
Padloc Lock-in Teeth



Pick up available from Brisbane, Gold Coast, Sydney or Melbourne
Freight available Australia wide.
