Digga PD4-5 and PDH4-5 Auger Drive for Mini Excavators up to 5T

The Digga PD4-5 Earth Drill is suitable for mini excavators up to 5 tonnes.

PROUDLY PRODUCED AND MANUFACTURED IN AUSTRALIA

Package includes:

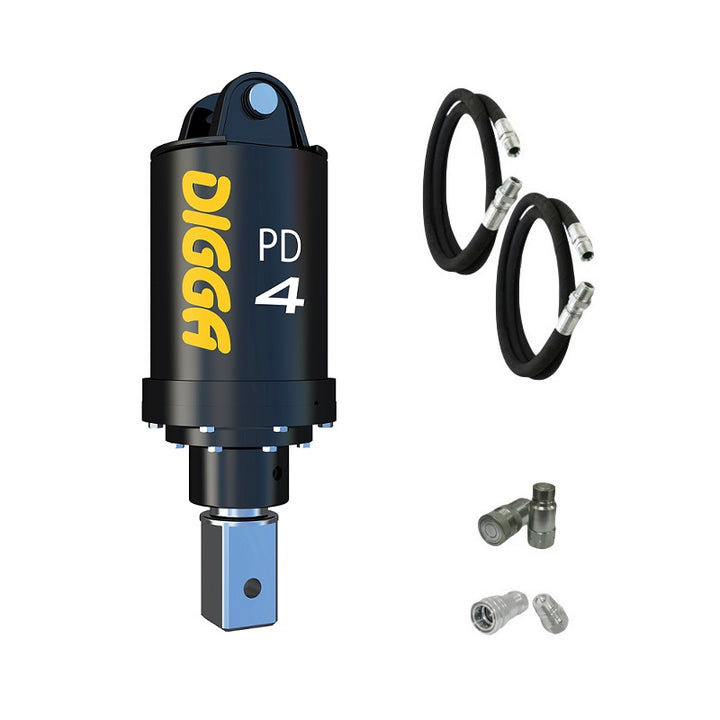

1x Digga PD4-5 Auger Drive with 75mm Square Drive
1x Hoses and Hydraulic Couplers (poppet or flat faced)

Optional extras:

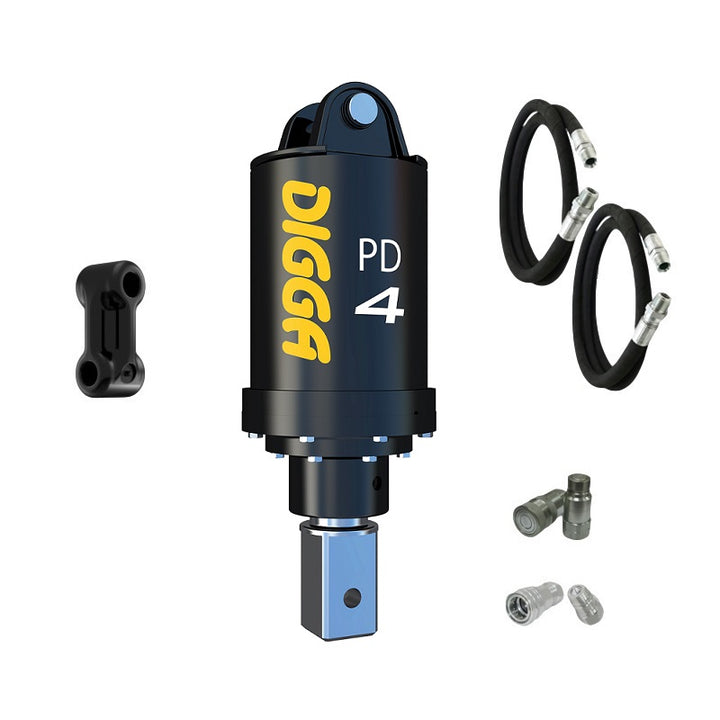

Link Block

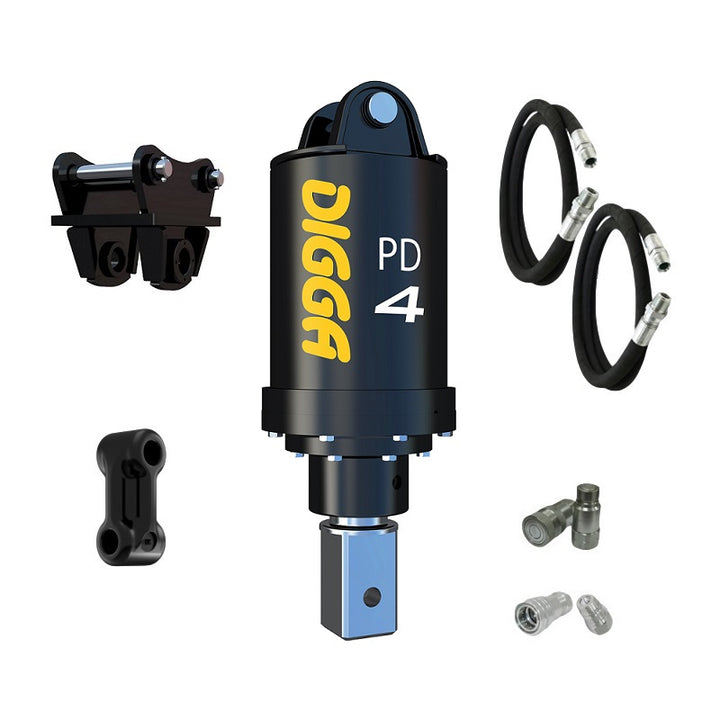

Double Pin Hitch with Link Block

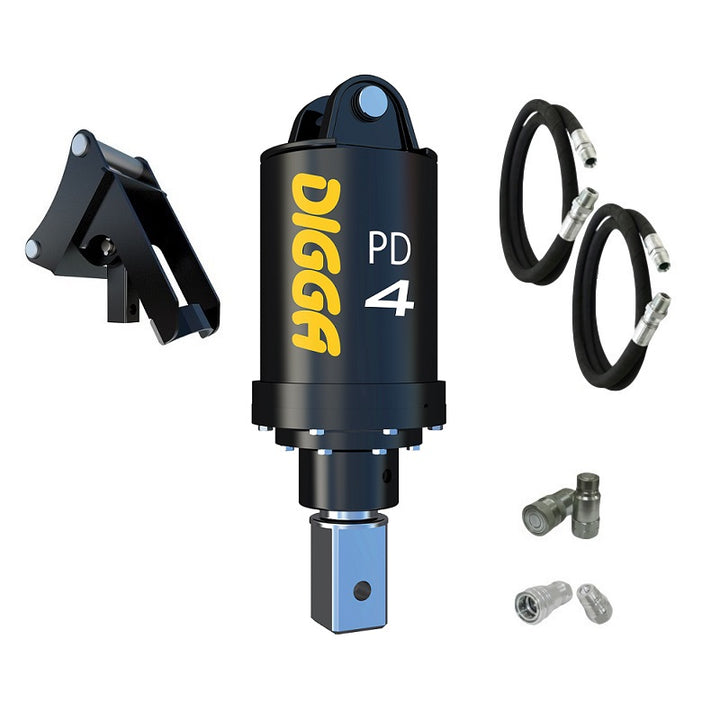

Cradle Hitch with Link Block

When Choosing a Frame or Hitch Package, Please Provide the Make and Model of Your Machine in the "Special Instructions For Seller" Section Upon Checkout.

Specifications:

Torque Range: 2316 - 4448 Nm
Oil Flow Range: 55 - 85 Lpm
Oil Pressure Range: 60 - 240 Bar
Hub: 75mm Square

PDH4-5 with Halo Alignment options include:

Link Block with Halo DIY Cable Install Kit
Single Pin Hitch with Halo DIY Cable Install Kit
Double Pin Hitch and Link Block with Halo DIY Cable Install Kit

Link Block with Halo and Battery Pack
Single Pin Hitch with Halo and Battery Pack
Double Pin Hitch and Link Block with Halo and Battery Pack

When Choosing a Frame or Hitch Package, Please Provide the Make and Model of Your Machine in the "Special Instructions For Seller" Section Upon Checkout.

What is HALO

Highly visible indicator

Halo features recessed high accuracy inclination green and red LED indicators, which can be clearly seen in daylight. With Halo, there in no need for an in-cab display screen, and no need to take your eyes off the job to realign your auger.



No setup (battery option)

Halo can be connected to the in-cab cigarette lighter, or powered by a magnetised rechargeable battery which will last all day, and can be charged via USB or a 240V wall charger. The battery pack can be attached to the drive hood, frame, machine boom, or placed in-cab.



Set angle of inclination

The battery powered option features a 'zeroing' function which lets the operator set the angle of inclination with the press of a button. This feature is ideal for the installation of shade sails.



Technology

HALO utilises a microprocessor and 6 sensors to provide accurate readings to +/- 0.25 degrees - Even under heavy vibration. Effectively eliminating the need for a spotter with a spirit level. The dust/water proof LED ring is also recessed into the hood to protect it from knocks.



Durable Australian quality

HALO is proudly made in Australia, and has undergone 4 years of development & testing to ensure the unit works faultlessly, and is capable of enduring the rigors of our industry.

Pick up available from Brisbane, Gold Coast, Sydney or Melbourne
Freight available Australia wide. Contact us for a quote.
