Trenching Attachment for Mini Excavators up to 4.5T
The Digga Mini Excavator Bigfoot Trencher with 900mm Chain has the option of 3 different Chain Sizes, with 3 different types of Teeth available:
100mm, 150mm and 200mm Cutting Widths.

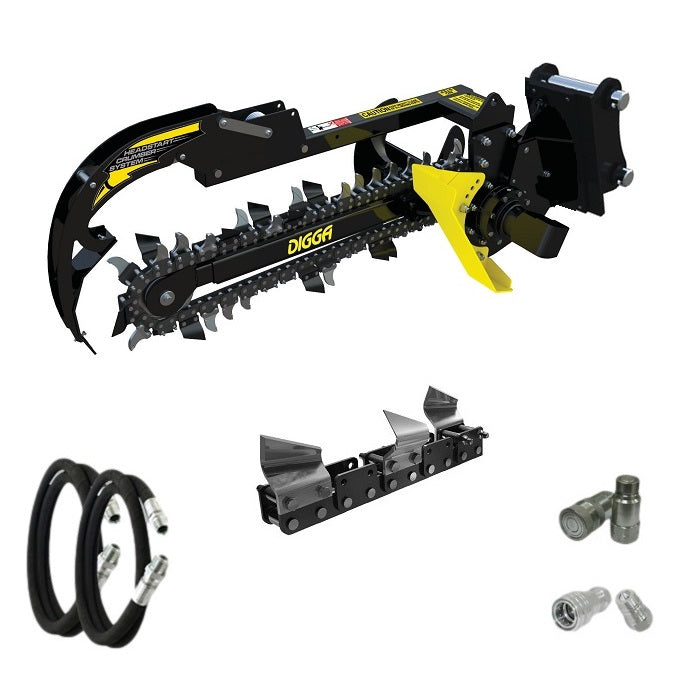

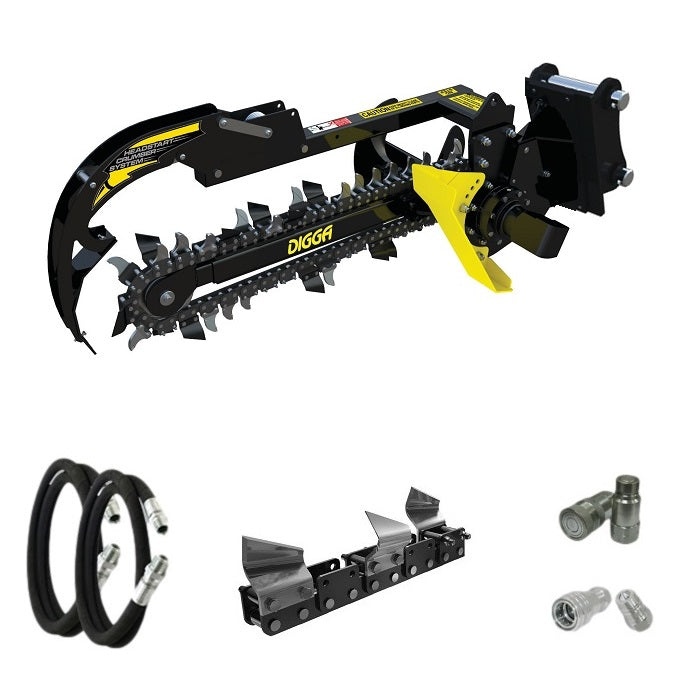

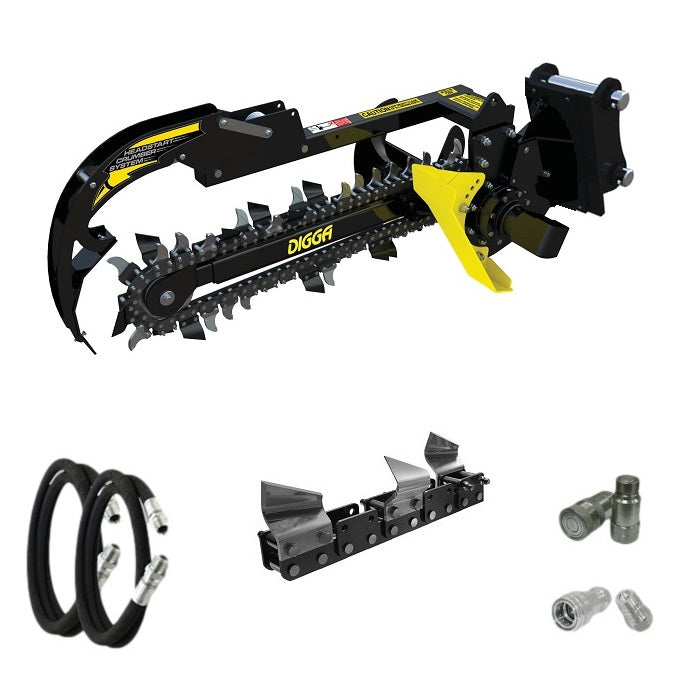

Earth Chain: Earth Teeth on every "Second Station." Best for soft clean ground with no floaters or tree roots.

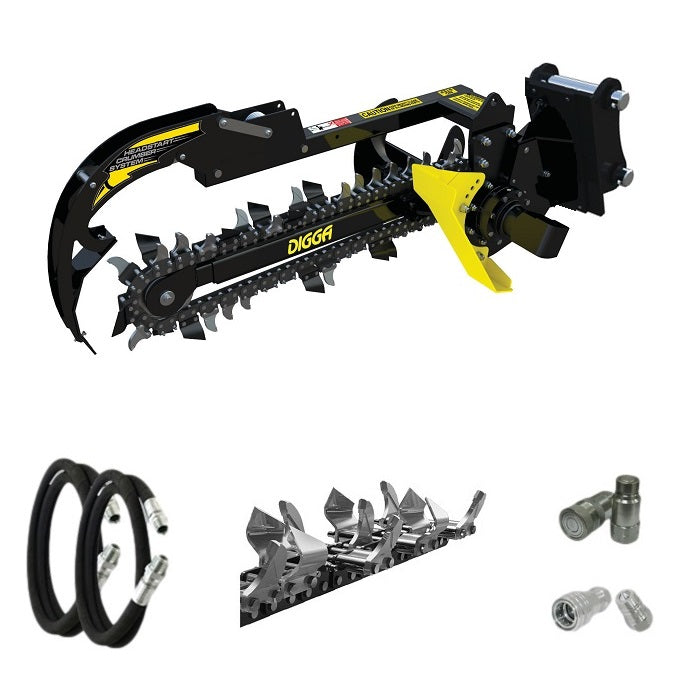

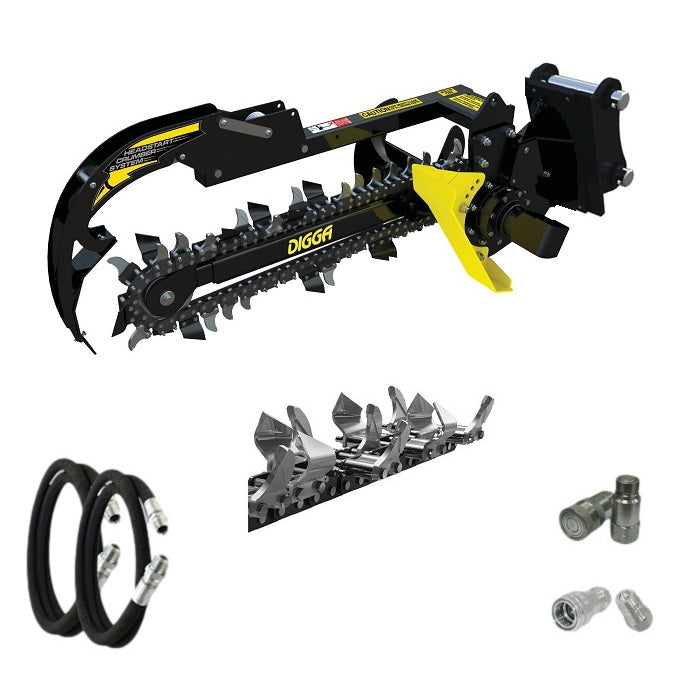

Combination Chain: 70% Diggatac Teeth and 30% Earth Teeth. Best for most applications. Cuts through hard soil, roots, shale and rocky ground.

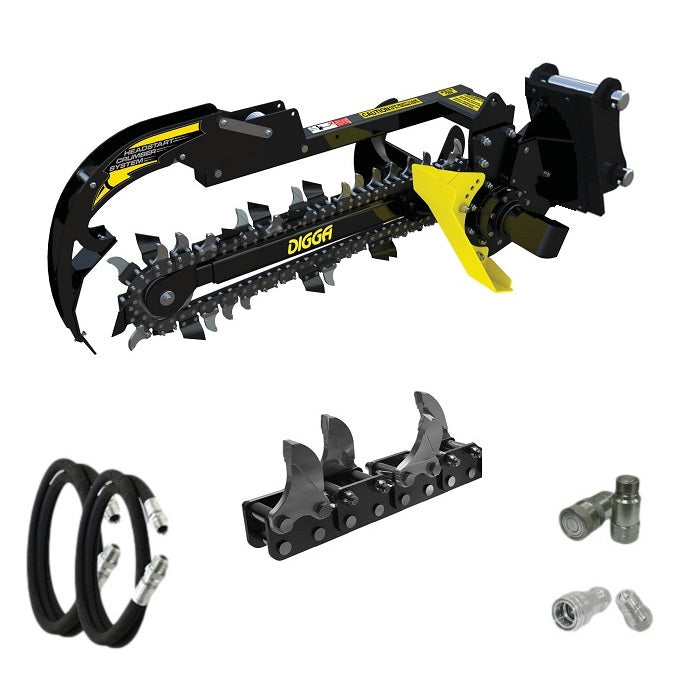

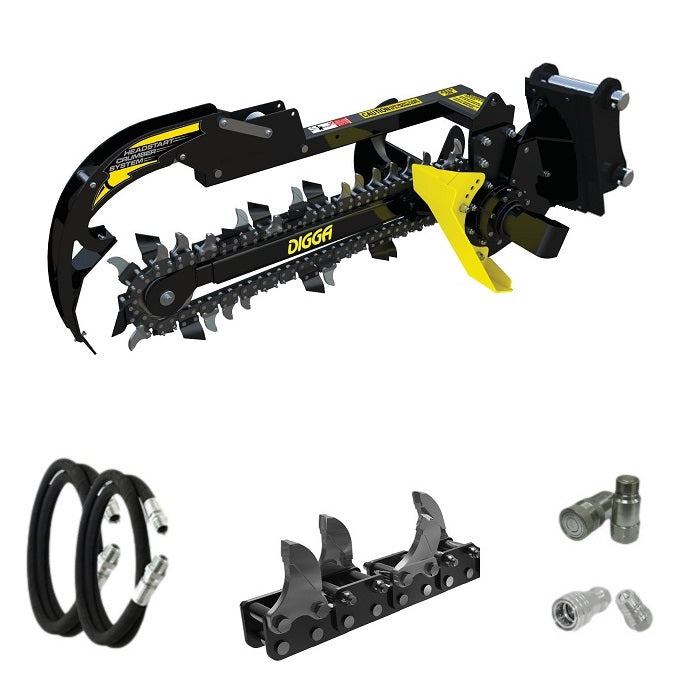

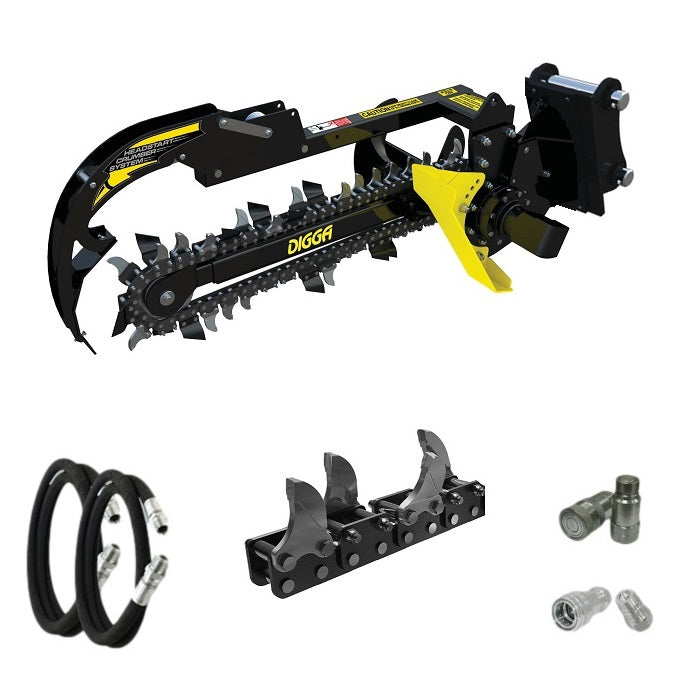

Diggatac Chain: Diggatac Carbide Teeth. Best for hard shale, asphalt or frozen ground.
Suits all makes and models of Mini Excavators with a minimum flow rate of 50Lpm.

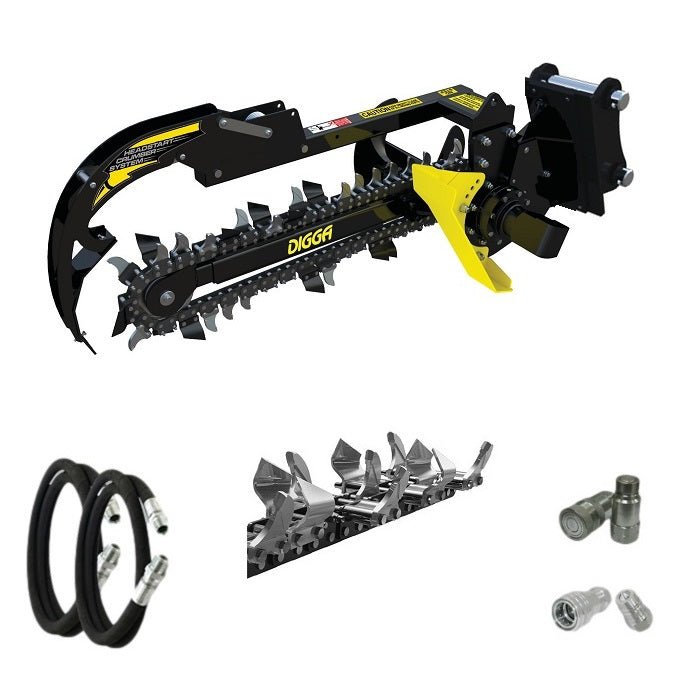

The Mini Excavator Bigfoot Trencher includes:
- Your choice of chain
- Hoses and Couplers to suit your machine
- Excavator Hitch
- Crumber Bar
The Mini Excavator Trencher is sold as a "Plug and Play" package. There is nothing more needed to start trenching professionally.
Pick up from our warehouses in Brisbane, Sydney or Melbourne
Freight available Australia wide
Ideal for Mini Excavators, the Mini Excavator Bigfoot Trencher can be used for pipe laying for irrigation, underground power & communications, road repairs, general construction.
PROUDLY PRODUCED AND MANUFACTURED IN AUSTRALIA
Adjustable depth skid footPrecision depth control ensures the spoil auger has optimum ground clearance. Take advantage of every bit of valuable horsepower when trenching. Preset depths: 600 / 750 / 900mm.
Heavy duty crumbing systemStart trenching with the crumber in-ground. A super heavy duty spring ensures the crumber stays engaged with the bottom of the trench for maximum spoil removal from start to finish. View animation.
Skid foot can be seen from the cabThe new design foot can be clearly seen from the cab and allows the operator to see when the trencher is in the correct trenching position. No need for a spotter.
A cleaner work-side of the trenchDigga's new foot design also feeds overburden back onto the chain, transferring it to the spoil auger for a cleaner clearer work side of the trench.
Anti-back flex chain designYou can be guaranteed of quality and superior performance with our Anti-back Flex design. It prevents the chain links from flexing back in tough soil conditions.
Trench in all ground conditions
Available in a number of different tooth configurations for trenching in soft ground, mixed grounds and even permafrost so you can get the job done no matter what environment you are in. See chain options.
|100 / 150 / 200 mm
|Foot Depth Presets
|450 / 600 / 750 / 900 mm
|2K Bell EATON
|Max Pressure - Do not exceed
|240 bar @ 60 lpm
|Max Flow - Do not exceed
|95 lpm @ 200 bar
|Max Continuous Power
|25 Kw (34 hp)
|Weight - with built in frame*
|Weight - with bolt on frame*
Find the Right Mini Trencher for the Job
Do you have a project coming up that requires a reliable mini loader trencher attachment? Deep, quick and consistent trenching is a necessity on many projects, for everything from utility lines to irrigation systems to power and water lines. This small trencher from Digga is up to the task, offering peerless performance in any type of soil. The product is manufactured right here in Australia and match the highest standards for industry quality. The trencher pairs a Digga-made gearbox with an Eaton motor - a combination that delivers strong performance and complete reliability even in the toughest, rockiest soil.
|Choose your Chain Size and Chain Type Here
Digga Mini Excavator Trencher 100mm Earth Chain, Digga Mini Excavator Trencher 150mm Earth Chain, Digga Mini Excavator Trencher 200mm Earth Chain, Digga Mini Excavator Trencher 100mm Combo Chain, Digga Mini Excavator Trencher 150mm Combo Chain, Digga Mini Excavator Trencher 200mm Combo Chain, Digga Mini Excavator Trencher 100mm Diggatac Chain, Digga Mini Excavator Trencher 150mm Diggatac Chain, Digga Mini Excavator Trencher 200mm Diggatac Chain
