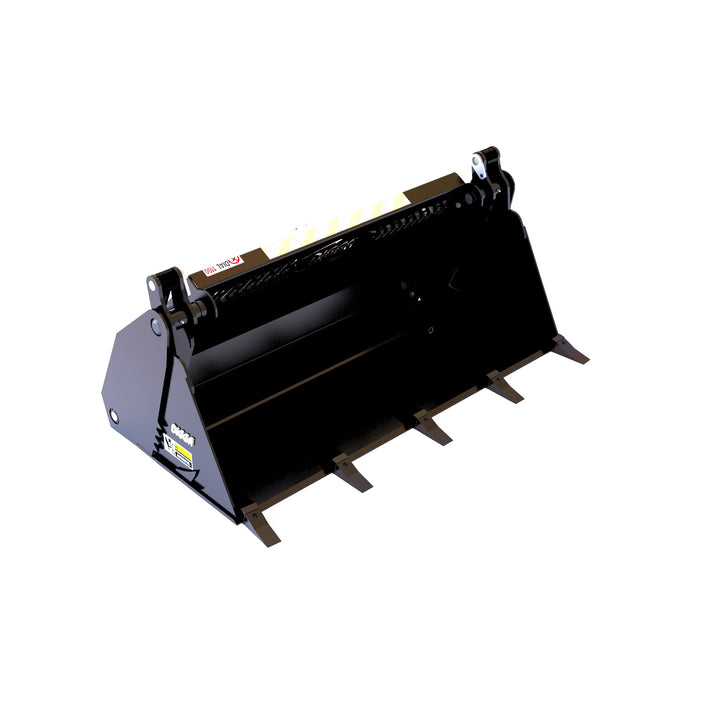

Digga Mini 4 in 1 Bucket

  • Sale
  • Regular price $2,963.00
Shipping calculated at checkout.



Digga Mini 4 in 1 Bucket

Machine Suitability: Mini Machines, Mini Loaders

Standard Range: 880mm – 1400mm (Suits Stand On Machines & ASV RC30)

The MUST HAVE attachment from Digga.

Perfect for grading, scraping, grappling, dozing, material spreading and most construction work.

Price Inclusions:

Bucket, Hoses and Couplers

NB: This product is made to order. Please check for current build and delivery times.

Options:

5 CHISEL POINT TOOTH KIT TO SUIT BUCKETS 880MM TO 1130MM

5 TIGER TOOTH KIT TO SUIT BUCKETS 880MM TO 1130MM

6 CHISEL POINT TOOTH KIT TO SUIT BUCKETS 1225MM TO 1400MM

6 TIGER TOOTH KIT TO SUIT BUCKETS 1225MM TO 1400MM

B.O.E (Cutting Edge)

Lock Valve (Optional if required)

*Teeth and B.O.E must be ordered at time of purchace.

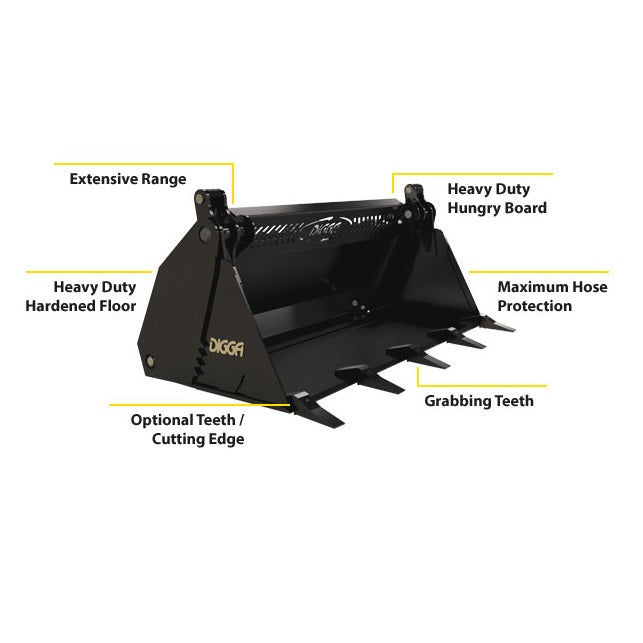

Features:

  • Full range includes standard, heavy duty, and high volume
  • Grabbing teeth profiled on both front/rear overlap for greater grip of logs or other debris
  • Optional reversible bolt-on cutting edges for all 3 edges of the Mini 4 in 1 bucket
  • Optional chisel and tiger teeth available with pin on design
  • Heavy duty 12mm hardened steel floor
  • Unique rear channel design provides maximum hose protection
  • 1-piece heavy duty grille/hungry board that is fully welded



STANDARD RANGE 880 MM 900 MM 1070 MM 1100 MM
Depth (Bucket Closed) 580 mm 580 mm 580 mm 580 mm
Bucket Cutting Width 880 mm 900 mm 1070 mm 1100 mm
Height 493 mm 493 mm 493 mm 493 mm
Weight 125 kg 130 kg 142 kg 145 kg
Struck Volume 0.09 m³ 0.09 m³ 0.11 m³ 0.11 m³
Heaped Volume 0.11 m³ 0.11m³ 0.14 m³ 0.14 m³
STANDARD RANGE  1130 MM 1225 MM 1300 MM 1400 MM
Depth (Bucket Closed) 580 mm 580 mm 580 mm 580 mm
Bucket Cutting Width 1130 mm 1225 mm 1300 mm 1400 mm
Height 493 mm 493 mm 493 mm 493 mm
Weight 148 kg 159 kg 168 kg 181 kg
Struck Volume 0.12 m³ 0.13 m³ 0.14 m³ 0.15 m³
Heaped Volume 0.15 m³ 0.16 m³ 0.17 m³ 0.19 m³
