Digga Magnum Mulcher

From $53,629.00 AUD
GST is included in price. Shipping calculated at checkout.

Model: CLICK HERE TO CHOOSE OPTION

Model: CLICK HERE TO CHOOSE OPTION
High Flow Skid Steer (MM60S)
Excavator up to 12T (MM36E)
Excavator up to 20T (MM60E)

Add Oil Cooler: CLICK HERE TO CHOOSE OPTION

Add Oil Cooler: CLICK HERE TO CHOOSE OPTION
No Thanks
Oil Cooler for Skid Steer Model

Add Custom Controller: CLICK HERE TO CHOOSE OPTION

Add Custom Controller: CLICK HERE TO CHOOSE OPTION
No Thanks
Upgrade to Custom Controller for Skid Steer Model
Description

Digga Magnum Mulcher

Suited to High Flow Skid Steer Loaders & Excavators up to 20T

The Digga Magnum Mulcher is ideal for clearing firebreaks, land clearing, maintenance of park or forestry trails, utility line clearing, vegetation management and re-mediation. Perfect for grinding small and large material, trees or brush up to 8” in diameter.

*This product is built to order. Please request current build and delivery times for this product before purchase.  Use the form below to request a price.

Options:

1. High Flow Skid Steer Model:

- Includes Magnum Mulcher, Built-in Frame, Controller Kit, Hoses & Couplers.

- Optional Oil Cooler (Additional Cost)

- Option to upgrade to Digga Custom Controller Kit. (Additional Cost)

2. Excavator Model for up to 12T Machine

- 900MM (36") MULCHER WITH REVERSIBLE CARBIDE TEETH - REQUIRES 106-155LPM

3. Excavator Model for up to 20T Machine

- 1500MM (60") MULCHER WITH REVERSIBLE CARBIDE TEETH- REQUIRES 114-227LPM

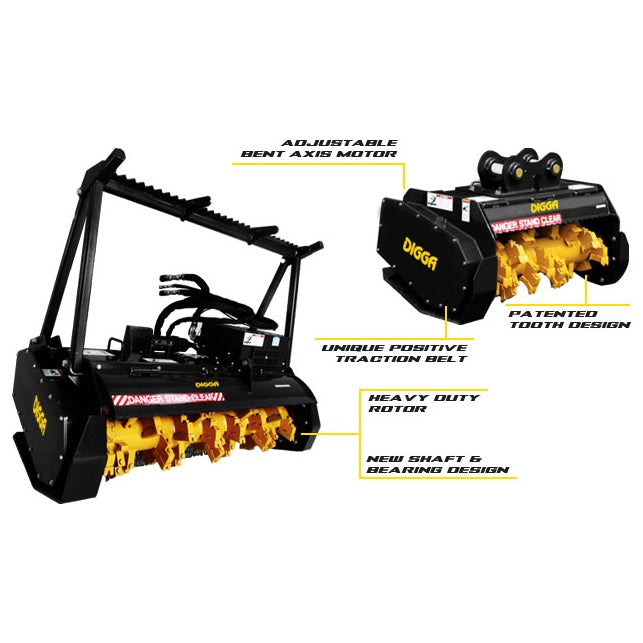

6 Reasons to buy:

Innovative shaft and bearing design

Adjustable bent axis motor

Integrated hydraulic oil

Heavy duty rotor design

Unique drive belt minimises slippage

Patented reversible tooth design

Features:

  • Heavy Duty Quality Build
  • Suits High Flow Skid Steers & Excavators up to 20T
  • Fixed hammers with replaceable carbide teeth / Claw option available
  • Shreds up to 8” diameter hardwood trees
  • Adjustable push bar on Skid Steer models
  • Optional oil cooler available for specific machine models
  • On-board pressure gauge easily viewed from operator’s station to monitor system pressure on units fitted with oil coolers
  • Replaceable abrasion resistant AR400 wear plate on skid shoes
  • Deflector door standard controls particle size and discharge direction on skid steer models



NB: MULCHER REQUIRES A CASE DRAIN LINE



Specification Skid Steer HF Excavator
Model MM60S MM36E MM60E
Machine suitability High flow skid steer loader Up to 12t Up to 20t
Hydraulic flow 114-170 lpm 106-155 lpm 114-227 lpm
Hydraulic Pressure (BAR) 200 - 275 240 - 345 200 - 400
Number of teeth 45 26 45
Width (overall) 1850 mm 1232 mm 1850 mm
Cutting width 1520 mm 915 mm 1520 mm
Weight 1150 kg 726 kg 1230 kg
Package Variants
Model

High Flow Skid Steer (MM60S), Excavator up to 12T (MM36E), Excavator up to 20T (MM60E)

Add Oil Cooler

No Thanks, Oil Cooler for Skid Steer Model

Add Custom Controller

No Thanks, Upgrade to Custom Controller for Skid Steer Model
