Digga 9T Aluminium Loading Ramps

Digga 9t Aluminium Loading Ramps

Digga 9t Aluminium Loading Ramps

Product Description The Digga 9t Aluminium Loading Ramps represent the pinnacle of heavy-duty loading solutions, specifically engineered for the transport of large 8 to 9-tonne excavators and heavy-capacity track loaders. When moving machinery of this scale, structural integrity is paramount. These ramps provide a certified combined capacity of 9000kg, utilizing high-tensile structural aluminium to offer a formidable alternative to traditional steel. This high-grade material ensures that while the ramps are incredibly strong, they remain light enough to be manageable for setup and transport. Designed exclusively for rubber tracks and pneumatic tyres, the rung system provides a smooth, low-vibration loading experience with maximum traction for your most substantial assets.

Product Features

• 9-Tonne Combined Capacity: Extra-heavy-duty reinforcement to safely support machinery with a total combined weight of up to 9000kg.

• Industrial-Grade Aluminium: Offers exceptional structural strength and a superior strength-to-weight ratio compared to heavy steel ramps.

• Optimised Traction Surface: Precision-engineered rungs provide a high-grip surface specifically for rubber-tracked and wheeled machinery.

• Corrosion Resistance: The aluminium construction is naturally resistant to rust and oxidation, ensuring long-term reliability in demanding environments.

• Industrial Safety Pins: Supplied with heavy-duty locking pins to secure the ramps to your trailer or truck tray, effectively preventing kick-out.

• Deep Side-Beam Support: Features reinforced side profiles for increased load distribution and added operator confidence during loading.

Frequently Asked Questions

• Does the 9t rating cover my machine and all attachments? Yes. The 9000kg (9t) limit refers to the total "wet weight." This must account for the excavator or loader, the operator, a full tank of fuel, and any heavy attachments such as hydraulic hammers, tilting hitches, or large buckets.

• Are these ramps suitable for steel-tracked machines? Yes. These ramps are for Universal use and can be used for steel tracked and rubber padded machines plus rubber tracks and pneumatic tyres. The Billet Aluminium rungs have increased structural integrity and are designed for Steel Tracks.

• Are the ramps sold as a set? Yes, these are supplied as a pair to ensure a safe, balanced, and compliant loading solution for your heavy machinery.

• How do I ensure the ramps are properly secured? You must use the provided heavy-duty safety pins to lock the ramp head into the pre-drilled holes in your transport vehicle. This is critical for preventing the ramps from shifting under the high torque of heavy machinery.

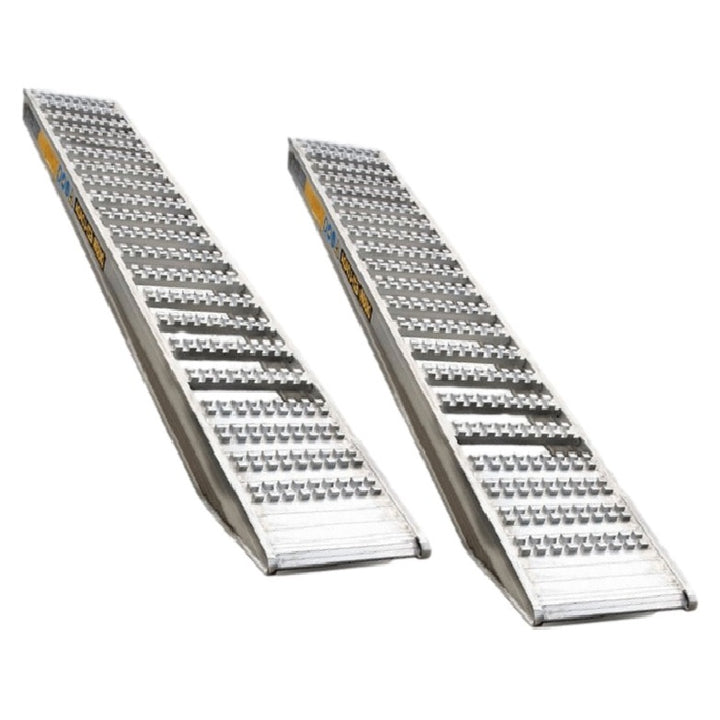

Digga 9T Aluminium Loading Ramps 3.5m long

Suitable for steel track, rubber pad, rubber tracked and rubber tyred machines

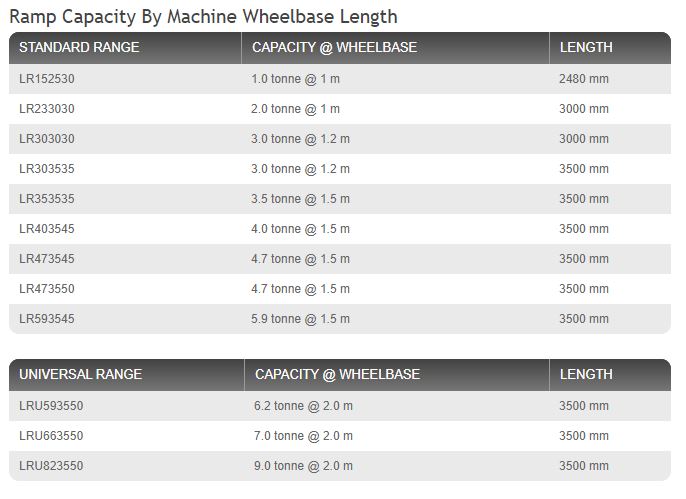

Combined Capacity: 9000Kg

Beam Height: 180mm

Width Internal: 500mm

Width External: 560mm

Weight: 77Kg ea

Overall Length: 3.5m

Includes: 2x Aluminium loading ramps with location pins and clips

Part #: LRU823550

*
