Digga 7T Aluminium Loading Ramps

Digga 7t Aluminium Loading Ramps

Suitable for Steel Tracks, Rubber Pads, Rubber Tracks and Rubber Tyres.

Product Description The Digga 7t Aluminium Loading Ramps are engineered for the heavy-duty transport of 6 to 7-tonne class machinery. At this capacity, equipment such as large excavators and heavy-duty track loaders often carry significant additional weight from sophisticated hydraulic attachments and tilting hitches. These ramps are designed to bridge that gap, providing a certified combined capacity of 7000kg. Manufactured from high-tensile structural aluminium, they offer a formidable alternative to steel ramps—delivering equivalent strength with a much lower weight profile for easier manual handling. The specialised rung system is designed specifically for rubber tracks and pneumatic tyres, ensuring a stable, low-vibration ascent and descent.

Product Features

• 7-Tonne Combined Capacity: Robustly reinforced to safely support heavy plant machinery with a total weight of up to 7000kg.

• Structural Aluminium Construction: Provides extreme durability and a superior strength-to-weight ratio, resisting the warping common in lesser materials.

• Traction-Optimised Rungs: The rung profile is engineered to maintain maximum grip for rubber tracks and tyres, even in demanding site conditions.

• Corrosion and Rust Proof: The high-grade aluminium build ensures the ramps remain structurally sound and professional in appearance, even after years of outdoor use.

• Heavy-Duty Pin Locking: Supplied with industrial-strength safety pins to secure the ramps to your truck or trailer, preventing dangerous kick-outs.

• Reinforced Side Beams: Designed with deeper side profiles to increase structural stiffness and provide a visual guide for the operator.

Frequently Asked Questions

• Does the 7t rating include the weight of my buckets and hitches? Yes. The 7000kg (7t) limit is the "wet weight" capacity. This must include the machine, operator, fuel, and all attachments currently fitted to the equipment.

• Can I use these with steel-tracked machines? Yes. These ramps are for Universal use and can be used for steel tracked and rubber padded machines plus rubber tracks and pneumatic tyres. The Billet Aluminium rungs have increased structural integrity and are designed for Steel Tracks.



• Are these ramps supplied as a set? Yes, these are sold as a pair to ensure a safe, balanced, and compliant loading platform for your machinery.

• What is the best way to store these ramps? While they are corrosion-resistant, we recommend securing them to your trailer or truck using the dedicated mounting points to prevent transit damage and ensure they are always ready for the next job.

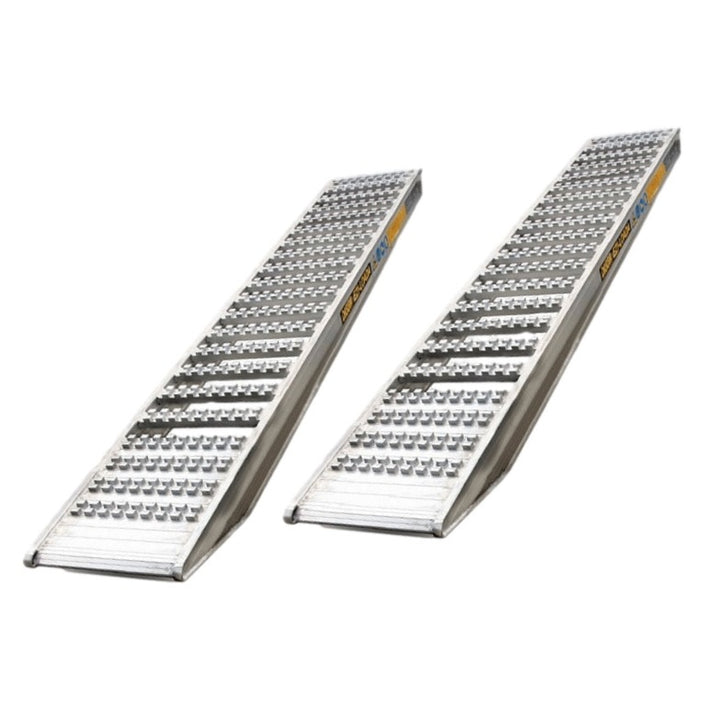

Digga 7T Aluminium Loading Ramps 3.5m long

Suitable for steel track, rubber pad, rubber tracked and rubber tyred machines

Combined Capacity: 7000Kg

Beam Height: 170mm

Width Internal: 500mm

Width External: 560mm

Weight: 61Kg ea

Overall Length: 3.5m

Includes: 2x Aluminium loading ramps with location pins and clips

Part #: LRU663550

*
