Digga 4 in 1 Bucket - High Volume Range

From $5,980.00 AUD
GST is included in price. Shipping calculated at checkout.

Size: CLICK HERE TO CHOOSE OPTION

Size: CLICK HERE TO CHOOSE OPTION
1800mm High Volume
1880mm High Volume
2000mm High Volume
2040mm High Volume
2130mm High Volume

Teeth and Cutting Edges: CLICK HERE TO CHOOSE OPTION

Teeth and Cutting Edges: CLICK HERE TO CHOOSE OPTION
Bucket Only
Add 9 Chisel Teeth
Add 9 Tiger Teeth
Add B.O.E x1 - Front
Add B.O.E x3 - Front / Dozer / Rear

Lock Valve: CLICK HERE TO CHOOSE OPTION

Lock Valve: CLICK HERE TO CHOOSE OPTION
No Lock Valve Required
Add Lock Valve
Description

NOTE: Due to high demand on the Digga 4 in 1 Bucket please call us on 0459 WAREHOUSE (that's 0459927346) prior to placing your order.

Digga 4 in 1 Bucket - High Volume Range

Machine Suitability: extensive range to suit most machines

Your go-to 4 in 1 bucket for grading, scraping, grappling, dozing, spreading and construction work.

Price Inclusions:

BUCKET, HOSES AND COUPLERS

*This product is built to order. Please contact us for current build and delivery times before purchace.

Options:

HV Range: 1800mm - 2130mm (High Cut Grill / Long Floor)

*Lock Valve  is required for CAT, ASV, Kubota and JCB Machines.

Add 9 Chisel Teeth or 9 Tiger Teeth*

Add B.O.E (Cutting Edge) x1 - Front*

Add B.O.E (Cutting Edge) x3 - Front, Dozer & Rear*

*Teeth and Cutting Edges must be purchaced at time of order

*For Custom Teeth Options please contact us directly.



Also available in Standard Range: 1450mm-1727mm (Low Cut Grill / STD Floor)

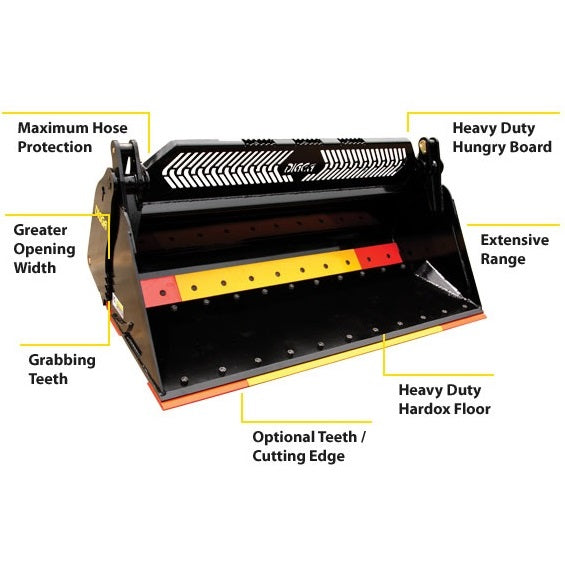

Features:

  • Grabbing teeth profiled on both front/rear overlap for greater grip of logs or other debris.
  • Side curved sections create greater opening bucket width of 860mm.
  • 1-piece heavy duty fully welded 6mm grill/hungry board with unique high visibility design, for clear vision of both front and back bucket edge.
  • Standard Heavy Duty 20mm Floors.
  • Optional reversible bolt on cutting edges for all 3 edges of the bucket
  • Optional chisel or tiger teeth with pin on design.
  • Full range available from 880mm to 2130mm.
  • 12mm and 16mm floors available on request.



HIGH VOLUME 1727 MM 1800 MM 1880 MM
Depth (Bucket Closed) 901 mm 901 mm 901 mm
Bucket Cutting Width 1727 mm 1800 mm 1880 mm
Height 727 mm 727 mm 727 mm
Weight 387 kg 410 kg 425 kg
Struck Volume 0.27 m³ 0.28 m³ 0.29 m³
Heaped Volume 0.36 m³ 0.37 m³ 0.39 m³
HIGH VOLUME (CONT) 2000 MM 2040 MM 2130 MM
Depth (Bucket Closed) 901 mm 901 mm 901 mm
Bucket Cutting Width 2000 mm 2040 mm 2130 mm
Height 727 mm 727 mm 727 mm
Weight 432 kg 437 kg 450 kg
Struck Volume 0.31 m³ 0.32 m³ 0.33 m³
Heaped Volume 0.42 m³ 0.43 m³ 0.45 m³
Package Variants
Size

1800mm High Volume, 1880mm High Volume, 2000mm High Volume, 2040mm High Volume, 2130mm High Volume

Teeth and Cutting Edges

Bucket Only, Add 9 Chisel Teeth, Add 9 Tiger Teeth, Add B.O.E x1 - Front, Add B.O.E x3 - Front / Dozer / Rear

Lock Valve

No Lock Valve Required, Add Lock Valve
