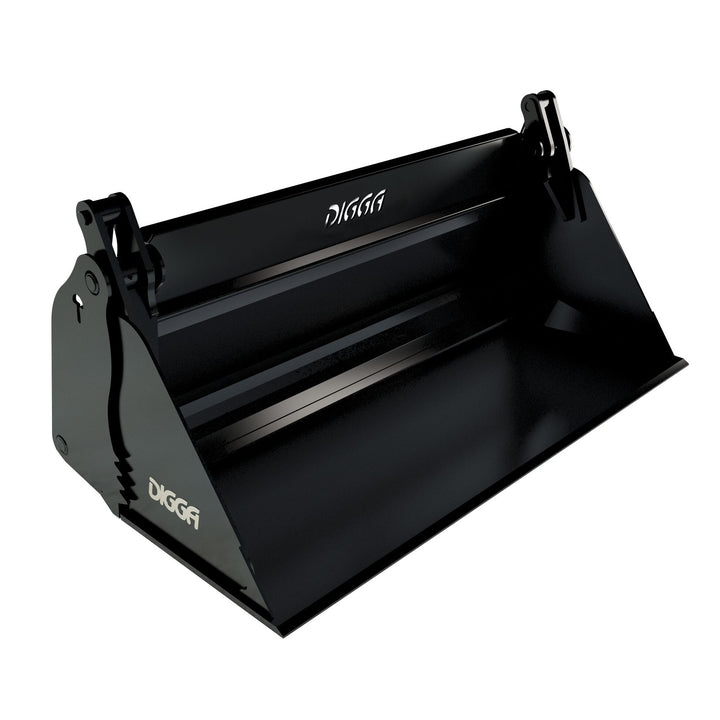

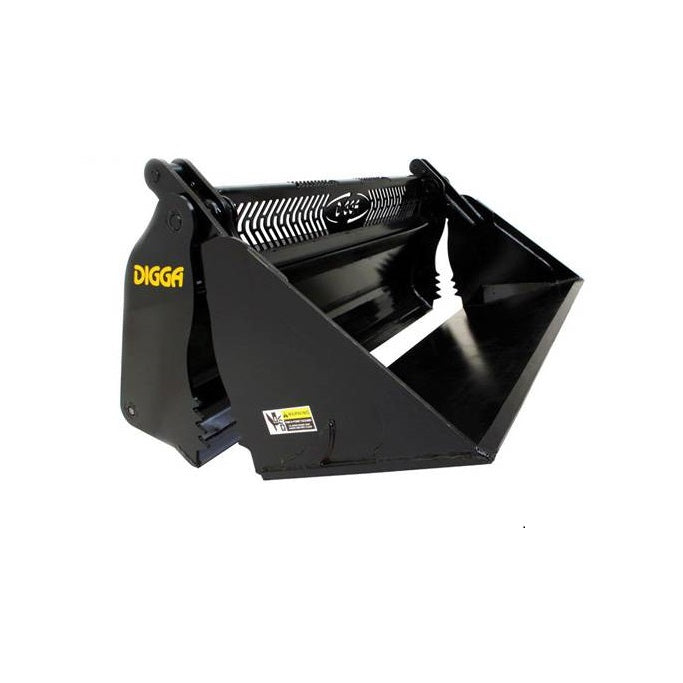

Digga 4 in 1 Agricultural Bucket
NOTE: Due to high demand on the Digga 4 in 1 Bucket please call us on 0459 WAREHOUSE (that's 0459927346) prior to placing your order. Digga 4 in 1 Agricultural Bucket Machine Suitability: Suits...
Finance available through Earthmoving Warehouse Finance.
Powered by BK Brokers.
NOTE: Due to high demand on the Digga 4 in 1 Bucket please call us on 0459 WAREHOUSE (that's 0459927346) prior to placing your order.
Digga 4 in 1 Agricultural Bucket
Machine Suitability: Suits all tractors including those with standard euro hitch
Huge Range of sizes available from 1550mm - 2200mm
Packed with practical features this is Digga’s updated 4 in 1 bucket for the agricultural industry.
Price Inclusions:
Bucket, Hoses & Couplers.
NB: This product is built to order. Please check for current build and delivery times before purchasing this product.
Options:
1550mm - 2200mm Sizes available
Add 5 to 11 Chisel Teeth or Tiger Teeth.
Add B.O.E (Cutting Edge) - Front
Important Information:
If you select to Add Teeth, Please specify Chisel or Tiger Teeth on your order form.
*Teeth and Cutting Edge must be purchased at time of order. Can not be retro-fitted.
**AG Bucket can only take 1x Front B.O.E
***If you require 2 or more Cutting Edges please contact us directly for a custom order.
Features:
- Standard Heavy Duty 16mm floors.
- 20mm floors available on request.
- Light weight designed specifically for Agricultural machines.
- Full range available from 1500mm to 2200mm.
- Grabbing teeth profiled on both the front/rear overlap for greater grip of logs and other debris.
- Optional reversible bolt on cutting edges for all 3 edges of the bucket.
- Chisel or Tiger teeth - pin on design.
- Same fitment on tractor as the general-purpose bucket.
| SPECS | 1550MM | 1600MM | 1650MM | 1680MM | 1727MM |
|---|---|---|---|---|---|
| Depth (Bucket Closed) | 826mm | 826mm | 826mm | 826mm | 826mm |
| Bucket Cutting Width | 1550mm | 1600mm | 1650mm | 1680mm | 1727mm |
| Height | 638mm | 638mm | 638mm | 638mm | 638mm |
| Weight | 285 kg | 300 kg | 310 kg | 315 kg | 320 kg |
| Struck Volume | 0.22 m³ | 0.23 m³ | 0.24 m³ | 0.24 m³ | 0.25 m³ |
| Heaped Volume | 0.29 m³ | 0.30 m³ | 0.31 m³ | 0.32 m³ | 0.31 m³ |
| SPECS |
1800MM | 1880MM | 2000MM | 2130MM | 2200MM |
|---|---|---|---|---|---|
| Depth (Bucket Closed) | 826mm | 826mm | 826mm | 826mm | 826mm |
| Bucket Cutting Width | 1800mm | 1880mm | 2000mm | 2130mm | 2200mm |
| Height | 638mm | 638mm | 638mm | 638mm | 638mm |
| Weight | 330 kg | 340 kg | 360 kg | 380 kg | 390 kg |
| Struck Volume | 0.26 m³ | 0.27 m³ | 0.29 m³ | 0.31 m³ | 0.32 m³ |
| Heaped Volume | 0.34 m³ | 0.36 m³ | 0.38 m³ | 0.41 m³ | 0.42 m³ |
