Digga 4.7t Aluminium Loading Ramps (Posi-Track Series)

Product Description The Digga 4.7t Aluminium Loading Ramps are high-performance ramps specifically designed to handle the unique demands of Posi-Track loaders and compact track loaders (CTL). When moving heavier Posi-Track units, the weight distribution and aggressive tread patterns require a ramp that offers both extreme structural integrity and superior grip. Rated for a combined weight of up to 4700kg, these ramps are manufactured from high-tensile structural aluminium, providing the strength of steel without the excessive weight. The specialised rung design ensures a smooth, vibration-reduced loading experience while maintaining maximum traction for rubber tracks, making them the ideal choice for contractors and site managers.

Product Features

• 4.7-Tonne Combined Capacity: Heavily reinforced to safely support Posi-Tracks and loaders with a total weight of up to 4700kg.

• Posi-Track Optimised: Engineered to accommodate the specific weight distribution and track widths of compact track loaders.

• High-Tensile Aluminium Construction: Offers industrial-grade strength while remaining light enough for manual handling and transport.

• Specialised Traction Rungs: Designed to provide maximum grip for rubber tracks and pneumatic tyres, ensuring a safe ascent in all weather conditions.

• Rust and Corrosion Resistant: The aluminium build ensures the ramps will not rust or degrade, even when stored on open trailers or exposed to the elements.

• Safety Locking System: Equipped with a secure pin-locking system to firmly attach the ramps to your vehicle, eliminating the risk of ramp movement.

Frequently Asked Questions

• Why are these recommended for Posi-Tracks? Posi-Track loaders often have a higher point-load concentration and specific track patterns. These 4.7t ramps are built with reinforced structural members to handle these specific stresses safely.

• Does the 4.7t rating include my attachments? Yes. The 4700kg limit is the total "wet weight." You must account for the loader, the operator, a full tank of fuel, and any attachments like 4-in-1 buckets or trenchers.

• Can I use these with steel-tracked loaders? No. These ramps are designed strictly for rubber tracks and pneumatic tyres. Steel tracks will gouge and weaken the aluminium rungs, which could lead to structural failure.

• Are these ramps easy to clean? Yes, the open-rung design allows mud, dirt, and debris to fall through. A quick spray with a hose after use will keep the traction surface clear and effective.

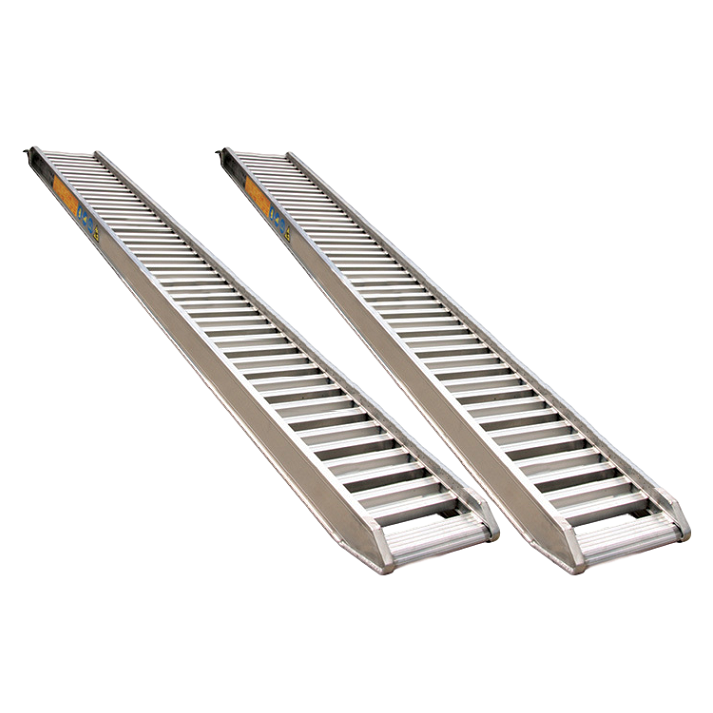

Digga 4.7T Aluminium Loading Ramps Posi Track

Suitable for Posi Track, Multi Terrain Loaders and Excavators

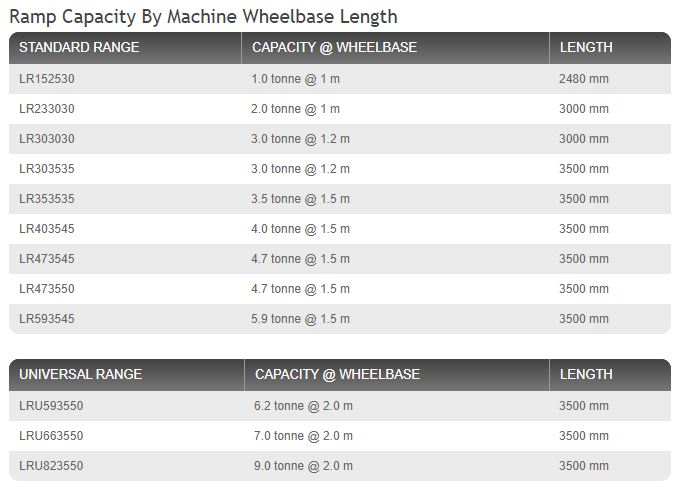

Combined Capacity: 4700Kg

Beam Height: 165mm

Width Internal: 500mm

Width External: 560mm

Weight: 51Kg ea

Overall Length: 3.5m

Includes: 2x Aluminium loading ramps with location pins and clips

Part #: LR473550
