Digga 3T Aluminium Loading Ramps 3.5m Long

Digga 3t Aluminium Loading Ramps (3.5m Long)

Product Description The Digga 3t Aluminium Loading Ramps in the 3.5-metre configuration offer an extended reach, making them the ideal solution for loading machinery onto higher truck trays or trailers. The extra length provides a shallower, safer gradient, which is essential for maintaining stability when loading mini excavators and loaders up to 3000kg. Manufactured from high-tensile structural aluminium, these ramps remain surprisingly manageable despite their increased length. Specifically designed for rubber tracks and pneumatic tyres, they feature a precision-engineered rung system that delivers maximum traction and a smooth transition from ground to deck.

Product Features

• Extended 3.5m Length: Provides a shallower loading angle, ideal for higher vehicle decks and increased safety.

• 3-Tonne Combined Capacity: Safely supports machines with a total combined weight of up to 3000kg.

• High-Grade Aluminium: Offers exceptional durability and strength-to-weight ratio; resistant to rust and corrosion.

• Rubber-Track Traction: Rungs are specifically profiled to provide a high-grip surface for rubber tracks and tyres.

• Safety Pin Locking System: Includes heavy-duty pins to securely lock the ramps to your trailer or truck, preventing kick-out.

• Tapered Foot Design: Engineered for a seamless ground-to-ramp transition, reducing impact on the machine's tracks or tyres.

Frequently Asked Questions

• Why should I choose the 3.5m ramps over shorter models? The 3.5m length is specifically designed for higher transport vehicles. The longer span creates a more gradual incline, which is safer for the operator and reduces the strain on the machine's drive motors during loading.

• Will these ramps suit a 3-tonne machine? Yes, provided the total "wet weight" (machine + operator + fuel + attachments) does not exceed 3000kg.

• Can I use these for machines with steel tracks? No. These ramps are strictly for use with rubber tracks and pneumatic tyres. Steel tracks will damage the aluminium rungs and void your warranty.

• Are they easy to move manually? While longer than standard ramps, the aluminium construction ensures they are significantly lighter than steel alternatives, though we recommend a two-person lift or proper manual handling techniques due to the 3.5m length.

• Will they fit in my truck? Always measure the length of your tray prior to purchasing ramps. If your tray is less than 3.5m from head board to tail gate when closed, opt for the 3m long 3t ramps.

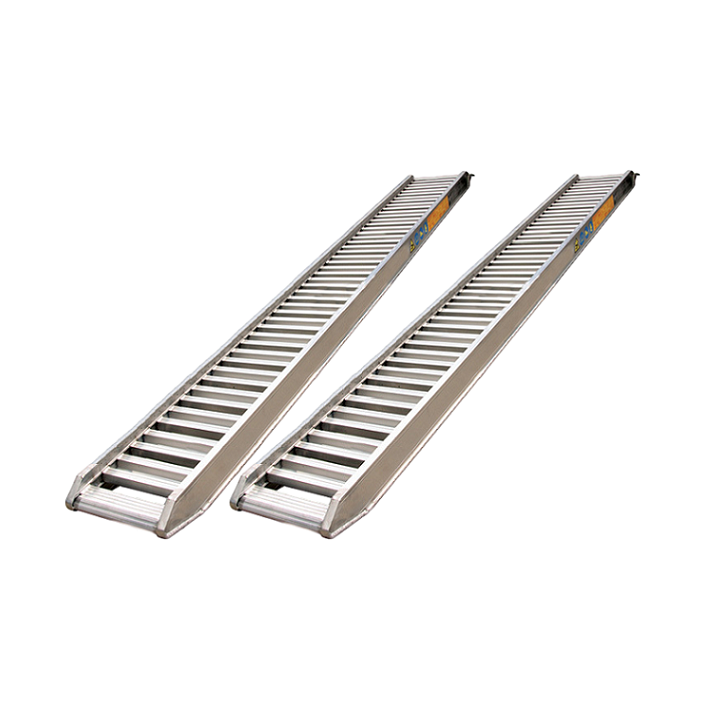

Digga 3T Aluminium Loading Ramps 3.5m long

Suitable for rubber tracked and rubber tyred machines

Combined Capacity: 3000Kg

Beam Height: 120mm

Width Internal: 350mm

Width External: 410mm

Weight: 36Kg ea

Overall Length: 3.5m

Includes: 2x Aluminium loading ramps with location pins and clips

Part #: LR303535
