Digga 32mm Double Pin Hitch for Auger Drives

Digga 32mm Double Pin Hitch for Auger Drives Choose from our range of Digga's Double Pin Hitches to suit mini excavators with 32mm pins. P = Pin Diameter C = Centre to Centre...

$535.00 AUD
GST is included in price. Shipping calculated at checkout.

MACHINE AND REQUIRED DIMENSIONS: CLICK HERE TO CHOOSE OPTION

MACHINE AND REQUIRED DIMENSIONS: CLICK HERE TO CHOOSE OPTION
WN 1703 or 2003 32P/130C/121E
JCB 2CX or MIDI CX 32P/231.5C/167E
OTHER 32P/???C/???E
Description

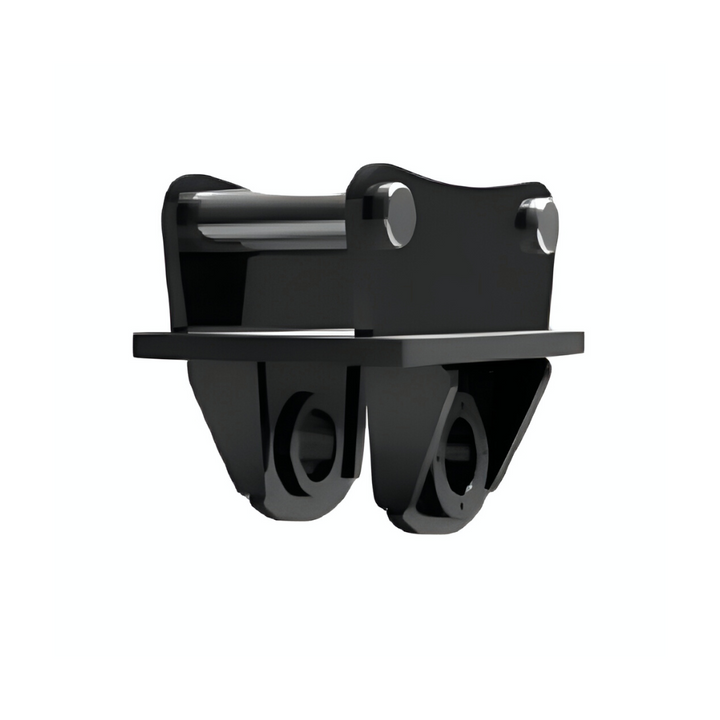

Digga 32mm Double Pin Hitch for Auger Drives

Choose from our range of Digga's Double Pin Hitches to suit mini excavators with 32mm pins.

P = Pin Diameter
C = Centre to Centre of Pins
E = Between the Ears/Bosses
JCB 2CX and JCB MIDI CX with 32P/231.5C/167E
WACKER NEUSON 1703 and 2003 with 32P/130C/121E
OTHER Make and Model ??P/??C/??E Please add your hitch specs at checkout

How to measure your hitch specs:

  1. Choose one of your attachments.
  2. Measure the Pin Diameters. Check both front and back pins.
  3. Measure the pin centres. From the centre of the front pin to the centre of the back pin.
  4. Measure the width where the hitch of the machine fits between the ears or bosses. Which ever is narrowest.

Please note that ear widths shown above maybe slightly wider than your measurement. This is to allow ease of picking up your auger drive because it is on a Link Block and may move whilst attempting to it pick up.

How to measure your hitch specs
