Core Barrels to suit 22-35T Machines - Super Heavy Duty

From $3,589.00 AUD
GST is included in price. Shipping calculated at checkout.

Core Barrel Options: Choose an option

Core Barrel Options: Choose an option
Core Barrel - 400MM CORE - 25MM WALL
Core Barrel - 450MM CORE - 25MM WALL
Core Barrel - 500MM CORE - 25MM WALL
Core Barrel - 600MM CORE - 25MM WALL
Core Barrel - 750MM CORE - 25MM WALL
Core Barrel - 900MM CORE - 25MM WALL
Core Barrel - 1000MM CORE - 25MM WALL
Core Barrel - 1050MM CORE - 25MM WALL
Core Barrel - 1200MM CORE - 25MM WALL
Core Barrel - 1500MM CORE - 25MM WALL
Core Barrel - 1800MM CORE - 25MM WALL0
Core Barrel - 2000MM CORE - 25MM WALL
Description

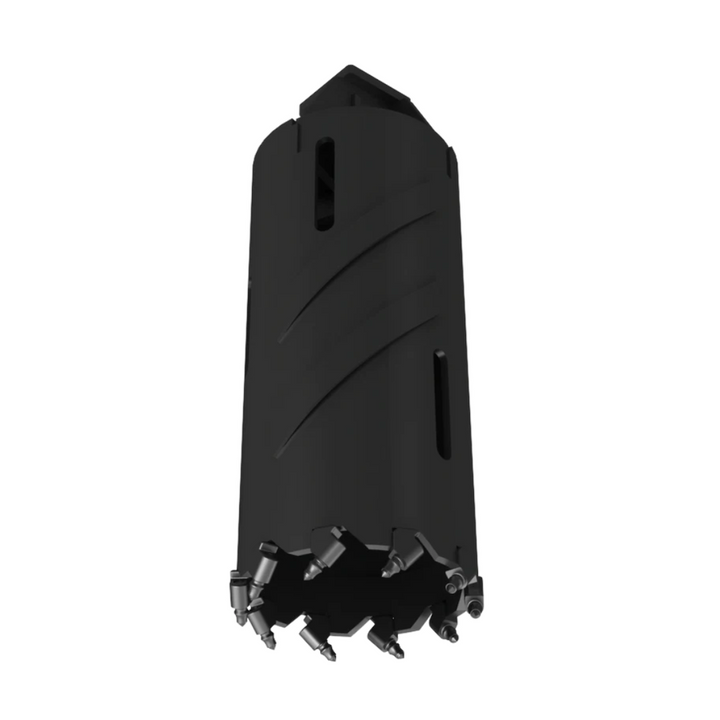

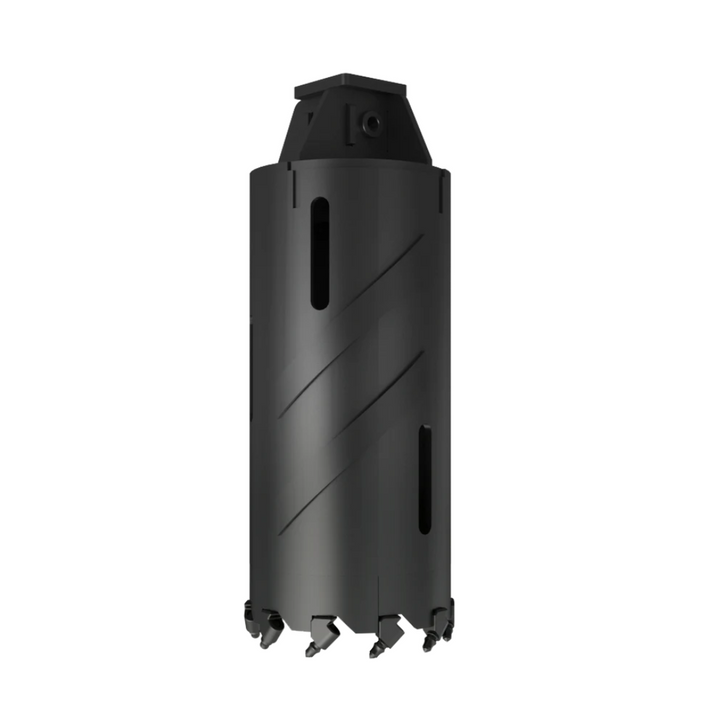

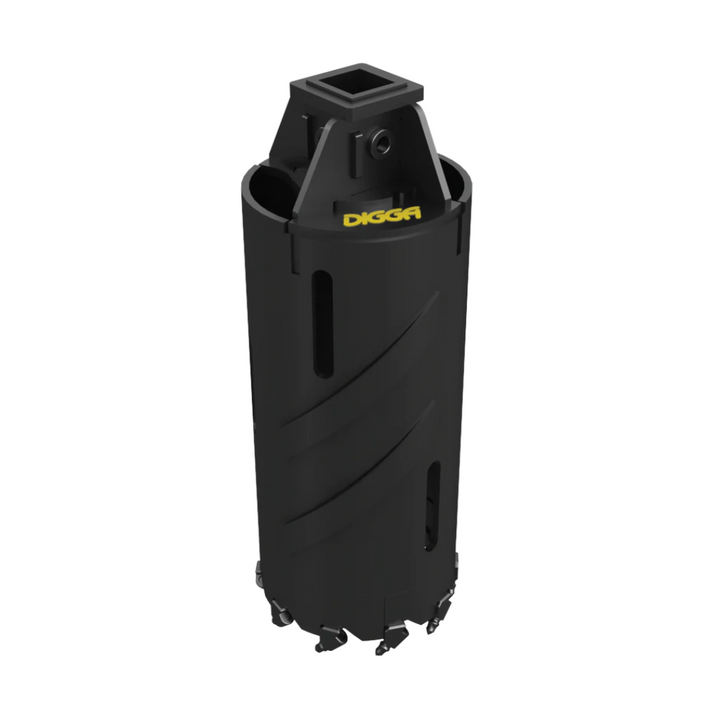

Core Barrels to suit 22-35T Machines - Super Heavy Duty

The Digga Core Barrels are suitable for Excavators from 22 - 35T and are used for very hard rock drilling. They are made from the highest grade of metal and designed with a thin cutting edge to maximise the penetration rate through less contact surface area having to be cut and removed.  The Super Heavy Duty Core Barrel has a 25mm Rotating Rock Pick and 25mm Wall Thickness.

Features and benefits of Digga Core Barrels:

  • Suitable for excavators from 22-35T
  • Designed for very hard rock drilling
  • Made from the highest grade of metal
  • Thin cutting edge for maximized penetration rate
  • Heavy Duty Core Barrel has a 25mm rotating rock pick and 25mm wall thickness
  • Available in diameters from 300mm to 2000mm
  • Comes fitted with a Kelly Box (drive hub)
  • Heavy-duty (HD) base ring
  • Provision for reamer bars
  • Wear ribs extend barrel life and eliminate barrel stalling


Core barrels are built to order. Please contact us for more details

Package Variants
Core Barrel Options

Core Barrel - 400MM CORE - 25MM WALL, Core Barrel - 450MM CORE - 25MM WALL, Core Barrel - 500MM CORE - 25MM WALL, Core Barrel - 600MM CORE - 25MM WALL, Core Barrel - 750MM CORE - 25MM WALL, Core Barrel - 900MM CORE - 25MM WALL, Core Barrel - 1000MM CORE - 25MM WALL, Core Barrel - 1050MM CORE - 25MM WALL, Core Barrel - 1200MM CORE - 25MM WALL, Core Barrel - 1500MM CORE - 25MM WALL, Core Barrel - 1800MM CORE - 25MM WALL0, Core Barrel - 2000MM CORE - 25MM WALL
