Core Barrels to suit 18-30T Machines - Heavy Duty
Core Barrels to suit 18-30T Machines - Heavy Duty

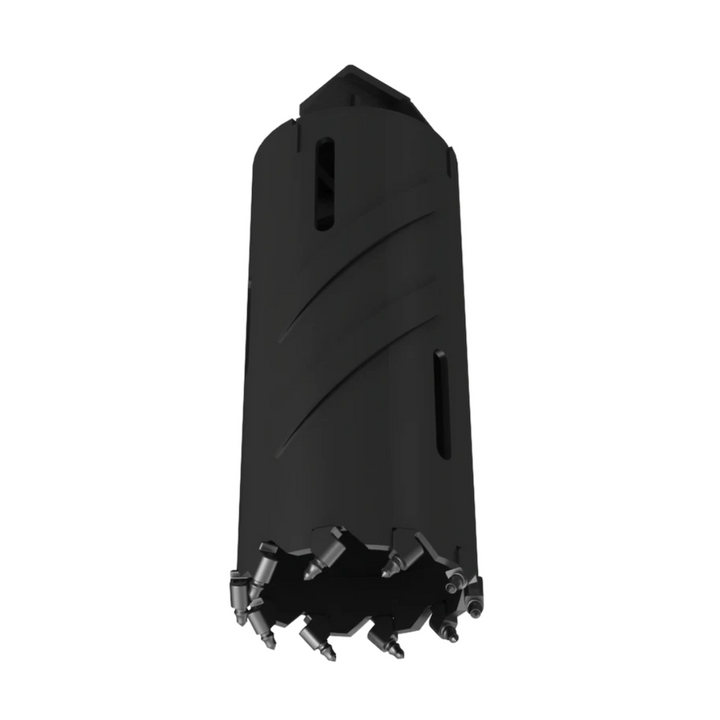

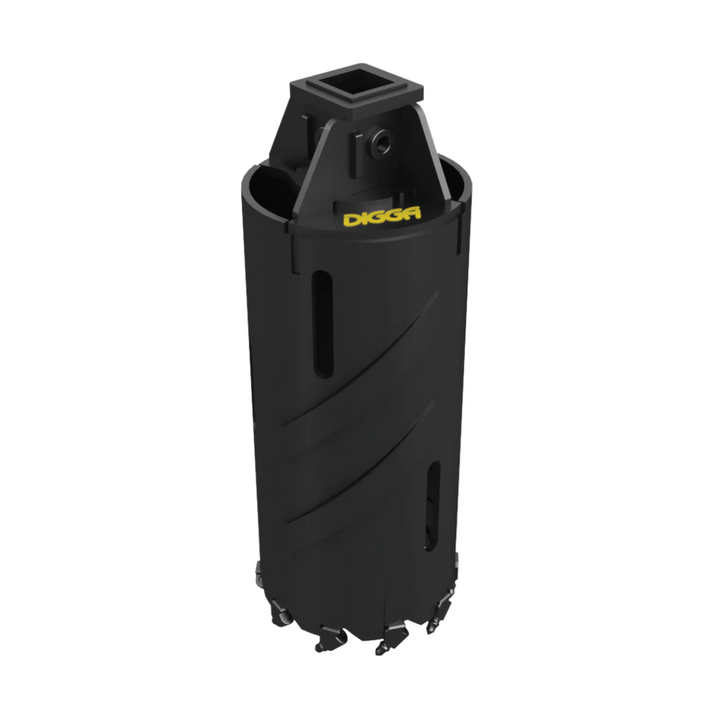

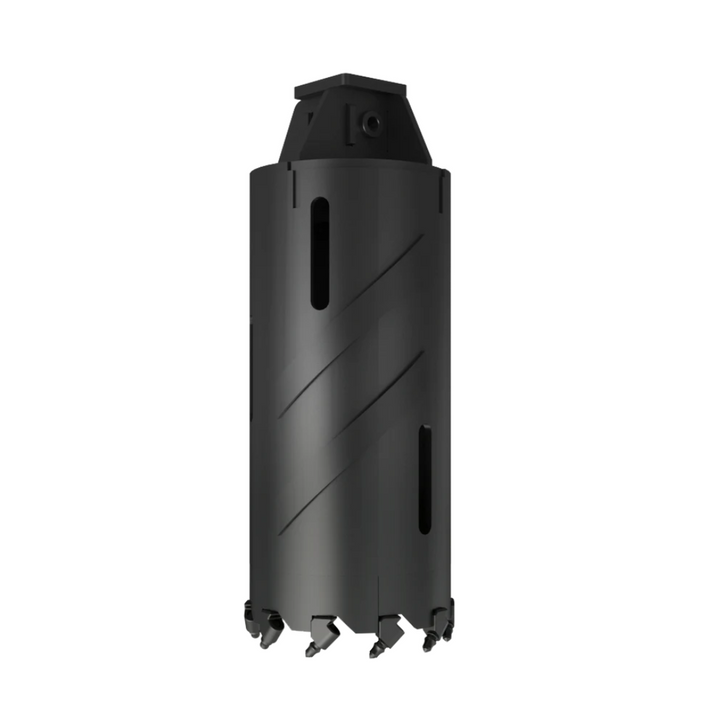

The Digga Core Barrels are suitable for Excavators from 18 - 30T and are used for very hard rock drilling. They are made from the highest grade of metal and designed with a thin cutting edge to maximise the penetration rate through less contact surface area having to be cut and removed. The Heavy Duty Core Barrel has a 25mm Rotating Rock Pick and 20mm Wall Thickness
Digga Core Barrels range from 300mm - 2000mm in diameter and come fitted with a Kelly Box (drive hub) to suit your machine. Standard (STD) & heavy duty (HD) base ring options are available
Features and benefits of Digga Core Barrels:
- Suitable for excavators from 18-30T
- Designed for very hard rock drilling
- Made from the highest grade of metal
- Thin cutting edge for maximized penetration rate
- Heavy Duty Core Barrel has a 25mm rotating rock pick and 20mm wall thickness
- Available in diameters from 300mm to 2000mm
- Comes fitted with a Kelly Box (drive hub)
- Standard (STD) and heavy-duty (HD) base ring options are available
- Provision for reamer bars
- Wear ribs extend barrel life and eliminate barrel stalling
Core barrels are built to order. Please contact us for more details
| Core Barrel Options |
Core Barrel 18-30T - 300MM CORE - 20MM WALL, Core Barrel 18-30T - 400MM CORE - 20MM WALL, Core Barrel 18-30T - 450MM CORE - 20MM WALL, Core Barrel 18-30T - 500MM CORE - 20MM WALL, Core Barrel 18-30T - 600MM CORE - 20MM WALL, Core Barrel 18-30T - 750MM CORE - 20MM WALL, Core Barrel 18-30T - 900MM CORE - 20MM WALL, Core Barrel 18-30T - 1000MM CORE - 20MM WALL, Core Barrel 18-30T - 1200MM CORE - 20MM WALL, Core Barrel 18-30T - 1500MM CORE - 20MM WALL, Core Barrel 18-30T - 1800MM CORE - 20MM WALL, Core Barrel 18-30T - 2000MM CORE - 20MM WALL |
|---|
