EarthQuake AD3500 Auger Drive Combo Package for 3 - 4 Tonne Mini Excavators

$3,995.00 AUDFrom $3,790.00 AUD
GST is included in price. Shipping calculated at checkout.

Auger Sizes: CLICK HERE TO CHOOSE OPTION

Auger Sizes: CLICK HERE TO CHOOSE OPTION
200 + 300
200 + 450
300 + 450
300 + 600
450 + 600
200 + 300 + 450
200 + 300 + 600
200 + 450 + 600
300 + 450 + 600
200 + 300 + 450 + 600
Description

EarthQuake AD3500 Auger Drive

Backed by the Earthquake 5+3 Year Warranty

Oil Pressure Range 80 - 240 Bar
Torque Range 1205 - 3604 Nm
Oil Flow Range 40 - 85 lpm
Speed Range 42 - 90 rpm

Dimensions:

Height: 665 mm
Width: 244 mm
Weight: 73 kg
The perfect choice for small excavators between 3T-4T

EarthQuake S4 200mm Auger - Tungsten Pilot and Teeth

Earthquake S4 200mm
65mm Round
Multi Facet Tungsten Pilot
Multi Facet Tungsten Teeth
Overall Length:1200mm

EarthQuake S4 300mm Auger - Tungsten Pilot and Teeth

Earthquake S4 300mm
65mm Round
Multi Facet Tungsten Pilot
Multi Facet Tungsten Teeth
Overall Length:1200mm

EarthQuake S4 450mm Auger - Tungsten Pilot and Teeth

Earthquake S4 450mm
65mm Round
Multi Facet Tungsten Pilot
Multi Facet Tungsten Teeth
Overall Length: 1200mm

EarthQuake S4 600mm Auger - Tungsten Pilot and Teeth

Earthquake S4 600mm
65mm Round
Multi Facet Tungsten Pilot
Multi Facet Tungsten Teeth
Overall Length: 1200mm

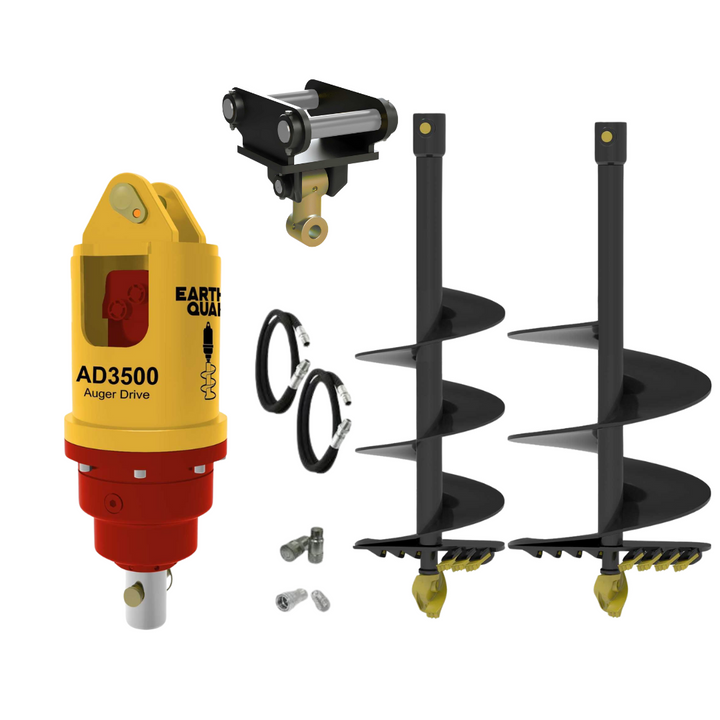

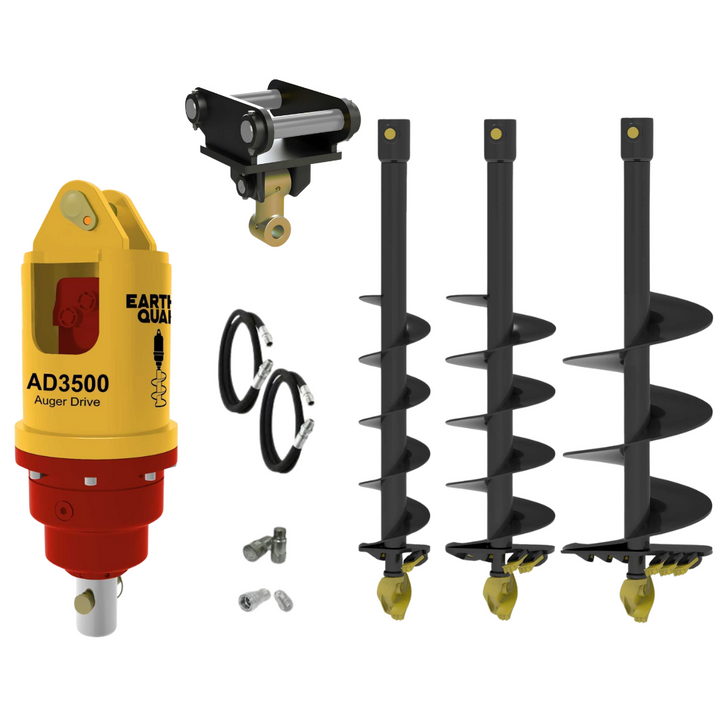

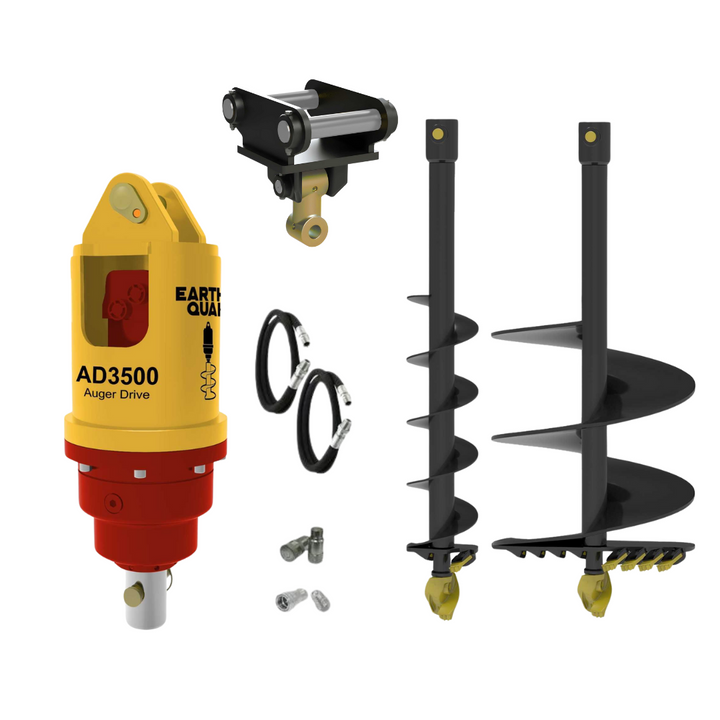

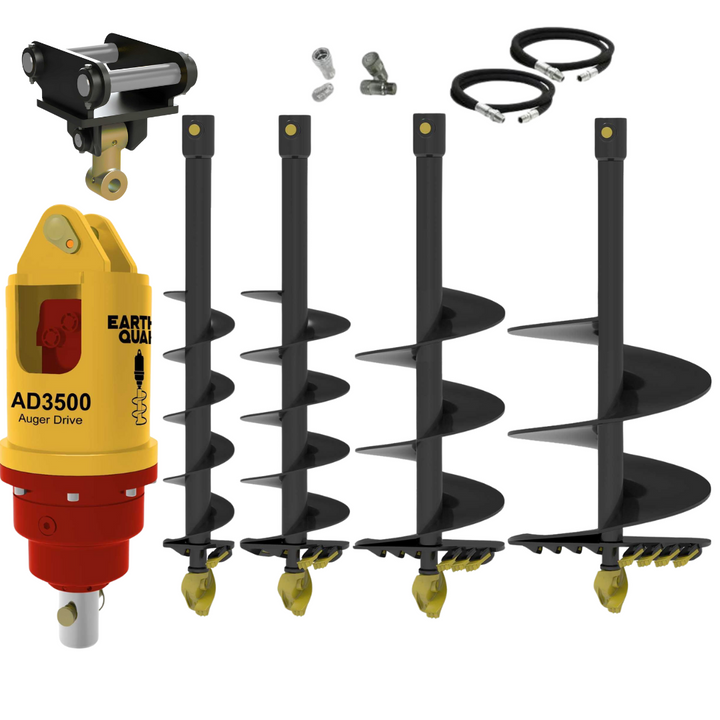

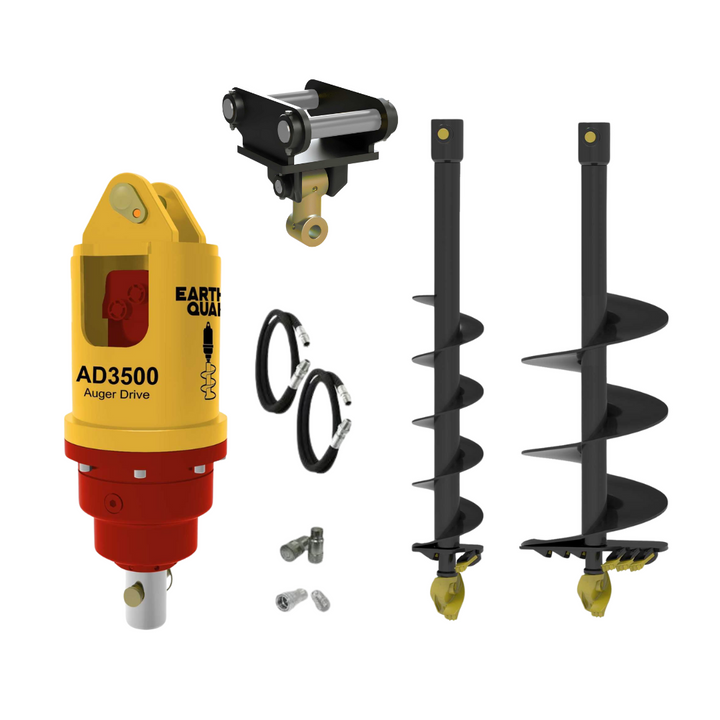

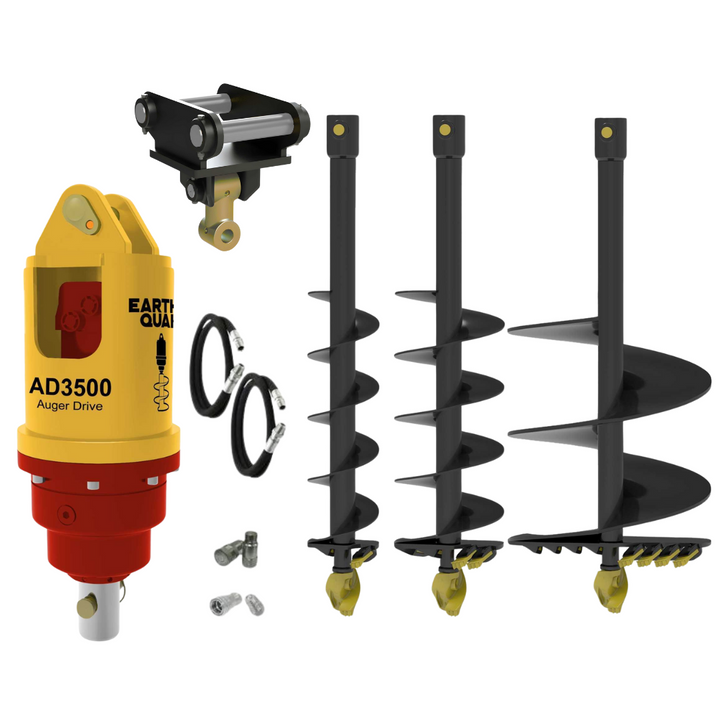

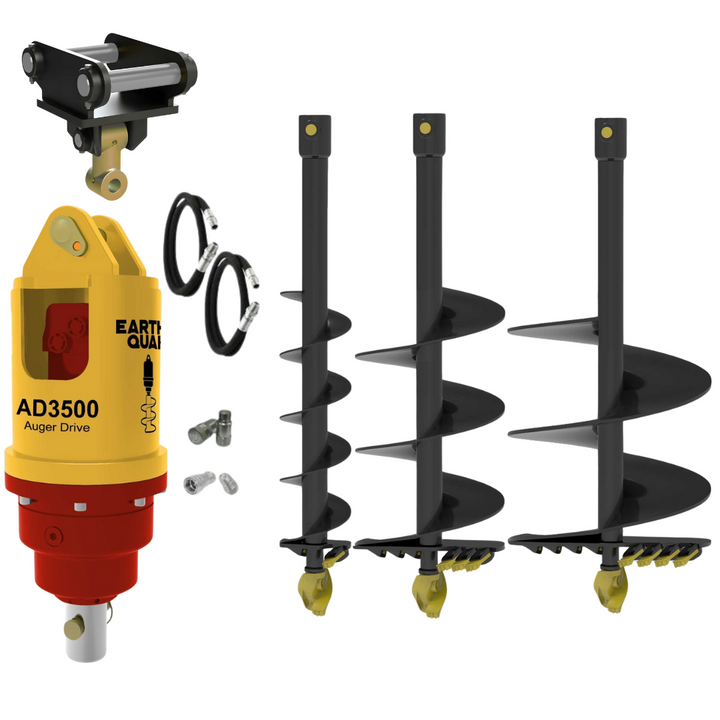

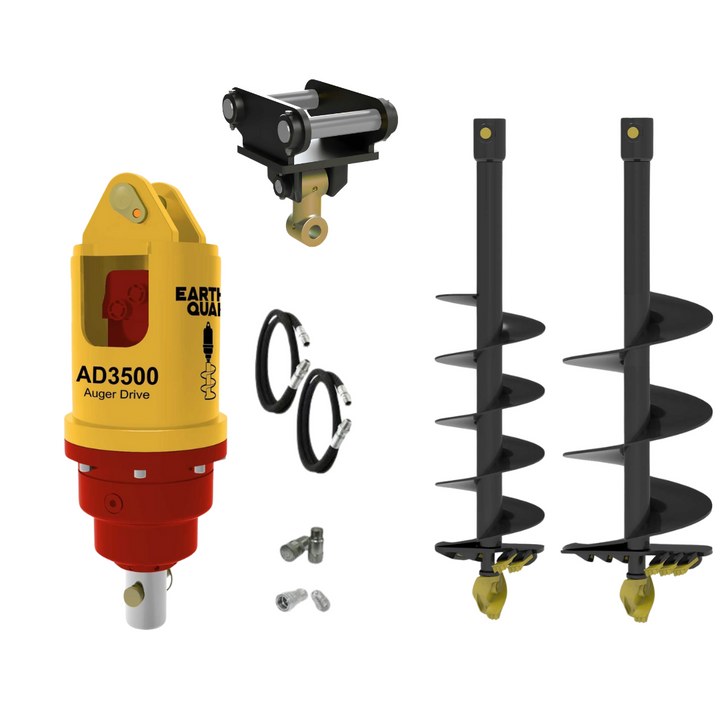

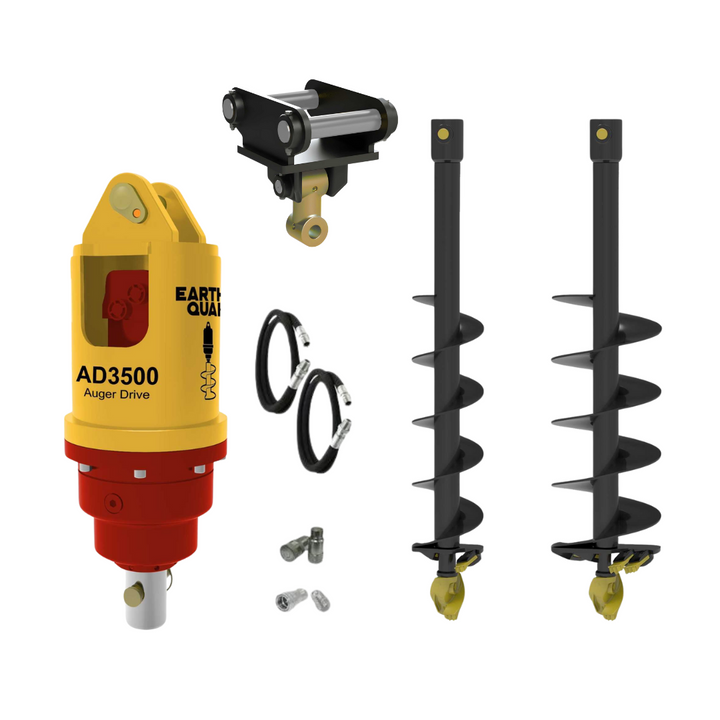

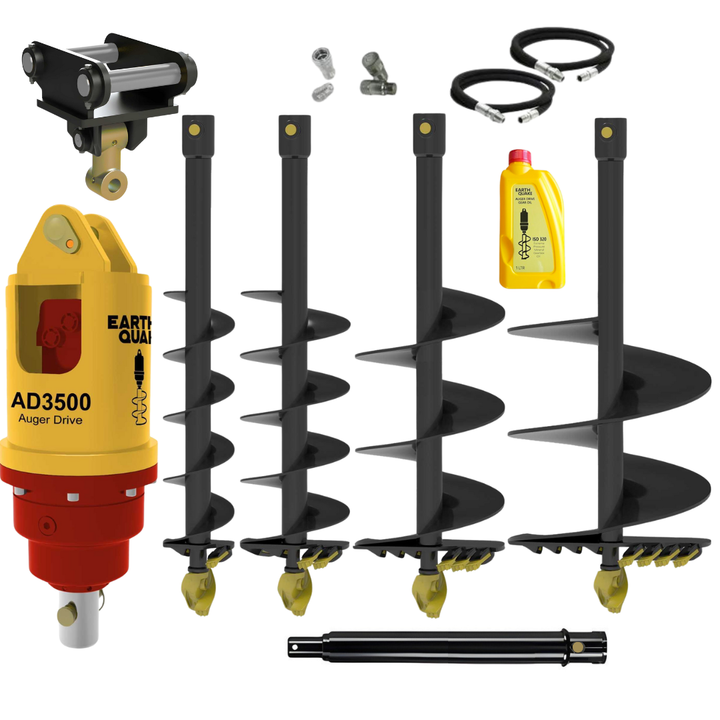

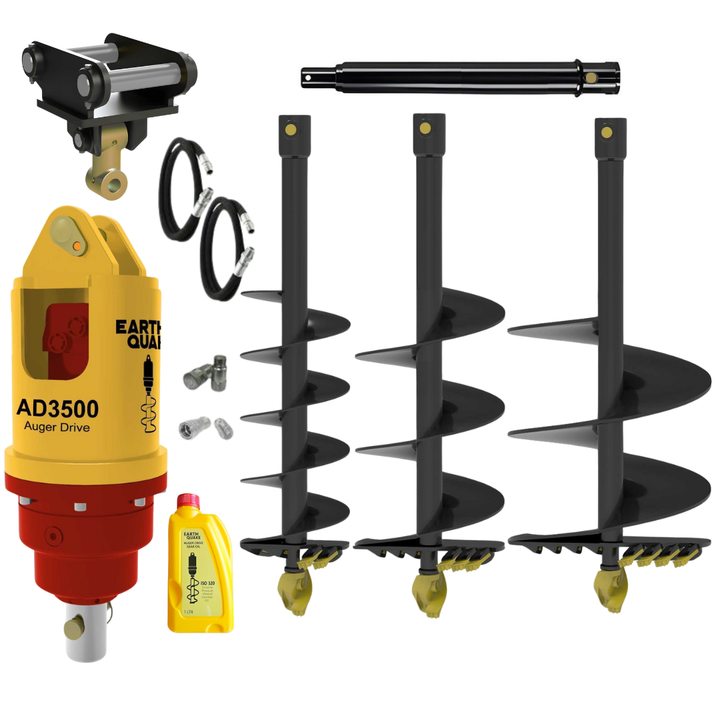

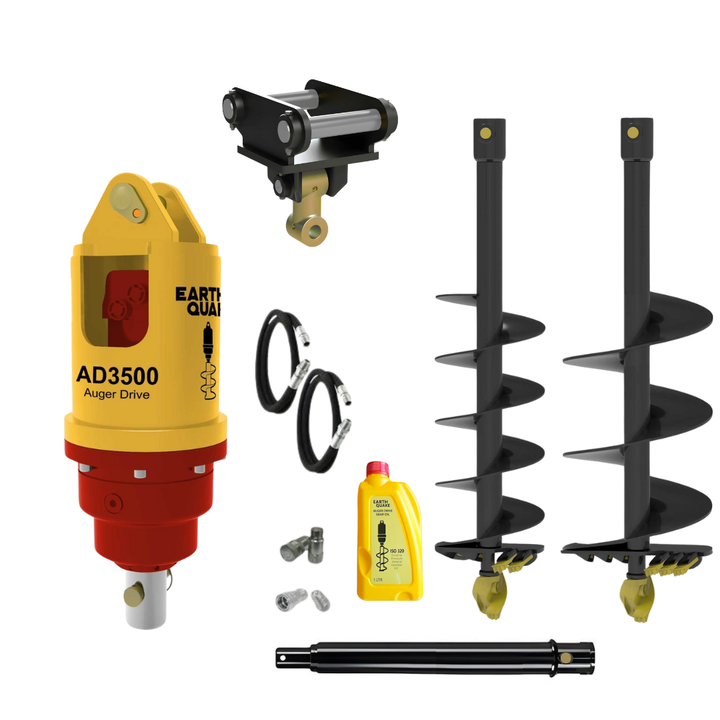

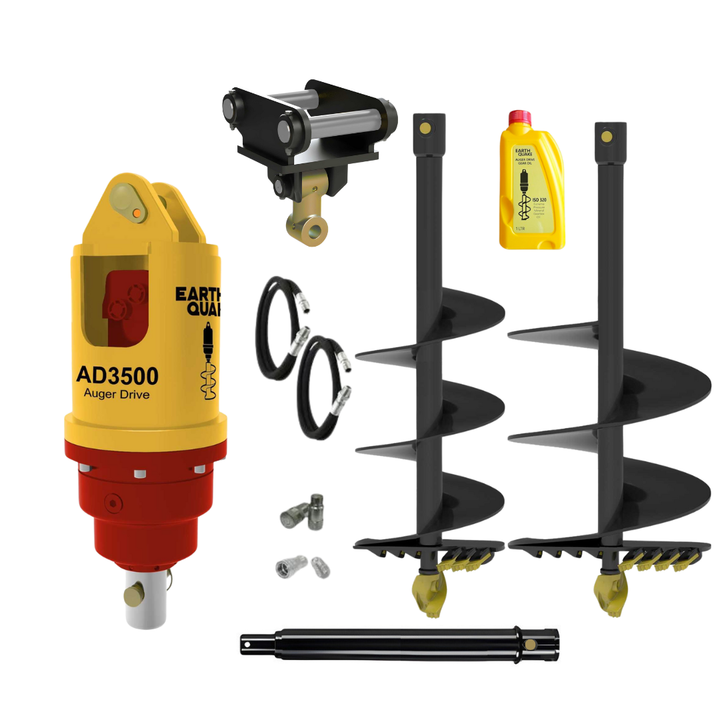

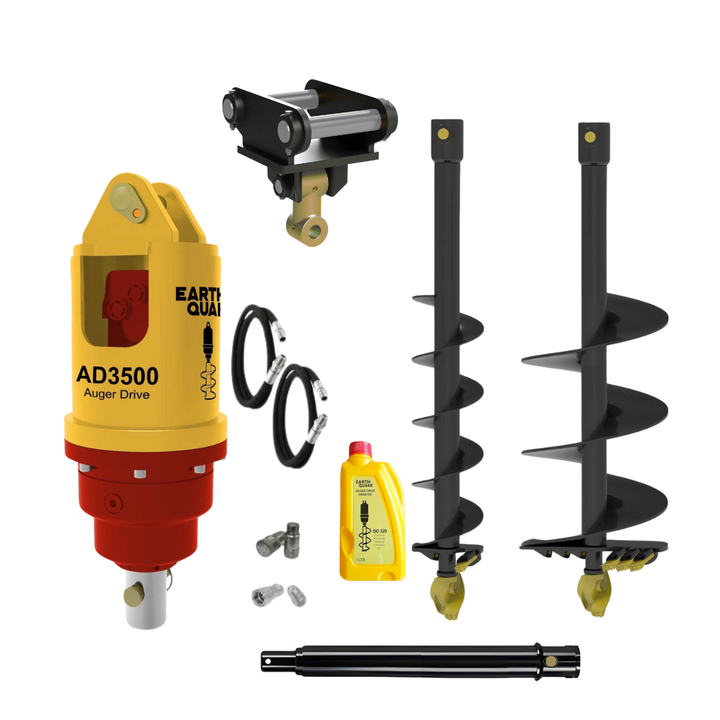

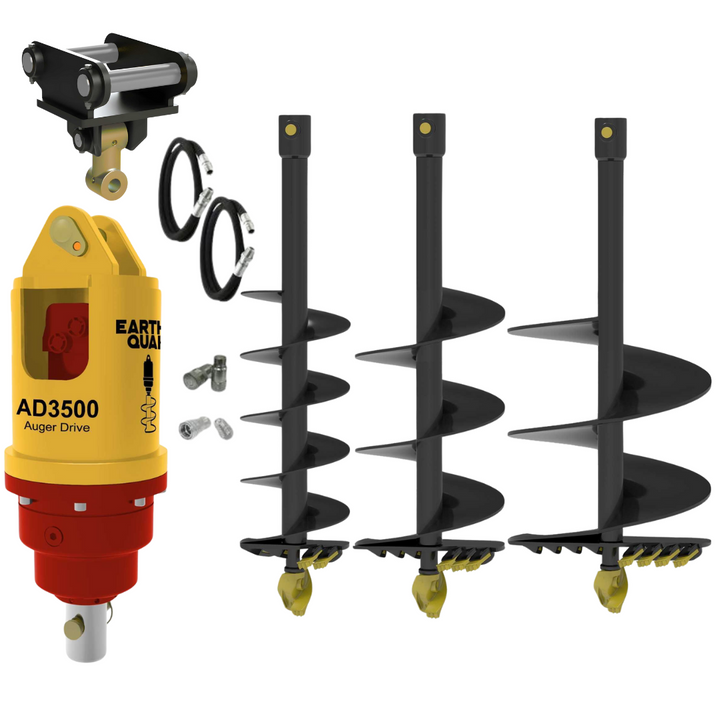

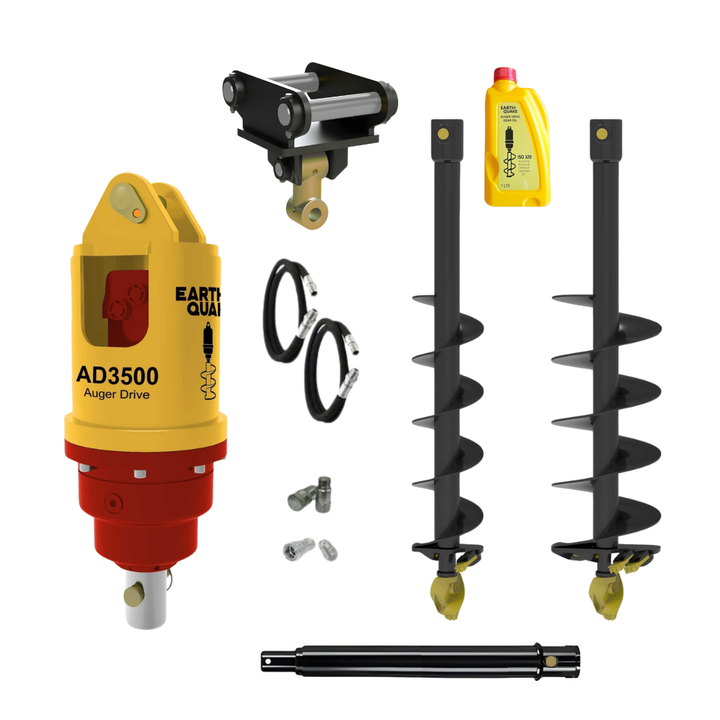

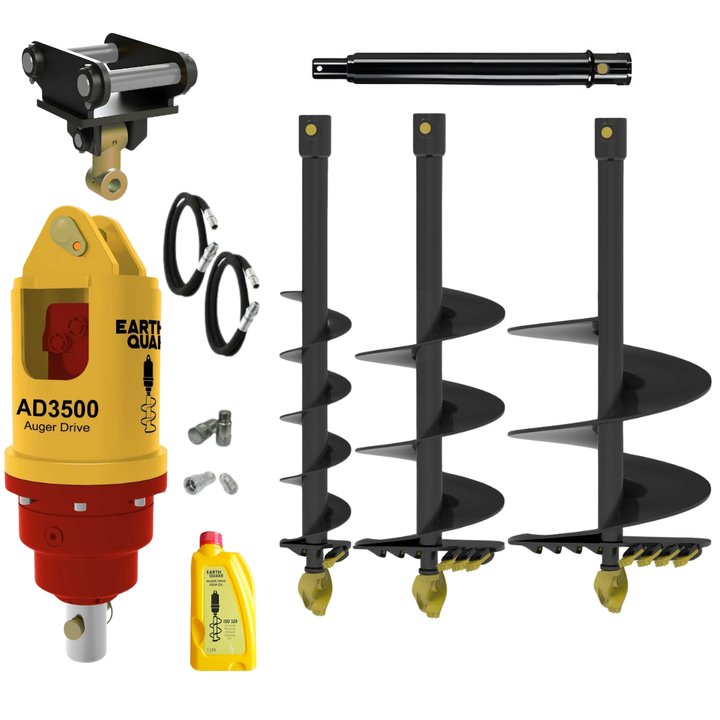

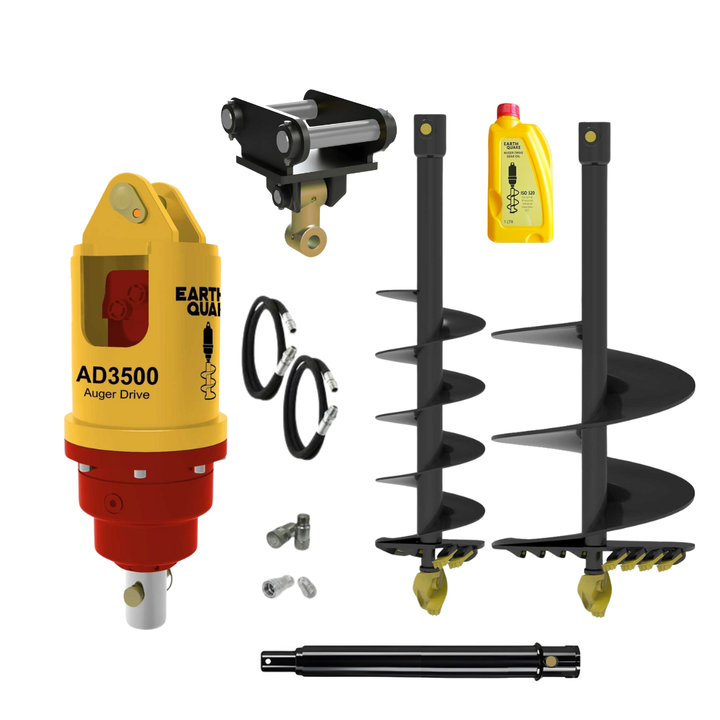

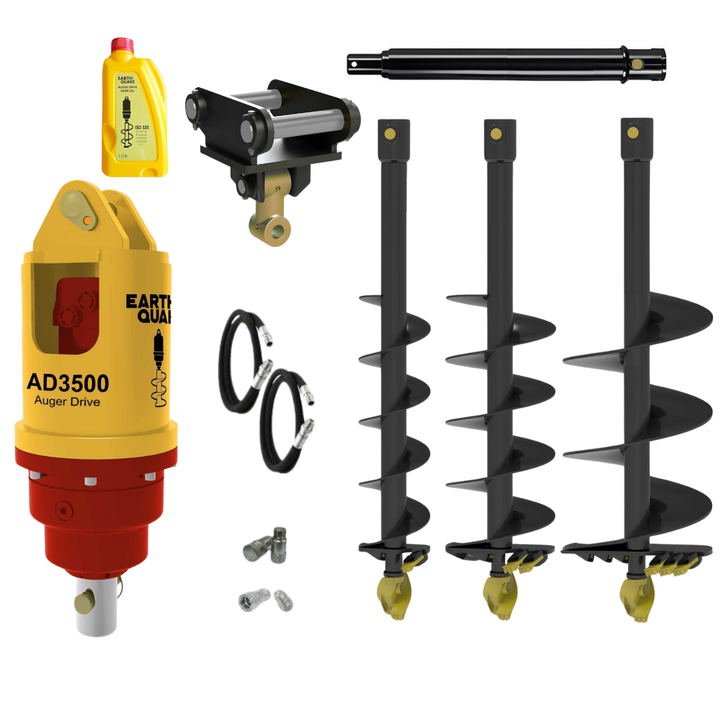

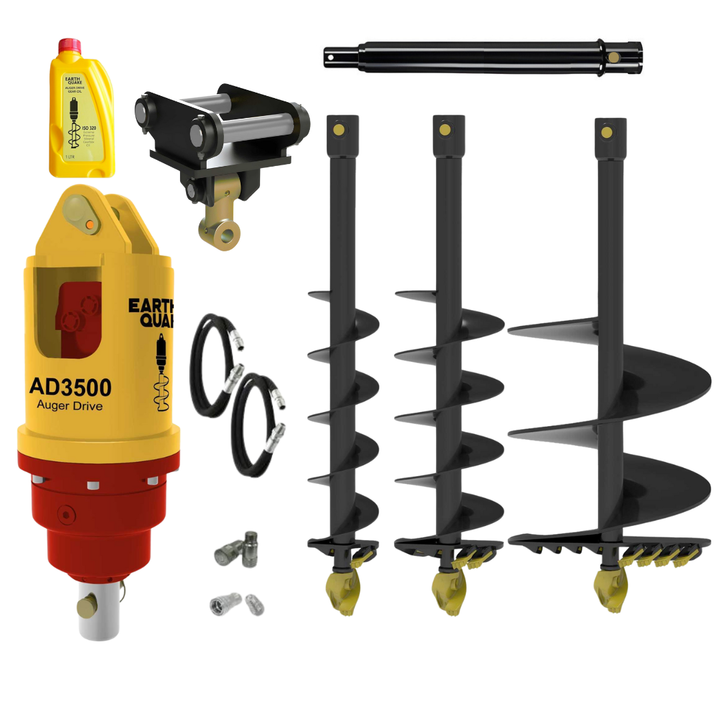

All Packages includes:

1x Earthquake AD3500 Auger Drive

1x Link Block

1x Pair of Hydraulic Hoses

1x Pair of Hydraulic Couplers to suit your machine

1x Double Pin Hitch to suit your machine

Your choice of augers in 2x, 3x or 4x auger combination. Select your combo from the dropdown box.

Note: All Earthquake Auger Drives come with oil in the gearbox. The 1ltr of EQ Gearbox Oil is supplied for your 1st oil change, and is recommended between the first 30 and 50 hours.

WARRANTY

For peace of mind on your digging projects, all Earthquake auger drives come with a reassuring 5+3 year warranty. This comprehensive coverage demonstrates Earthquake's commitment to quality and durability.

You can rely on a solid 5-year warranty for the gearbox, the core of the auger's power transmission, and an additional 3-year warranty specifically for the motor, ensuring reliable performance season after season. This extended warranty underscores the robust construction and engineering of Earthquake auger drives, offering you confidence in your investment.



Package Variants
Auger Sizes

200 + 300, 200 + 450, 300 + 450, 300 + 600, 450 + 600, 200 + 300 + 450, 200 + 300 + 600, 200 + 450 + 600, 300 + 450 + 600, 200 + 300 + 450 + 600
