Angle Broom Manual Pivot Skid Steer Loader (Standard Flow) & Tractors

From $7,029.00 AUD
GST is included in price. Shipping calculated at checkout.

Angle Broom Width: Choose an option

Angle Broom Width: Choose an option
Multi Fit 1800mm Poly
Multi Fit 2000mm Poly
Multi Fit 2500mm Poly
Multi Fit 1800mm Poly - Hydraulic Pivot - Dual Remote
Multi Fit 2000mm Poly - Hydraulic Pivot - Dual Remote
Multi Fit 2500mm Poly - Hydraulic Pivot - Dual Remote
Multi Fit 1800mm Poly - Hydraulic Pivot - Single Remote
Multi Fit 2000mm Poly - Hydraulic Pivot - Single Remote
Multi Fit 2500mm Poly - Hydraulic Pivot - Single Remote
Description

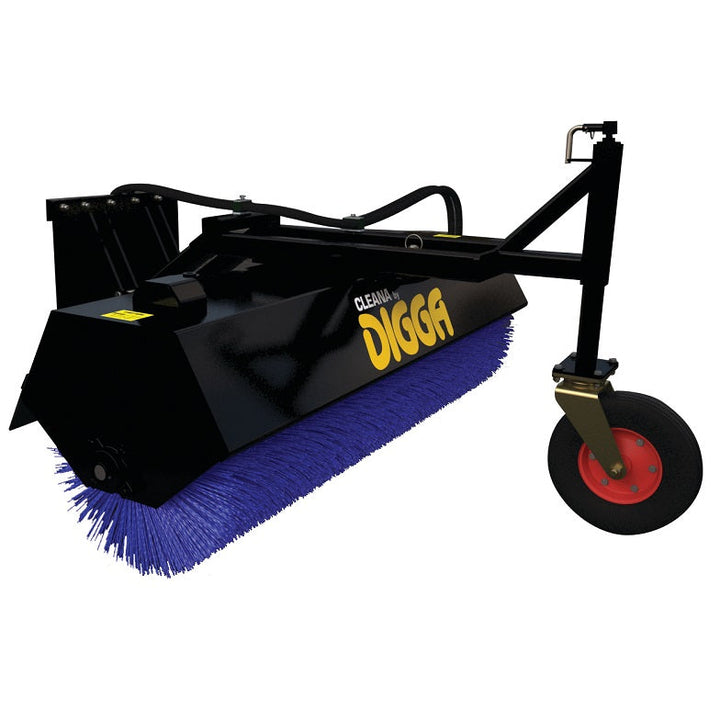

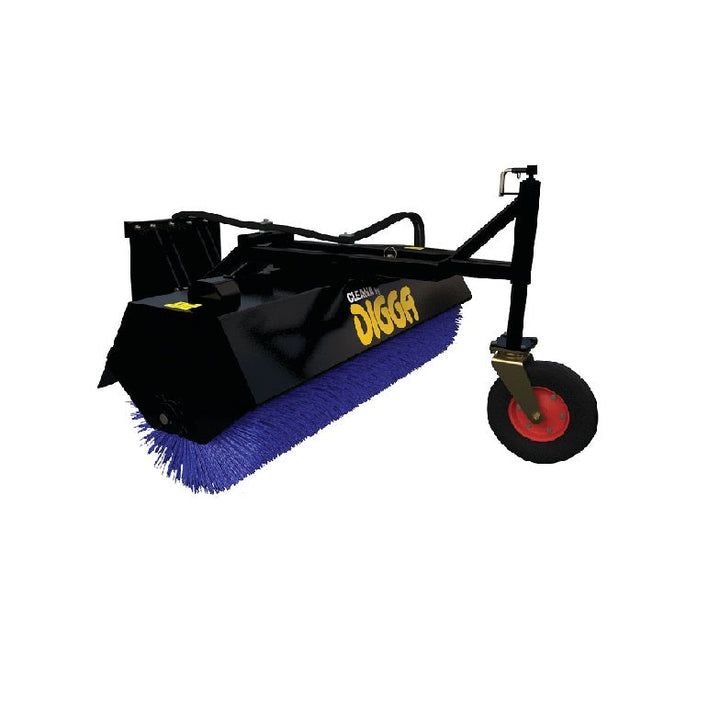

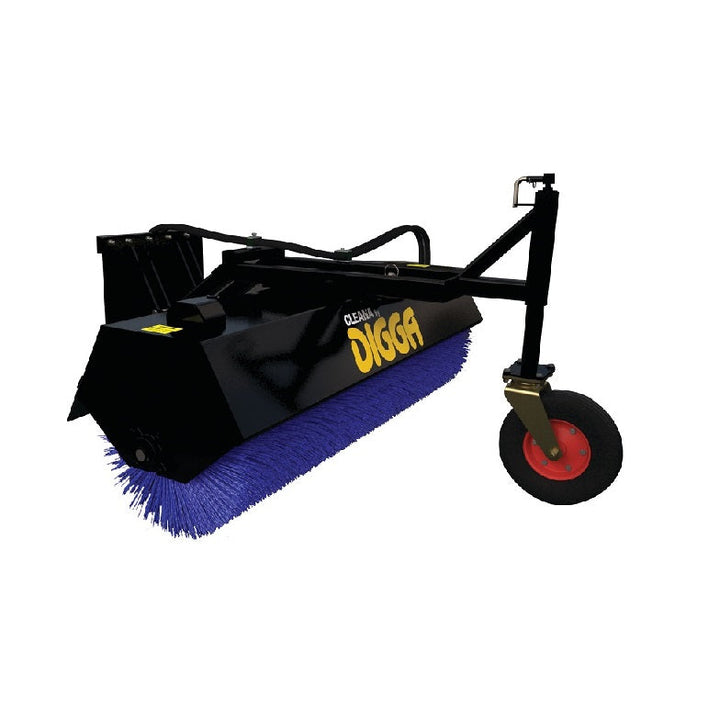

Angle Broom (Manual Pivot) suits all makes and models of Skid Steer Loaders and many Tractors.  They are also available in Hydraulic Pivot for Dual Remote Machines and Hydraulic Pivot for Single Remote Machines.

PROUDLY PRODUCED AND MANUFACTURED IN AUSTRALIA

"Plug and Play" Package includes:

1x Angle Broom
1x Jockey Wheel
1x Hoses and couplers (poppet or flat faced)
1x Standard frame (Non-Standard frames are also available)

    The Open Face Skid Steers Bucket Broom sweeps right up against structures, walls and gutters to collect a variety of debris in both outdoor (car parks, road construction, stock yards) and indoor (factory, warehouse, shipping containers) settings.

    Features:

    • Forward and Reverse broom action
    • Easy to use
    • Adjustable heavy duty Jockey Wheel
    • Bi-directional slew
    • Easily adjustable support legs
    • Replaceable long life poly brush
    • Longer brush life
    • Easy to empty

    Specifications:


    1800mm 2000mm 2500mm
    Rec Flow 30-75 lpm 30-75 lpm 30-75 lpm
    Max Press. 205 Bar 205 Bar 205 Bar
    Height  1116mm 1116mm 1116mm
    Width 2020mm 2220mm 2720mm
    Depth 2150mm 2150mm 2150mm
    Approx Weight  450kg 470kg 550kg
    Broom Width (at 15°) 738mm
    1931mm 2318mm
    Broom Width (at 30°) 1558mm
    1732mm 2078mm



    Pick up available from Brisbane, Gold Coast, Sydney or Melbourne
    Freight available Australia wide.
