Roo Attachments Grapple Bucket 16-17T

$9,665.00 AUD
GST is included in price. Shipping calculated at checkout.

Roo Attachments 16T to 17T hydraulic Grapple Bucket. The perfect attachments for handing debris, scrap removal, brush, landscaping, demolition and concrete piping work.

Weight: 850Kg
Width: 860mm
Opening: 1576mm
Includes hoses and couplers
*1/2 inch FF or Poppet* Couplers

Includes: Double Pin Hitch, Hoses and couplers of your choice.

Please provide machine make & model and hydraulic coupler type in Customer Comments

Checking your machines hitch specifications.

The pin layout of your machine is crucial especially for machines with Half Hitches (pull pin hitch).

Please choose the make your machine from the drop down menu and compare its hitch specs.

  • Pin Diameter = P
  • Pin Centres = C
  • Ear Width/Boss Width = E

Note that some machine models are made by a different manufacturer (OEM).

Examples of this include the early model Case CX17B which at the time was manufactured by Kobelco and being the SK17SR-2. Both have the same hitch specs.

Recently Yanmar have produced the Kobelco SK17SR-5 and -6 and the Case CX17C is now produced by Hyundai being the R17Z-9A.

So please review all hitch specs from the drop down menu and check measure all pin specs of your machine prior to purchasing.

If your machines hitch specs are not on the list please provide its specifications in the SPECIAL INSTRUCTIONS FOR SELLER on the first page of the checkout.

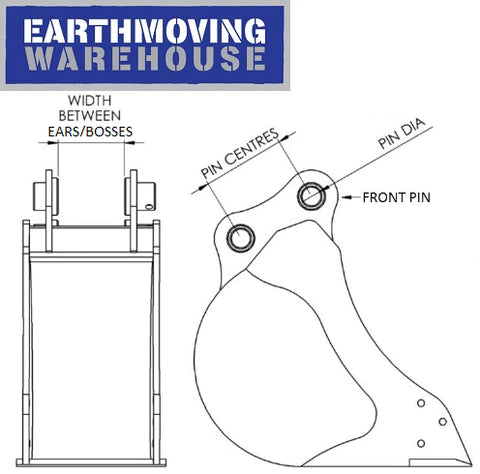

How to measure your hitch specs:

  1. Choose one of your attachments.
  2. Measure the Pin Diameters. Check both front and back pins.
  3. Measure the pin centres. From the centre of the front pin to the centre of the back pin.
  4. Measure the width where the hitch of the machine fits between the ears or bosses. Which ever is narrowest.

Other information required:

Please advise in the SPECIAL INSTRUCTIONS FOR SELLER section on the first page of the checkout;
1) Your machines hitch type: Half Hitch, Hydraulic Hitch or Tilting Hydraulic Hitch
This will help us determine what length of hose is required.

2) What type of hydraulic fittings you require
